Product Description

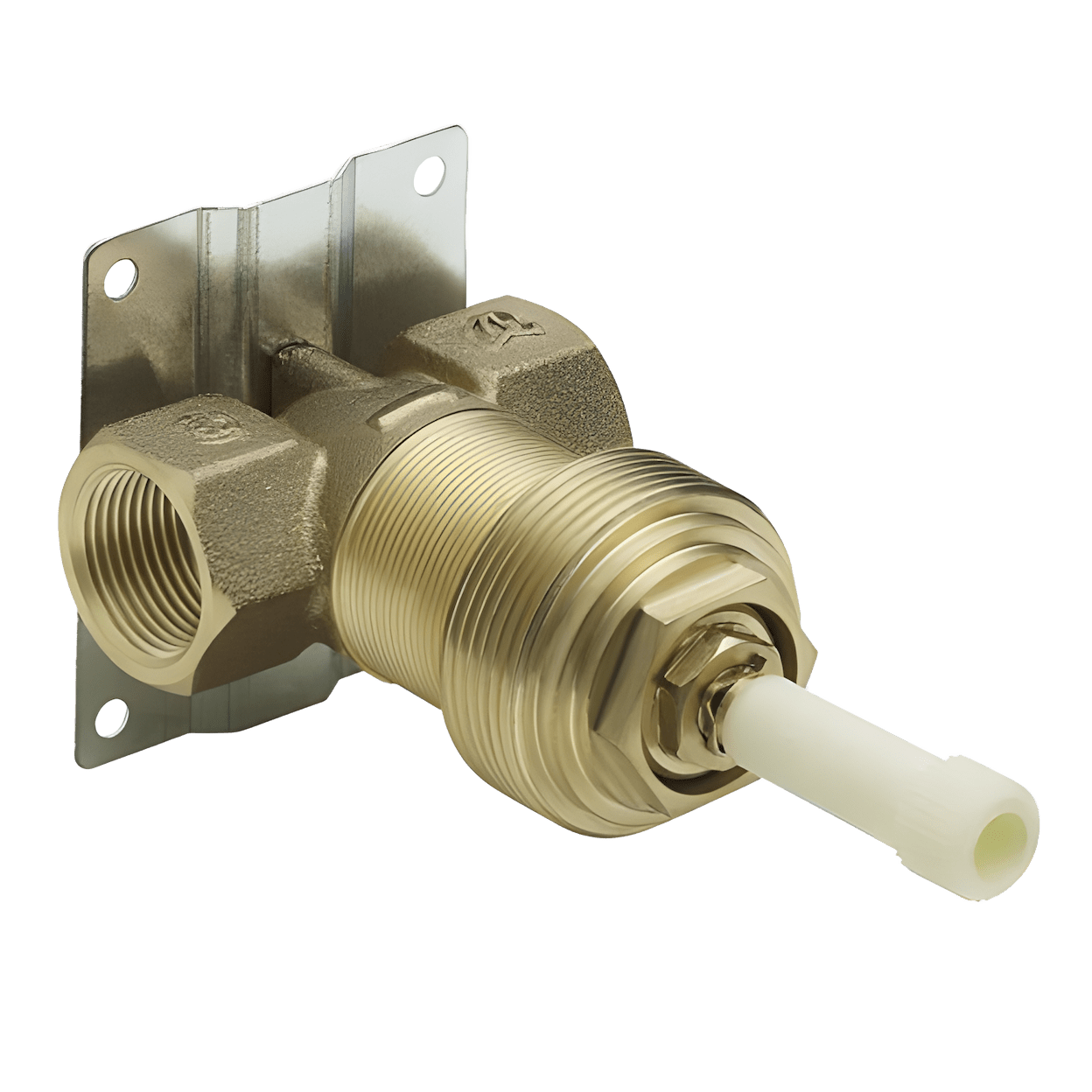

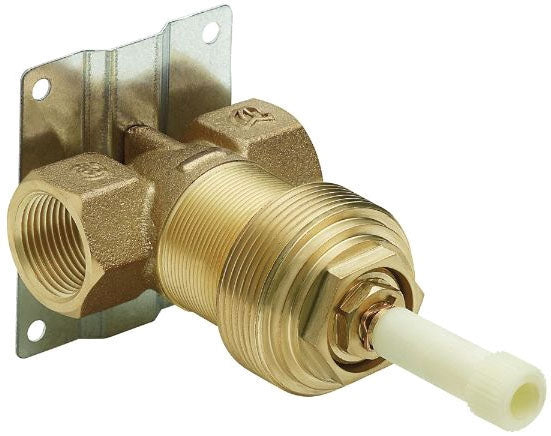

The Moen S3600 is a volume control valve designed for tub and shower installations with a three-quarter inch IPS connection. This valve is part of the Moen M-Pact Common Valve System, which allows for future faucet style updates without the need for plumbing modifications.
- Connection Size: 3/4 Inch IPS
- Brass construction for durability
- Flow Rate: 13 GPM at 60 PSI
Product Highlights
This valve is ideal for controlling water flow in both residential and commercial settings.
Product Information
Standard Information
-
Manufacturer: Moen
-
MPN: S3600
Technical Specifications
-
Type: Volume Control, Rough-In
-
Inlet Connection: IPS
-
Outlet Connection: 3/4 Inch IPS
-
Handle Type: Lever
-
Handle Material: Brass
-
Valve Material: Brass
-
Applicable Standards: ASME A112.18.1/CSA B125.1, ASSE 1016
-
Inclusions/Features: Ceramic Disc Cartridge, Volume Control
