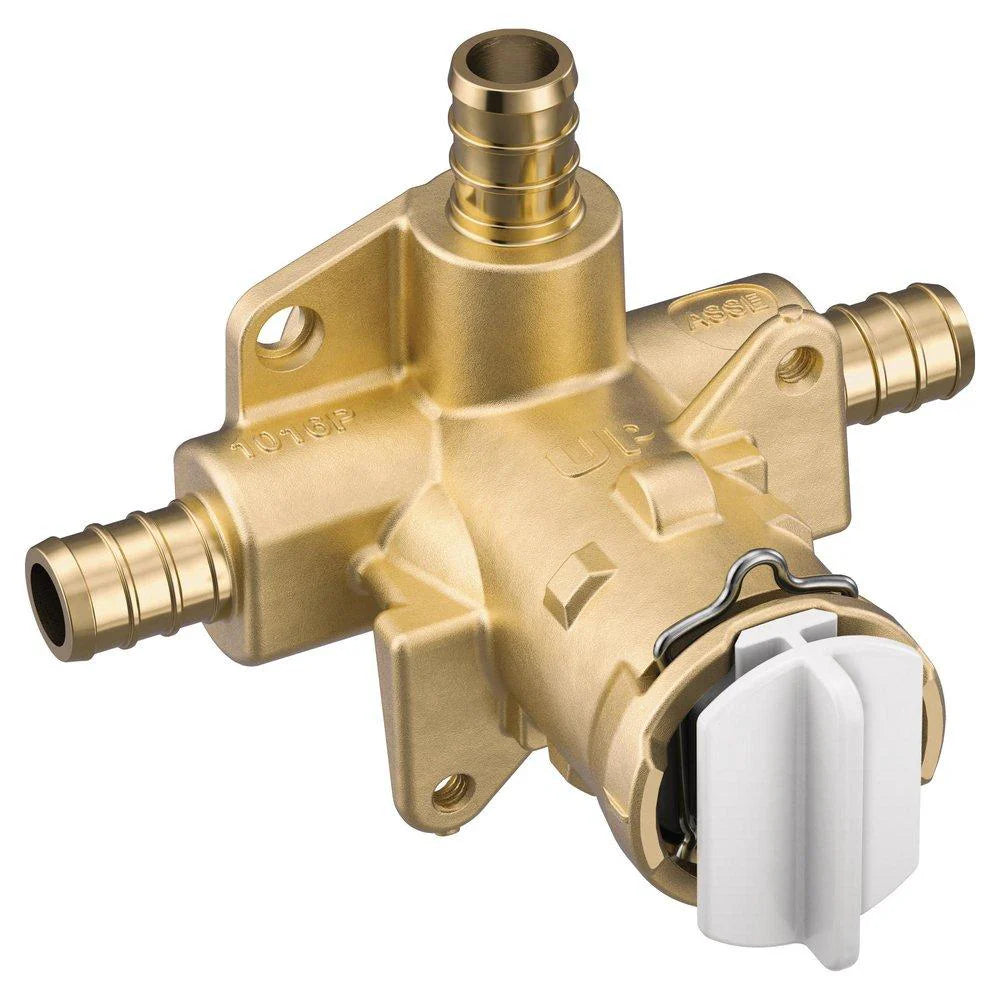

Moen FP62325PF Valve Press Balancing BRS Wall

Product Description

The Moen FP62325PF is a Posi-Temp pressure balancing valve designed for tub and shower installations. It features a crimp ring PEX inlet and outlet connection to provide reliable performance and easy installation. This valve ensures consistent water temperature and flow, maintaining comfort during use. The innovative M-Pact common valve system allows for easy updates and changes to faucet styles without requiring additional plumbing work.

• Compatible with Posi-Temp tub and shower systems.
• Supports a maximum discharge temperature variance of +/- 3 degrees.
• Easy installation and future upgrades.

Product Highlights

The valve includes a temperature limit stop and test plug for optimal performance and safety. Built with a brass body, it is designed for durability and long service life.

Product Information

Standard Information

• Brand: Moen
• MPN: FP62325PF

Technical Specifications

• Series: Posi-Temp M-Pact
• Inlet Connection: 1/2 inch Crimp Ring PEX
• Outlet Connection: 1/2 inch Crimp Ring PEX
• Body Material: Brass
• Weight: 2 lbs
• Package Dimensions: 7.4 x 5.0 x 6.0 inches
• Features: Adjustable temperature limit stop; maintains constant water temperature
• Usage: For Posi-Temp tub and shower installations
