Product Description

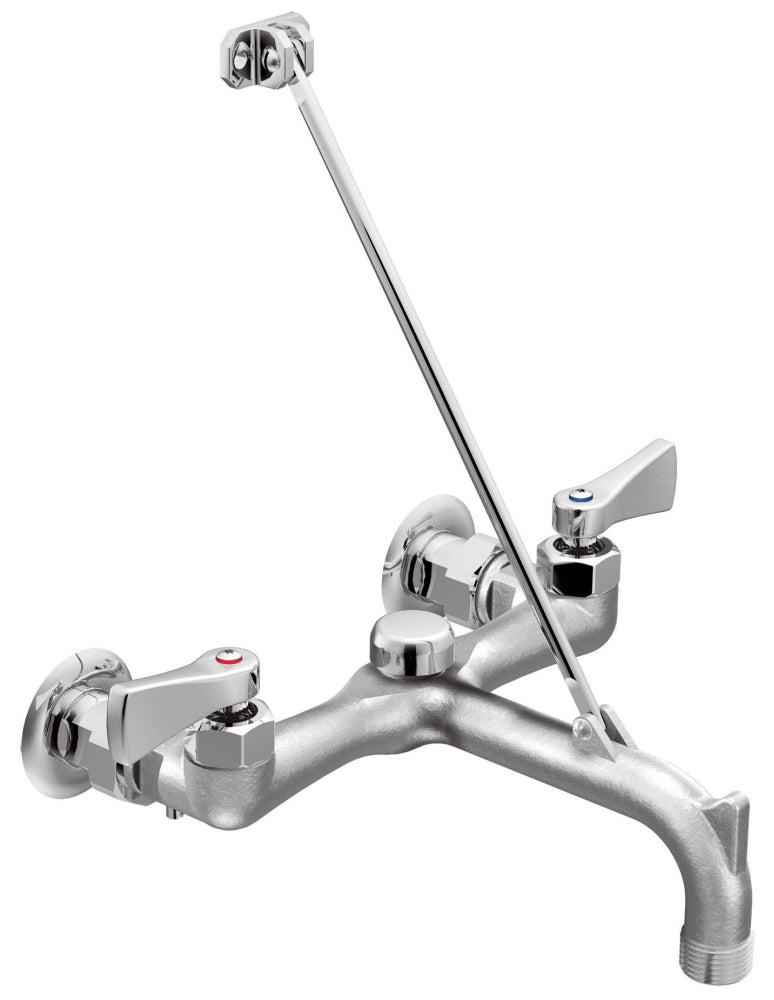

The Moen 8230 is a service sink faucet designed for wall mounting. This faucet features two handles and operates with a sturdy quarter-turn ceramic disc cartridge. Its inlet size is one-half inch and the spout length measures nine and three-eighths inches, providing adequate reach for various applications.
- Durable brass construction for extended use
- Vandal-resistant design with tamper-proof features
- ADA compliant for accessibility
Product Highlights
This faucet serves effectively in commercial environments where reliability and strength are essential, particularly in high-traffic areas.
Product Information
Standard Information
Technical Specifications
-
Type: 2-Handle, Wall Mount
-
Inlet Size: 1/2 Inch
-

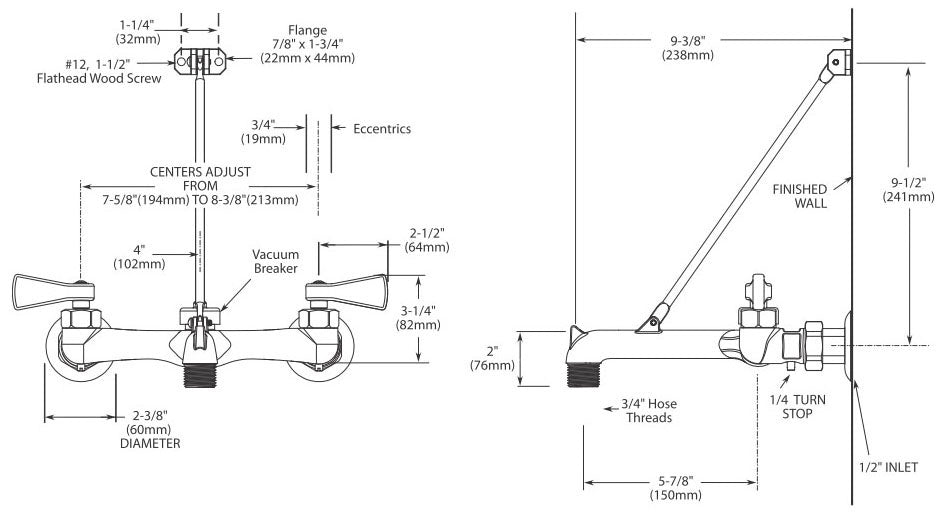

Spout Dimensions: 9-3/8 Inch Length x 5-7/8 Inch Reach
-
Body/Spout Material: Brass
-
Handle Type: 1/4 Turn, Lever
-
Handle Material: Brass
-
Color/Finish: Rough Chrome Plated
-
Aerator Type: Vandal Resistant
-
Inlet Connection: IPS
-
Faucet Hole Center: 7-5/8 to 8-3/8 Inch
-
Inclusions/Features: Ceramic Disc Cartridge, Integral Vacuum Breaker, Garden Hose Threaded Spout, Service Stop, Mounting Bracket, Vandal Resistant Torx Head Screw, Brass Shell
-
Used On Item: Service Sink
-
Applicable Standard: ADA, ASME A112.18.1M, CSA, IAPMO
