Moen 7294C Arbor Kitchen Faucet 1.5 GPM

Product Description

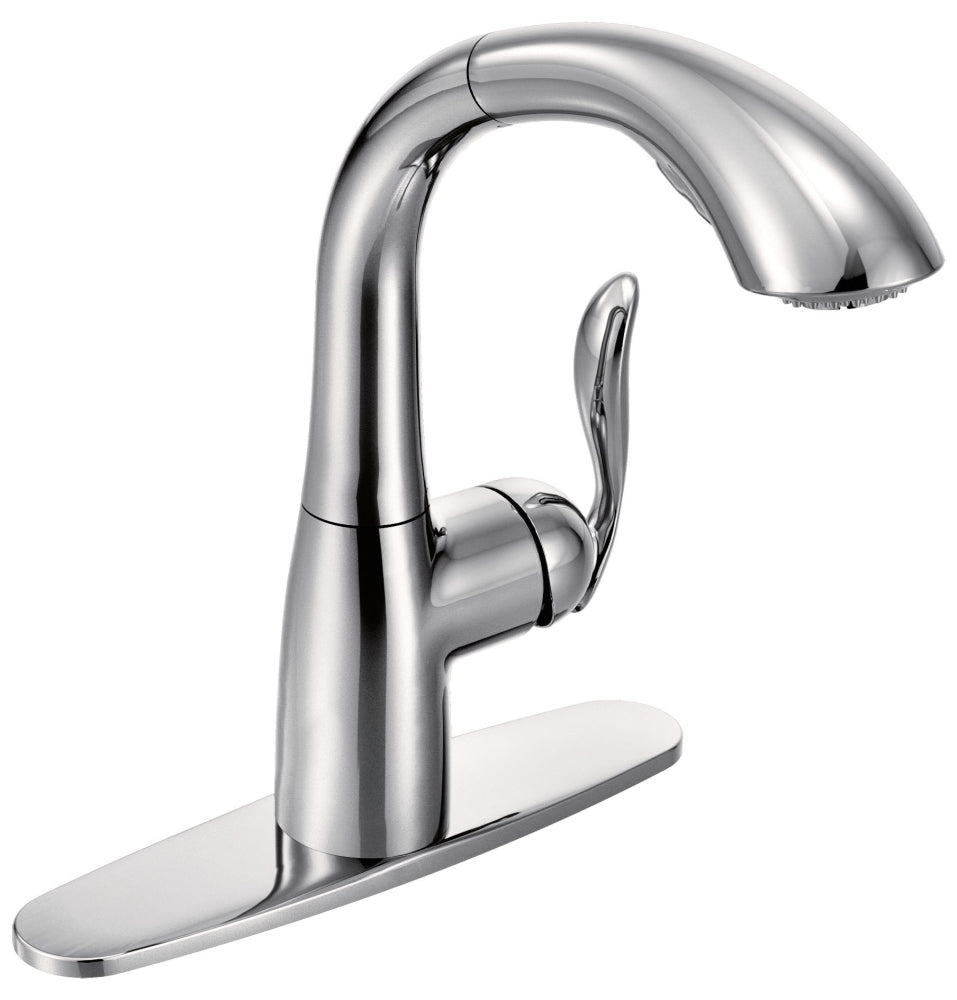

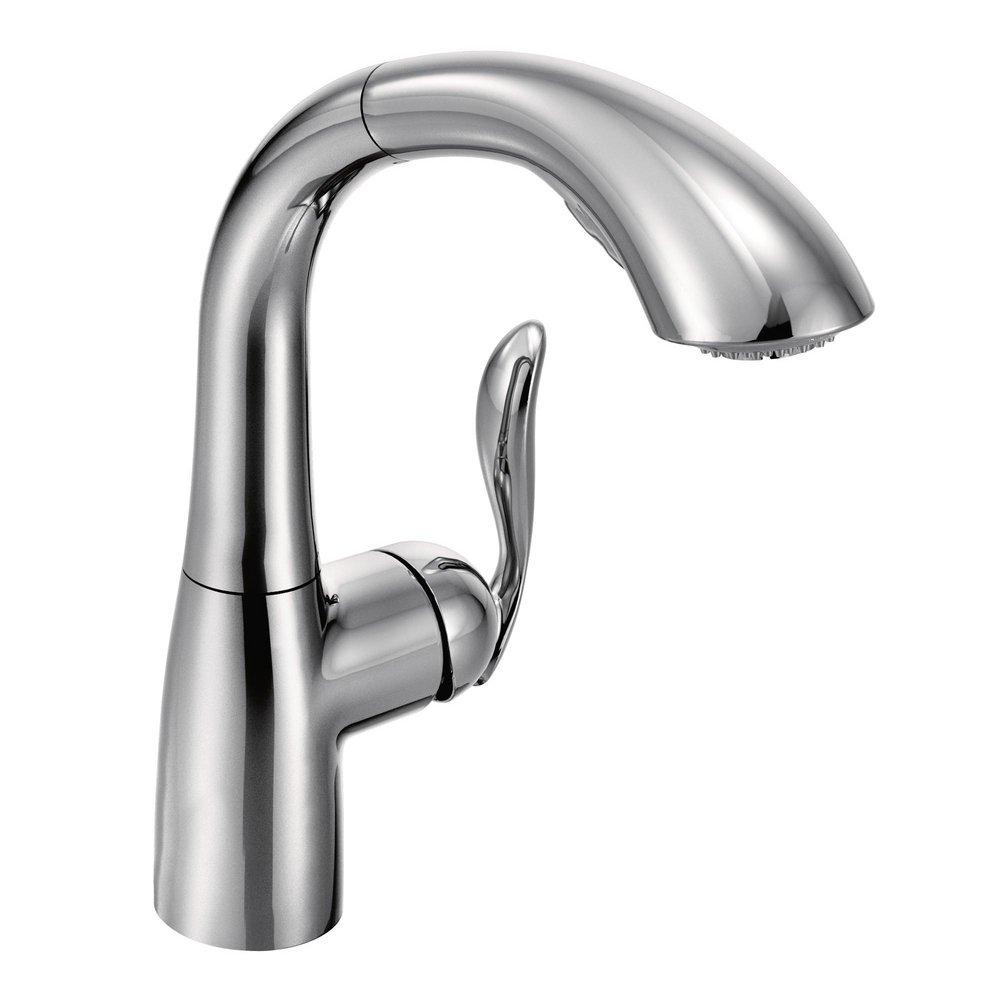

The MOEN 7294C Arbor kitchen faucet features a 1-handle, deck mount design with a high-arc, pull-down spout. Constructed with a metal body and spout, it includes a Duralock quick-connect system and a 59-inch braided hose. This faucet is designed for kitchen sink use.

• Features a pull-out spray design for flexible water delivery.
• Includes Duralock quick connect system for easy installation.
• Compliant with ADA standards and is lead-free.

Product Highlights

The MOEN Arbor kitchen faucet combines streamlined design with functional features like a pull-out spray and easy installation.

Product Information

Standard Information

• Brand: MOEN
• Manufacturer Part Number: 7294C
• Country of Origin: Domestic

Technical Specifications

• Applicable Standard: ADA, ASME A112.18.1/CSA B125.1, NSF 61/9/372, IAPMO, UPC, CALGreen, AB1953/S152, SB370
• Body Material: Metal
• CATALOG NUMBER: 7294C
• COMMODITY CODE DESCRIPTION LEVEL 3: Kitchen Faucets
• Faucet Hole Center: Single
• Flow Rate: 1.5 GPM (5.7 L/min)
• Handle Material: Metal
• Handle Type: Lever
• Inclusions/Features: 1 or 3-Hole Installation, Cartridge, Pull-Out Spray, Duralock Quick-Connect System, Flexible Supply Line, 59 Inch Braided Hose, Deck Plate
• Inlet Connection: Compression
• Inlet Size: 3/8 Inch
• Product Sub-Type: Kitchen Faucet
• Product Type: Faucets
• Series/Model: 7294
• Spout Dimensions: 12-1/8 Inch Height x 10-1/8 Inch Clearance x 8-1/8 Inch Reach
• Spout Material: Metal
• Spout Type: High-Arc, Pull-Down
• Type: 1-Handle, Deck Mount
• Used On Item: Kitchen Sink
• Group: Kitchen
• Collection: ARBOR
• Product UPC: 026508228845
• Color Family: Gray
• Model Number: 7294C
• Product Category: FAUCETS
• Type of Material: Metal
• Base Model Number: 7294
• Manufacturer Name: MOEN
• Overall Height: 12-1/8"
• Spout Height: 10-1/8"
• Spout Reach: 8-1/8"
• Number of Holes Required for Installation: 1
• Max Deck Thickness: 2-1/2"
• Faucet Centers: 0 in.
• Faucet Hole Size: 1.5 in.
• Height: 12.125 in.
• Hose Length: 59 in.
• Overall Width: 2.188 in.
• Product Weight: 6.9 lbs.
• Spout Swivel: Swivel
• Water Connection: 3/8"
• Faucet Holes: 1
• Faucet Type: Kitchen Faucet
• Installation Type: Deck Mounted
• Material: Metal
• Mounting Type: Single Hole
• Number Of Handles: 1
• Pre Rinse: No
• Pullout Direction: Out
• Pullout Spray: Yes
• Quick Connect Supply Lines: Yes
• Theme: Transitional
• Valve Type: Ceramic Disc
• Water Connection Type: Compression
• Water Efficient: Yes
• Duralock: Yes
• Power Clean: Yes
• Speed Connect: Yes
• Valve Technology: 1255 Duralast Cartridge
• ADA: Yes
• Approved for Commercial Use: Yes
• CA Drought Compliant: Yes
• Eco Friendly: Yes
• Low Lead Compliant: Yes
• Style: Pull Out
• ASME: ASME A112.18.1
• Application: Commercial
• CEC Compliant: For Sale in CA
• CSA Certified: CSA B125.1
• Color Finish Category: Chromes
• Color Finish Name: Chrome
• Deck Plate Included: Yes
• Faucet Connection: Compression
• Faucet Connection Size: 3/8 in
• Faucet Height: 12-1/8 in
• Faucet Material: Metal
• Faucet Mount: Deck Mount
• Faucet Valve Type: 1255™ Duralast™ Cartridge
• IAPMO Listed: Yes
• Kitchen Faucet Type: Pull Out
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Maximum Deck Thickness: 2-1/2 in
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Number of Holes: 1 Hole
• Origin: Domestic
• Side Spray: No
• Supply Lines Included: Yes
• UL Listed: No
