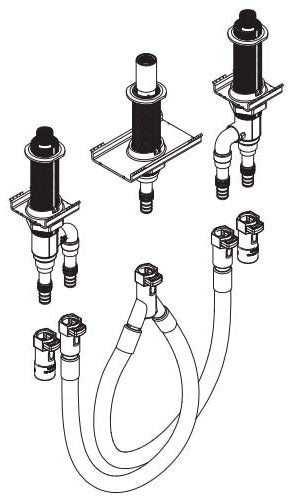

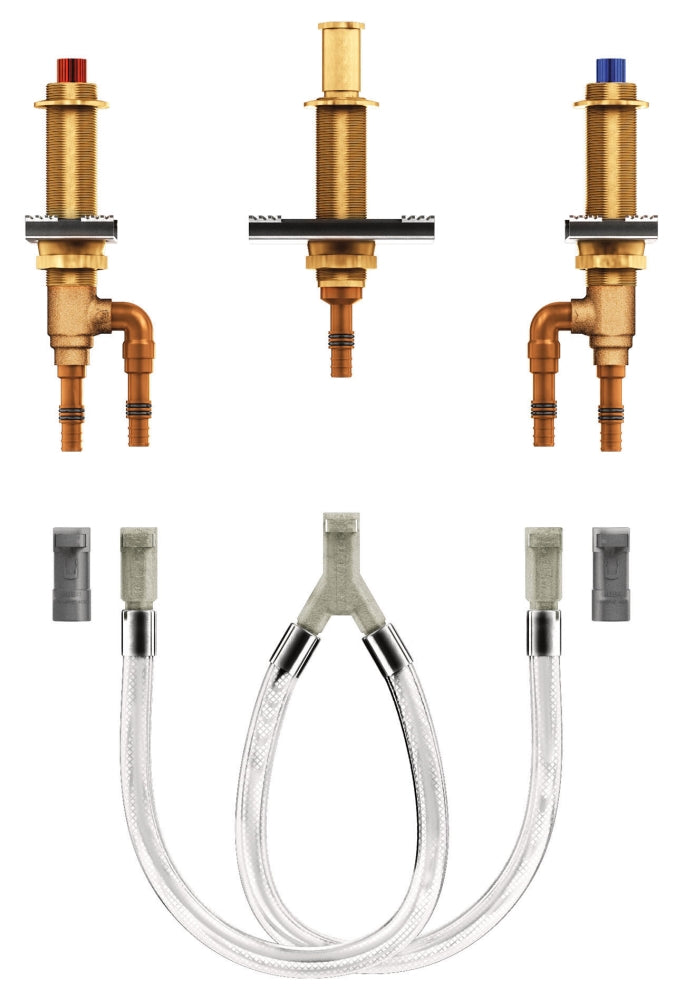

Moen 4793 Two Handle Roman Tub Valve 1/2 in CPVC PEX Connection

Product Description

The Moen 4793 is a two-handle roman tub valve designed for use with 1/2 inch CPVC or PEX connections. This adjustable rough-in valve is suitable for a three-hole installation.

• Adjustable design for easy installation
• Built on the Moen M-Pact common valve system
• Compatible with 3-Hole, 2-Handle Roman Tub Faucet systems

Product Highlights

Durable metal construction with PEX inlet and outlet connections ensure longevity and reliability. The flow rate is 13 GPM at 45 PSI.

Product Information

Standard Information

• Manufactured By: Moen
• MPN: 4793

Technical Specifications

• Connection Size: 1/2 inch
• Inlet Connection: PEX
• Outlet Connection: 1/2 inch PEX/CPVC
• Flow Rate: 13 GPM at 45 PSI
• Number of Valves/Handles: 2
• Valves Material: Metal
• Handle Material: Metal
• Applicable Standards: ASME A112.18.1/CSA B125.1, ASTM F1807/D2846, CSA B137.5/B137.6
• Inclusions: Brass Test Plug, Adjustable Spout Shank, Cartridge, (2) 1/2 inch CPVC Adapters
