Moen 3320 M-Pact Moentrol Transfer Valve 1/2 inches IPS Inlets/Cc Outlets

Product Description

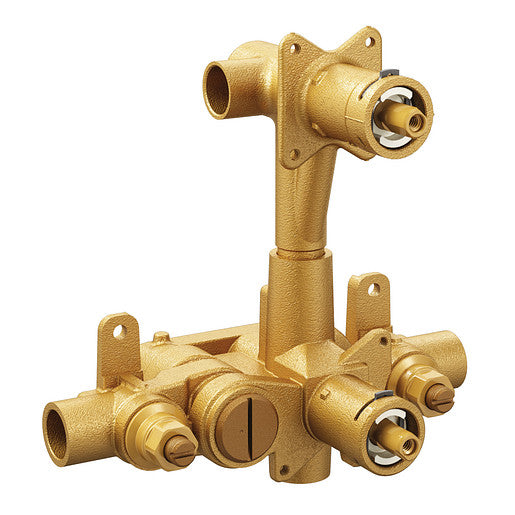

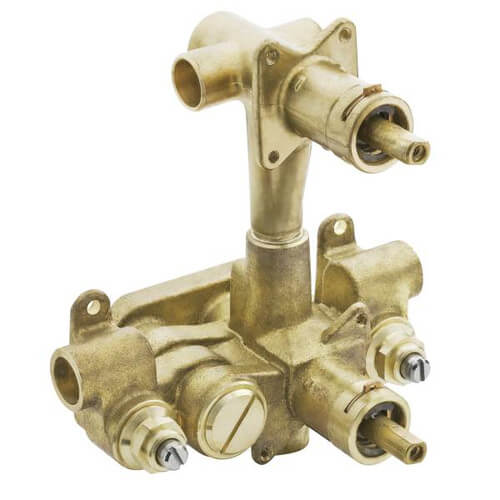

The MOEN 3320 M-Pact Moentrol Transfer Valve features IPS Inlets/Cc Outlets and a 1/2 inch size. Built on the Moen M-PACT common valve system, this transfer valve allows you to adjust both water volume and temperature using a single lever. The valve also features an adjustable temperature limit stop to control maximum hot water temperature.

• Connection size: 1/2"
• Connection type: IPS inlets/CC outlets
• No of ports: four; two outlets

Product Highlights

Update faucet styles in the future without replacing any plumbing. It helps maintain water pressure and temperature.

Product Information

Standard Information

• Brand: MOEN
• Manufacturer Part Number: 3320

Technical Specifications

• Model: 3320
• Manufacturer: MOEN
• Part #: 533428
• Connection Size: 1/2"
• Connection Type: IPS/CC
• Number of Outlets: 4
• Material: Brass
• Product Type: Transfer Valve
• adjustable temp limit stop: included
• check stops: included
• includes: volume control
• for tub spout application: not recommended
• ports: four; two outlets
• type of function: two independent 1 shared
• Brand: Moen
• Exterior Finish: Chrome
• Inlet Connection Size: 0.5 Inches
• Inlet Connection Type: Compression
• Outlet Connection Type: Compression
• Number of Ports: 4
• Outlet Connection Size: 0.5 Inches
• Number of Packs: 1
• Connector Type: Compression
• Valve Type: Ball Valve or Gate Valve
• Body Material: Brass
• Inlet Connection: 1/2 in IPS
• Outlet Connection: 1/2 in C
• Series: M-Pact
