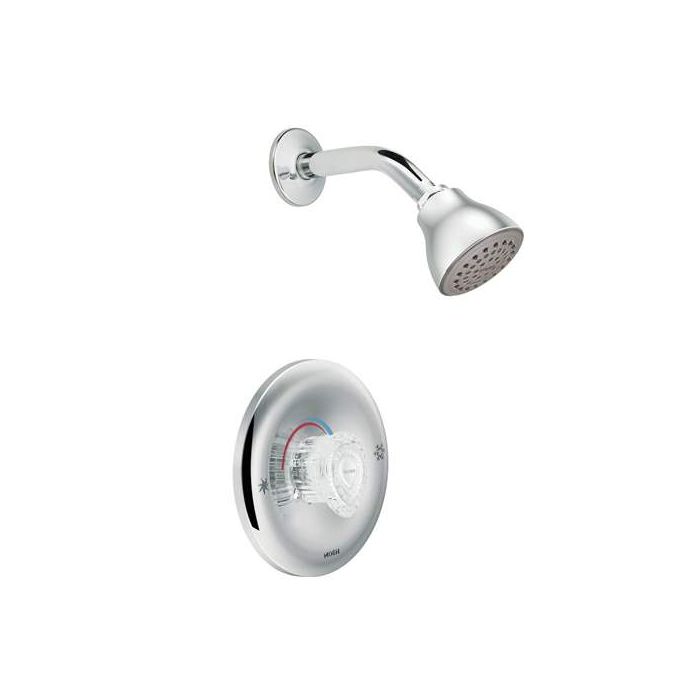

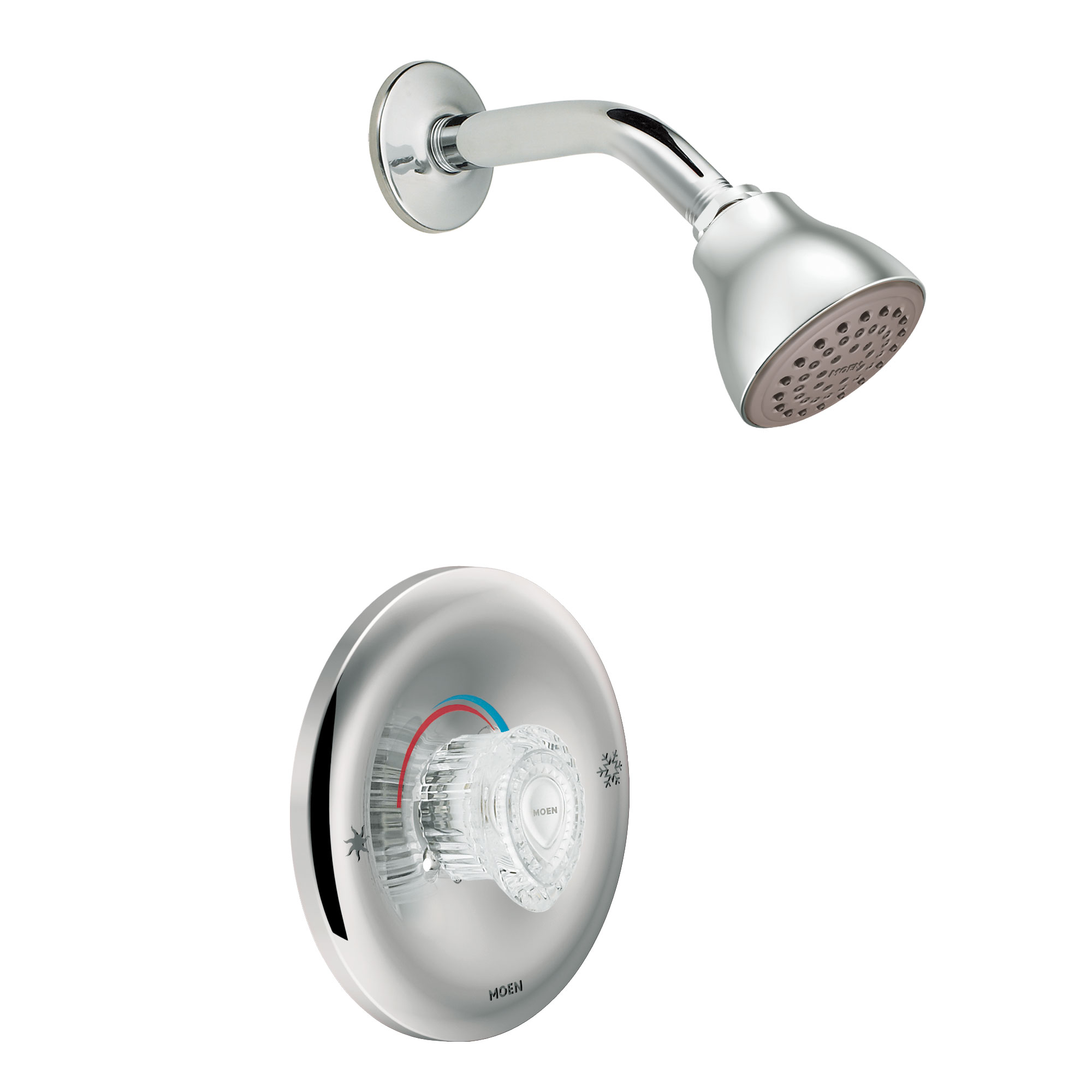

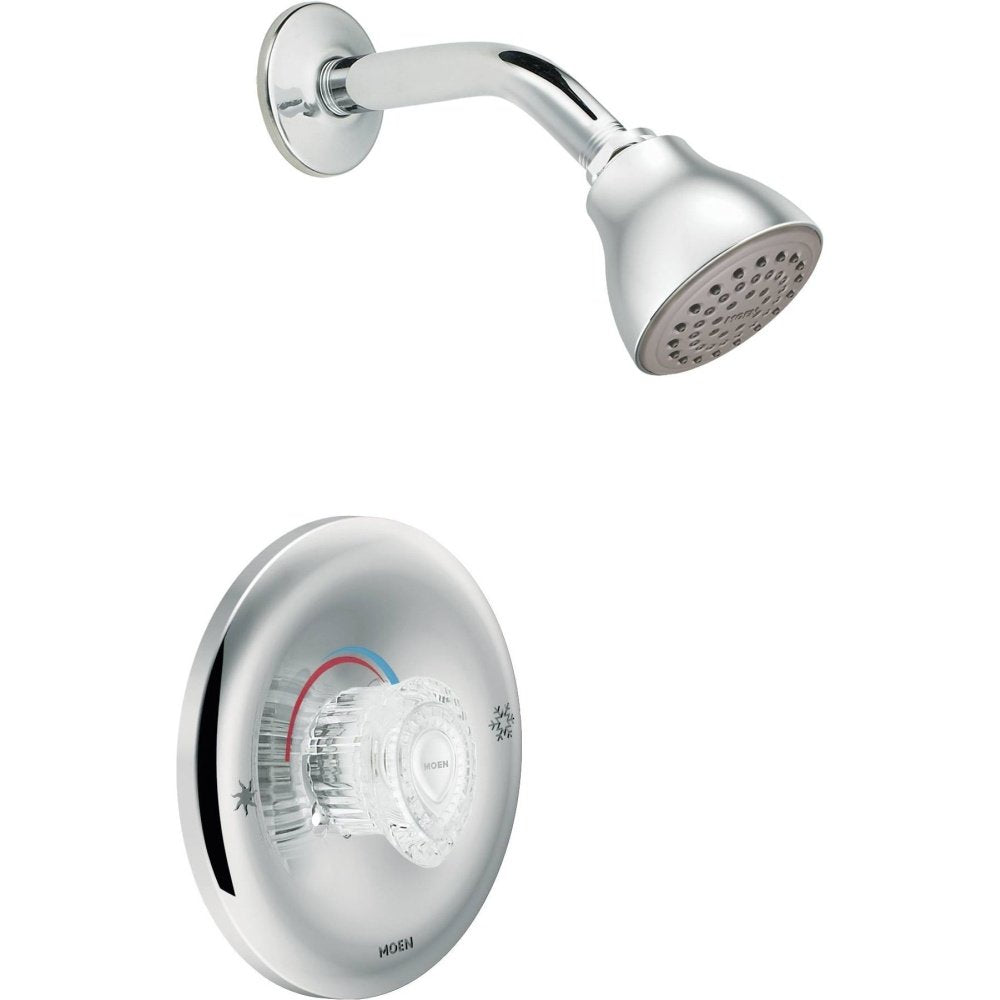

Moen 2352 Chateau Posi-Temp shower 2.5 gpm (2-1/2 inches spray head)

Product Description

Moen 2352 is a Chateau Posi-Temp shower trim and single-function shower head that uses a pressure-balancing valve to maintain water pressure and control temperature. The unit includes an EasyClean XLT single-function shower head, an adjustable temperature limit stop, and a maximum flow rate of 2.5 gpm (9.5 L/min). The valve meets ASSE performance requirements and the trim features a knob handle and four-port configuration.

• PosiTemp pressure-balancing valve maintains water pressure and controls temperature; valve meets ASSE performance requirements
• Includes EasyClean XLT single-function 2-1/2" diameter spray head with 2.5 gpm (9.5 L/min) maximum flow
• Adjustable temperature limit stop, knob handle, four-port configuration; does not include volume control

Product Highlights

Posi-Temp pressure-balancing valve; 2.5 gpm flow; adjustable temperature limit stop; EasyClean XLT single-function 2-1/2" spray head

Product Information

Standard Information

• Brand: MOEN
• Manufacturer Part Number: 2352
• Country of Origin: United States

Technical Specifications

• Brand: Moen
• MPN: 2352
• Model: Chateau
• Product Type: Showerhead / Shower valve (Posi-Temp)
• Finish: Chrome
• Flow Rate: 2.5 gpm (9.5 L/min) max
• Valve Type: PosiTemp pressure-balancing valve
• Standards/Certifications: Valve meets ASSE performance requirements
• Ports: Four
• Connection Size: 1/2"
• Connection Type: Cc
• Showerhead Functions: One-Function
• Showerhead Type: Standard
• Showerhead Size: 2-1/2" diameter spray head
• Red/Blue Markings: Included
• Adjustable Temperature Limit Stop: Included
• Handle Type: Knob
• Installation: Wall mounted
• Number of Faucet Handles: 1
• Number of Faucet Holes: 2
• Spray Patterns: 1
• Spray Nodules: EasyClean rubberized spray nodules
• Material: Metal
• Dimensions: 7.63 x 6.00 x 7.50 inches
• Weight (item): 907 g
• UPC: 26508025659
• Category: Shower Faucets & Thermostats
• Valve Compatibility: Posi-Temp pressure-balancing control valve
