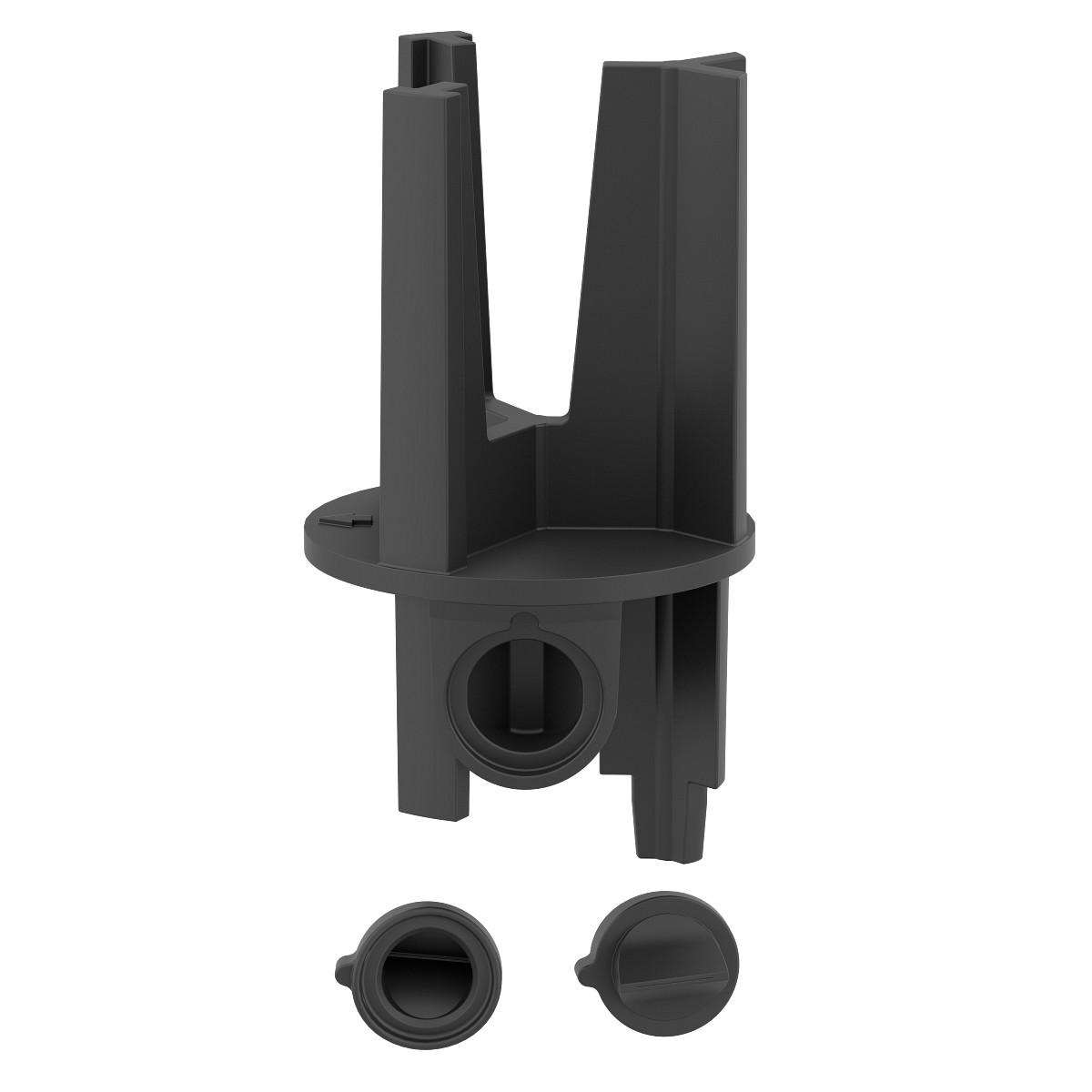

Moen 200763 M-core Cross Flow Kit Shower Valve

Product Description

The MOEN 200763 is the M-CORE Cross Flow Kit, a shower valve body component designed for use within the M-CORE modular valve system. This kit enables cross-flow configuration within a multi-function shower setup, allowing water to route between valve modules for simultaneous or independent control of multiple shower outlets. Licensed plumbers install this component during new construction or remodel projects where a structured, expandable shower system is required.

The M-CORE Cross Flow Kit is intended for residential and light commercial shower installations where the M-CORE valve platform is the specified system. It fits into the M-CORE valve body assembly, supporting layouts that require cross-flow water distribution between integrated valve modules. Typical applications include multi-outlet shower systems with body sprays, handheld wands, or overhead rain heads controlled through a unified valve body configuration.

Key Features

• Cross-flow configuration support for multi-outlet M-CORE shower systems
• Modular design integrates with the M-CORE valve body platform
• Engineered for faster, simplified installation within the M-CORE system
• Supports multiple style and function combinations within a single valve assembly

Compatibility

Designed for use within the MOEN M-CORE modular shower valve system. Specific compatible valve bodies, trim kits, and module configurations should be verified against MOEN M-CORE system documentation before installation.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC) where applicable. Shut off the water supply and depressurize the supply lines before beginning any valve body work. Follow MOEN M-CORE system documentation for proper module sequencing and cross-flow kit placement within the valve assembly. Do not overtighten fittings or connections without referencing manufacturer torque guidance.

Technical Specifications

• System: M-CORE Modular Shower Valve
• Configuration: Cross Flow Kit

Standard Information

• Brand: MOEN
• Manufacturer Part Number: 200763
