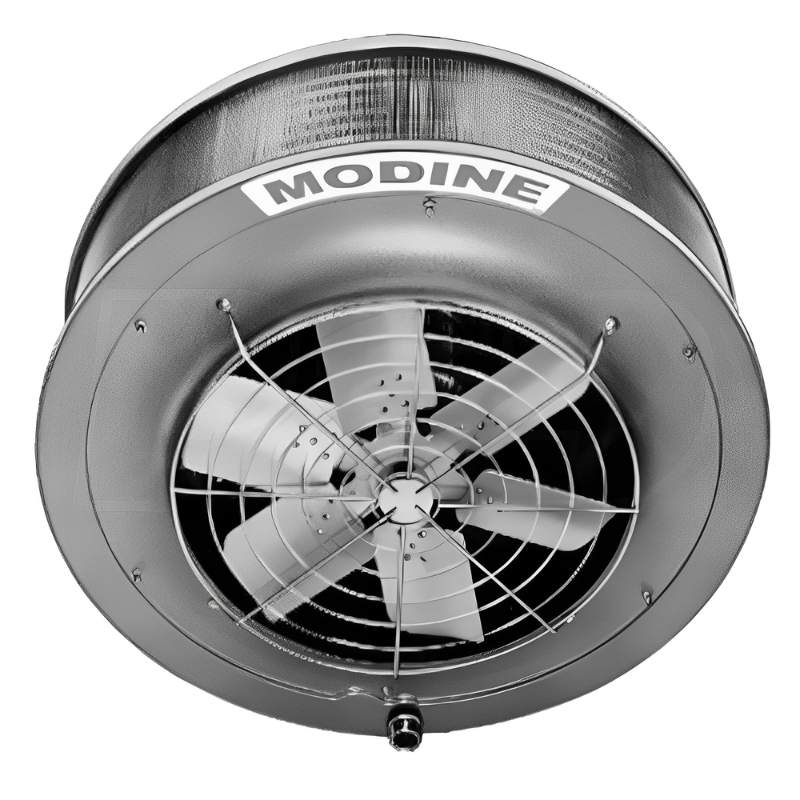

Modine V333S01 hot water/steam unit heater 333,000 BTU vertical

Product Description

The Modine V333S01 is a vertical hot water/steam unit heater designed for heating large spaces with high ceilings, such as warehouses. It provides an input capacity of 333,000 BTU/hr and features a motor cooling cone to extend motor life. The unit includes easy-to-manage wiring within a junction box and pre-drilled tapped suspension holes for simplified installation. Its vertical fin design minimizes dust accumulation, reducing maintenance.

• Motor cooling cone shields the motor from coil heat, extending motor life and reducing maintenance.
• Easy-to-manage wiring terminates inside a junction box, simplifying installation.
• Pre-drilled tapped suspension holes facilitate quick and secure mounting.

Product Highlights

Vertical unit heater with 333,000 BTU capacity, ideal for tall ceilings, featuring a motor cooling cone and durable polyester paint.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: V333S01
• Country of Origin: United States

Technical Specifications

• Input Capacity: 333,000 BTU/hr
• Phase: 1
• Air Throw: 45 Feet
• Voltage: 115 Volts
• Certifications: CSA Listed, cETLus, cCSAus
• Frequency: 60 Hz
• Product Type: Unit Heater
• Fuel Type: Hydronic (Steam/Hot Water)
• Return Connection: 1 1/2 Inches
• Supply Connection: 2 1/2 Inches
• Maximum Air Flow: 5980 CFM
• Product Line: V
• Configuration: Vertical
• Heat Exchanger Material: Copper
• Country of Origin: United States
• Max Mounting Height: 39 ft
• Heat Spread: 32 ft
• Hot Water Final Air Temperature: 103 °F
• Water Flow: 27.1 gal/min
• Horsepower: 3/4 HP
• Amperage: 8.8 A
• Steam Final Air Temperature: 116 °F
• Includes: Electric Junction Box, Outlet Fan Guard, Copper Tubing
• Output Capacity (Hot Water): 260,080 BTU
• Recommended Use: Areas With High Ceilings Or Mounted Above Obstructions
