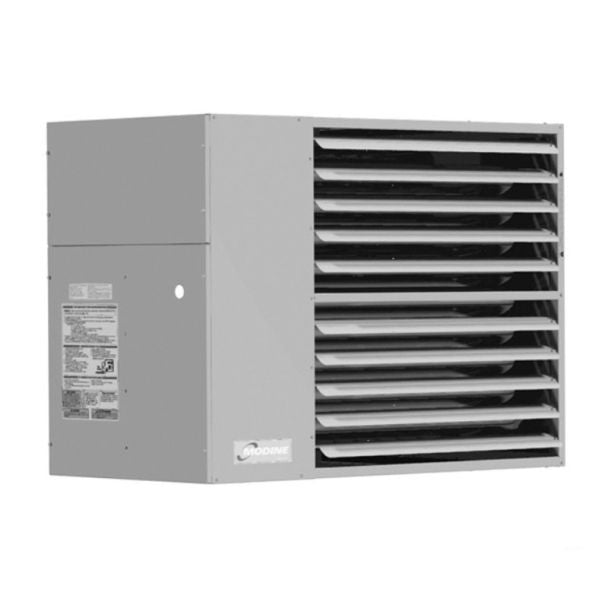

Modine PTS150AS0111SBAN Unit Heater

Product Description

The Modine PTS150AS0111SBAN is a gas-fired unit heater designed for effective heating in spaces. It features a separated combustion design for enhanced efficiency. The unit has an aluminized steel heat exchanger that ensures effective heat transfer.

• Operates using natural gas.
• Includes adjustable air deflector blades for airflow direction.
• Equipped with a direct spark ignition system.

Product Highlights

This unit is built for horizontal installation, providing flexibility in positioning for optimal heating. The separated combustion venting system uses outdoor air for combustion, improving safety and efficiency.

Product Information

Standard Information

• Product Category: Unit Heater
• Product Line: PTS

Technical Specifications

• Fuel Type: Natural Gas
• Vent Type: Direct Vent
• Venting Type: Separated Combustion
• Configuration: Horizontal
• Maximum Input Capacity: 150000 BTU
• Heating Capacity: 120000 BTU
• BTU Output: 123000 BTU
• Thermal Efficiency: 80%
• Air Throw: 51 Feet
• Maximum Air Flow: 2140 CFM
• Input Voltage: 115 VAC
• Phase: 1
• Frequency: 60 Hz
• Flue Connection Size: 4 Inches
• Gas Piping Diameter: 1/2 Inch
• Product Height: 23 1/16 Inches
• Product Width: 35 25/48 Inches
• Product Depth: 31 19/24 Inches
• Product Weight: 165 Pounds
• Motor HP: 1/6 HP
• Motor Type: PSC (Permanent Split Capacitor)
• RPM: 1075
• Approvals: CSA Certified
• Ignition Type: Direct Spark (DSI)
• Sound Level (dBA): 52
• Color: Gray
• Country of Origin: USA
