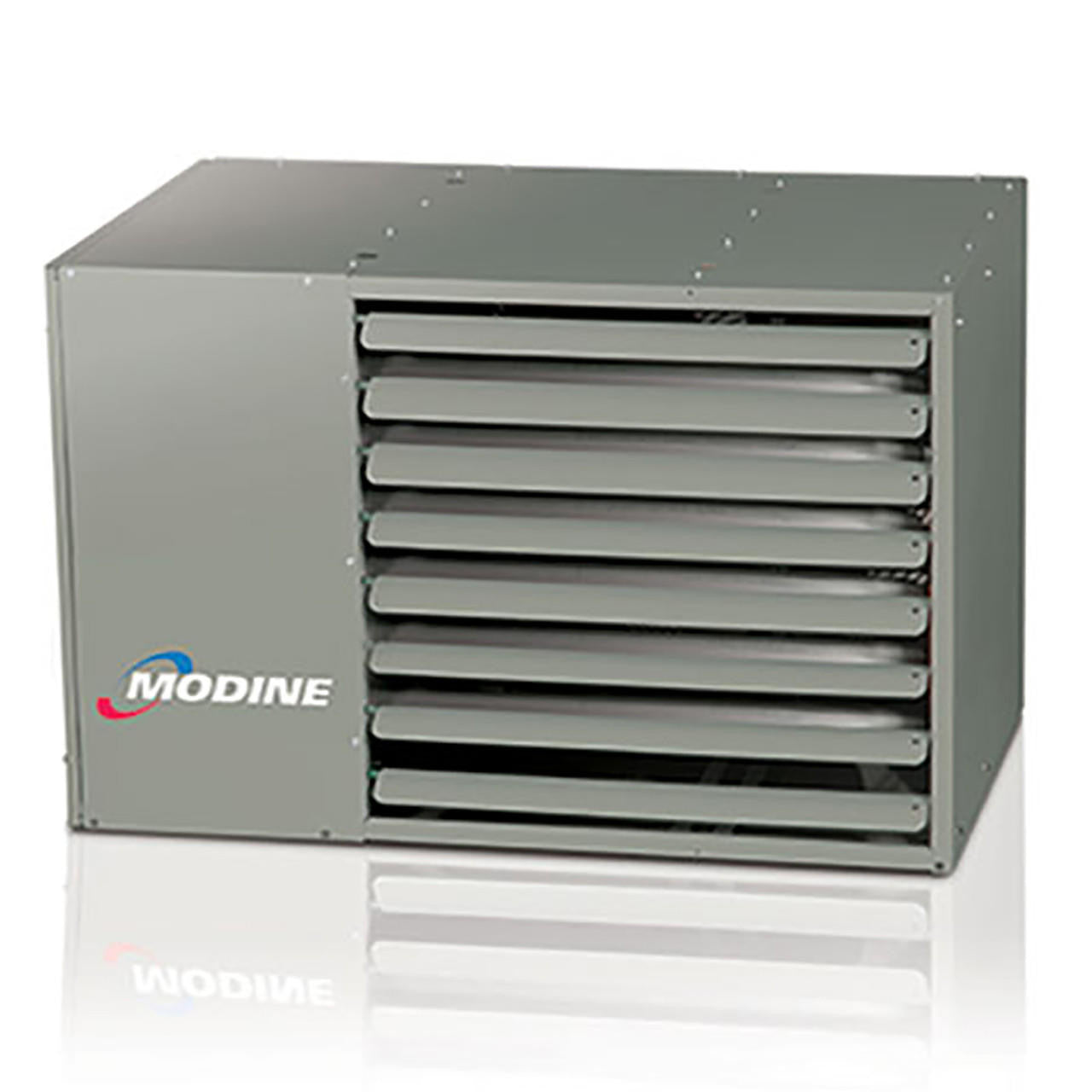

Modine ptp250as0121sban Propane Unit Heater 250000 Btu/h

Product Description

The MODINE ptp250as0121sban is a propane-fired unit heater built for demanding commercial and industrial heating applications. Rated at 250,000 BTU/h input, it uses a bent tubular aluminized steel heat exchanger and a propeller fan to deliver forced-air heat across large open spaces. Power requirements are 115 volts, 60 Hz, single phase, hard-wired. The unit runs on a single-stage gas control valve and ships with a standard fan guard. A permanently lubricated motor reduces maintenance intervals. Professional installation is required, and jobsite elevations above 2,000 feet require a high-altitude adjustment kit ordered separately.

This unit heater is suited for warehouses, garages, manufacturing facilities, loading docks, and similar large uninsulated or semi-insulated spaces where direct propane supply is available. The standard power exhaust configuration supports side-wall or roof venting using small-diameter vent pipe, giving installers flexibility on venting layout. Field wiring connections and pre-punched knockouts simplify rough-in for both gas and electrical trades on new construction and retrofit jobs alike.

Key Features

• 250,000 BTU/h input rating for high-capacity commercial and industrial space heating
• Bent tubular aluminized steel heat exchanger with 10-year manufacturer warranty
• Single-stage gas control valve for straightforward operation and serviceability
• Propeller fan with standard fan guard for broad air distribution
• 115-volt, single-phase, hard-wired power input with field-accessible knockouts
• Standard power exhaust compatible with small-diameter side-wall or roof vent pipe
• Permanently lubricated motor reduces routine maintenance requirements
• Made in the USA

Compatibility

Designed as an OEM unit heater for propane fuel supply systems in commercial and industrial forced-air heating applications. Installations above 2,000 feet elevation require a high-altitude adjustment kit; consult Modine accessory listings for the correct kit.

Installation Notes

Installation must be performed by a licensed HVAC or gas-fitting professional in accordance with local codes and the manufacturer installation instructions. Shut off propane supply and disconnect electrical power before any service work. Venting must comply with applicable mechanical codes, including IFGC requirements for vent sizing, termination clearances, and combustion air. Do not operate the unit or energize controls until all gas connections have been leak-tested and venting is fully assembled and secured.

Technical Specifications

• Fuel Type: Propane
• Input Capacity: 250,000 BTU/h
• Voltage: 115 volts
• Frequency: 60 Hz
• Phase: 1 Ph.
• Wiring: Hard wired
• Heat Exchanger Material: Aluminized steel
• Heat Exchanger Design: Bent tubular
• Gas Control: Single stage
• Fan Type: Propeller
• Fan Guard: Standard
• Venting: Standard power exhaust
• Heat Exchanger Warranty: 10 years
• Country of Origin: USA

Standard Information

• Brand: MODINE
• Manufacturer Part Number: ptp250as0121sban
