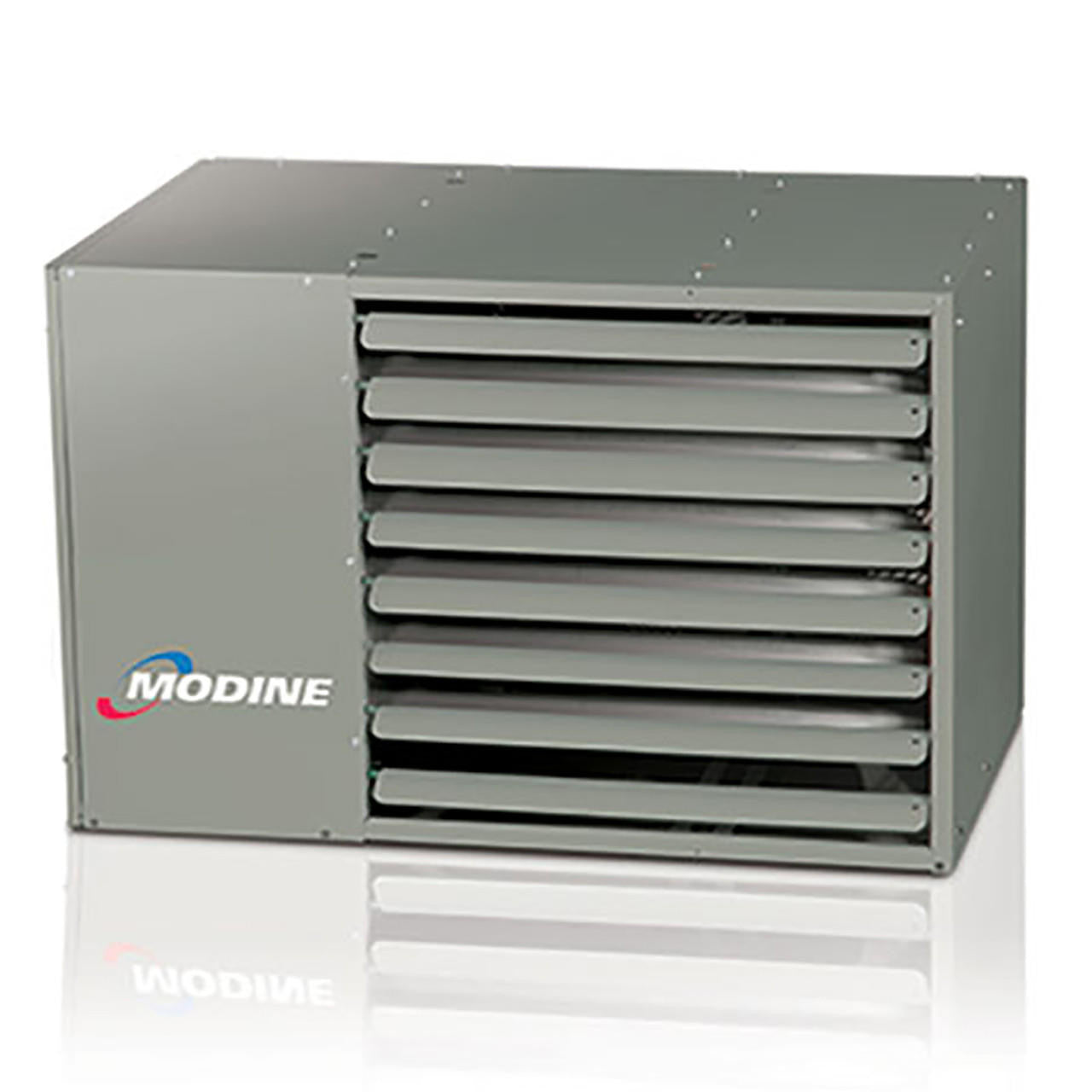

Modine ptp200as0121sban Propane Unit Heater 200000 Btu/h

Product Description

The MODINE ptp200as0121sban is a propane-fired unit heater rated at 200,000 BTU/h input, built for commercial and industrial heating applications. It features an aluminized steel bent tubular heat exchanger and a single-stage gas control valve. Power is supplied at 115 volts, 60 Hz, single phase, hard-wired. A propeller fan moves conditioned air across the heat exchanger and into the space. The unit ships with a standard fan guard installed. A permanently lubricated motor reduces maintenance requirements. Professional installation by a qualified HVAC or gas-heating technician is required.

This unit heater is suited for garages, warehouses, manufacturing facilities, agricultural buildings, and similar commercial or light-industrial spaces that require high-capacity direct propane heat. Standard power exhaust allows side-wall or roof venting through small-diameter vent pipe, giving installers flexibility on venting layout. Field wiring connections and gas knockouts are provided for faster rough-in. Note that installations at elevations above 2,000 feet require a high-altitude adjustment kit, ordered separately.

Key Features

• 200,000 BTU/h propane input for high-capacity space heating
• Aluminized steel bent tubular heat exchanger for durability in demanding environments
• Single-stage gas control for straightforward operation and serviceability
• 115V, 60 Hz, single-phase hard-wired power connection
• Propeller fan with standard guard included
• Permanently lubricated motor reduces routine maintenance
• Standard power exhaust compatible with small-diameter side-wall or roof vent pipe

Compatibility

Designed as an OEM unit heater for propane-fired commercial and industrial heating installations. High-altitude adjustment kit required for jobsite elevations above 2,000 feet and must be ordered separately.

Installation Notes

Installation must be performed by a licensed HVAC or gas-heating technician in accordance with applicable local codes, NFPA 54, and the manufacturer installation instructions. Shut off the propane supply and disconnect electrical power before making any connections or performing service. All field wiring must comply with NEC requirements for the voltage and amperage of this unit. Do not operate without the fan guard properly secured.

Technical Specifications

• Fuel Type: Propane
• Input Capacity: 200,000 BTU/h
• Voltage: 115 volts
• Frequency: 60 Hz
• Phase: Single phase
• Wiring: Hard wired
• Heat Exchanger Material: Aluminized steel
• Heat Exchanger Type: Bent tubular
• Gas Control: Single stage
• Fan Type: Propeller
• Fan Guard: Standard
• Venting: Standard power exhaust, side-wall or roof capable
• Heat Exchanger Warranty: 10 years
• High Altitude Note: Adjustment kit required above 2,000 feet elevation

Standard Information

• Brand: MODINE
• Manufacturer Part Number: ptp200as0121sban
