Product Description

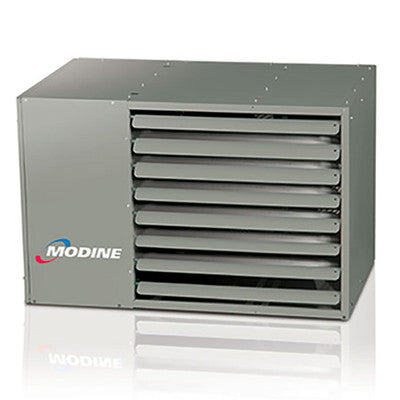

The MODINE PTP200AS0111SBAN is a unit heater suitable for commercial spaces. This heater features a tubular heat exchanger made from aluminized steel. It includes a power venting system to efficiently handle flue exhaust. The horizontal configuration makes it versatile for various installations, and it comes with electric knockouts for easy wiring access. The unit is also certified for commercial use and can convert from natural gas to propane with the appropriate kit.
- Aluminized steel heat exchanger for durability.
- Power venting system for effective exhaust management.
- Electric knockouts for straightforward wiring setup.
Product Highlights
This unit heater is ideal for heating large commercial areas, ensuring safety and efficiency in operation.
Product Information
Standard Information
-
Product Category: Unit Heater
-
Fuel Type: Natural Gas
Technical Specifications
-
Vent Type: Power Vent
-
Configuration: Horizontal
-
Gas Conversion Kit: Available
-
Maximum Input Capacity: 200000 BTU
-
Heating Capacity: 164000 BTU
-
Thermal Efficiency: 82%
-
Maximum Air Flow: 2870 CFM
-
Air Throw: 53 Feet
-
Input Voltage: 115 Volts
-
Frequency: 60 Hz
-
Phase: 1
-
Flue Connection Size: 4 Inches
-
Gas Piping Diameter: 1/2 Inch
-
Product Height: 25 13/16 Inches
-
Product Width: 42 25/48 Inches
-
Product Depth: 22 1/24 Inches
-
Product Weight: 220 Pounds
-
Shipping Weight: 220 Pounds
-
ETL Listed: Yes
-
Parts Warranty: 2 Years
-
Heat Exchanger Warranty: 10 Years
-
Btu/Hr Input: 200,000
-
Btu/Hr Output: 166,000
-
Entering Airflow (CFM) @ 70°F: 2870
-
Outlet Velocity (FPM): 643
-
Air Temp. Rise (°F): 52
-
Max. Mounting Height (Ft.): 15
-
Heat Throw (Ft.) @ Max Mtg Ht: 53
-
Motor Type: PSC
-
Motor HP: 1/3
-
Motor RPM: 1075
-
Vent Connection (inches): 5
-
Control System Description: Single-Stage, Direct Spark Ignition
-
Dimensions (inches) WxHxD: 42.53 x 25.81 x 34.43
-
Approx. Shipping Weight (lbs.): 215
