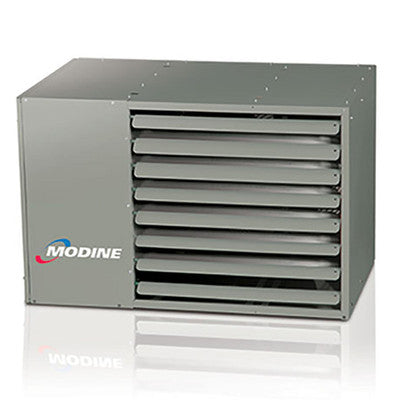

MODINE PTP175AS0111SBAN Power Vent Propeller Unit Heater

Product Description

The MODINE PTP175AS0111SBAN is a power vent propeller unit heater designed for commercial applications. This unit is built with a bent tube heat exchanger and is primarily designed for natural gas use but can be converted to propane in the field. Its specifications include a 175,000 Btu/Hr input and a 143,500 Btu/Hr output, making it suitable for effective heating in various commercial settings.

• Utilizes a direct spark ignition system.
• Requires a 115V power supply.
• Certified for commercial use.

Product Highlights

The MODINE PTP175AS0111SBAN provides reliable heating with efficient energy use and versatility.

Product Information

Standard Information

• Input Btu/Hr: 175,000
• Output Btu/Hr: 143,500

Technical Specifications

• Entering Airflow (CFM) @ 70°F: 2725
• Outlet Velocity (FPM): 607
• Air Temp. Rise (°F): 48
• Max. Mounting Height (Ft.): 14
• Heat Throw (Ft.) @ Max Mtg Ht: 50
• Motor Type: PSC
• Motor HP: 1/6
• Motor RPM: 1075
• Gas Connection (inches): 1/2
• Vent Connection (inches): 5
• Supply Voltage: 115V/60Hz/1ph
• Control System Description: Single-Stage, Direct Spark Ignition
• Dimensions (inches) WxHxD: 42.53 x 25.81 x 32.83
• Approx. Shipping Weight (lbs.): 163
