Modine pdp250ae0185sban Propane Unit Heater 250000 Btu/h

Product Description

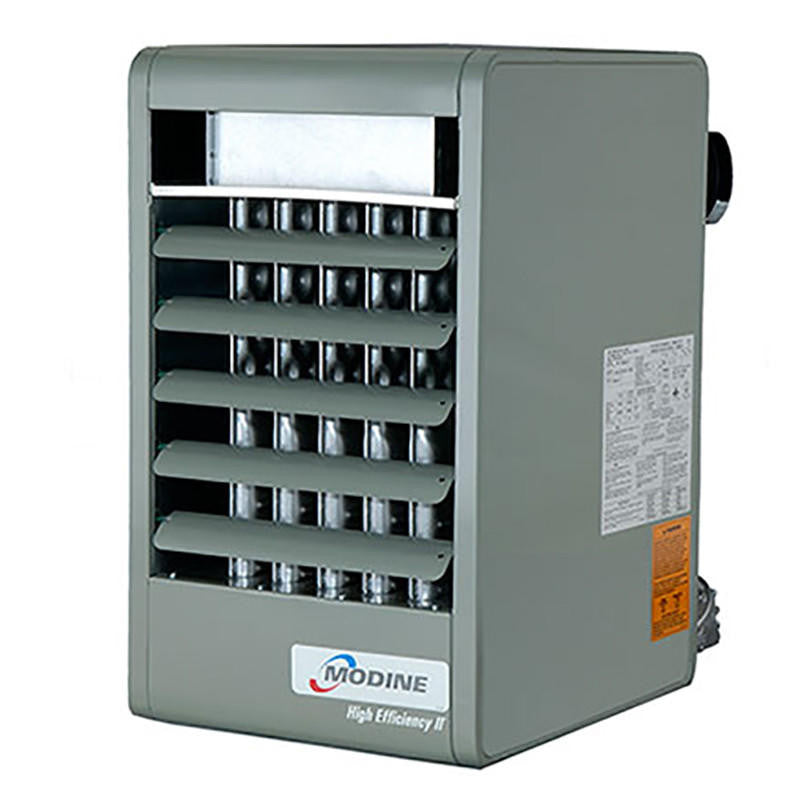

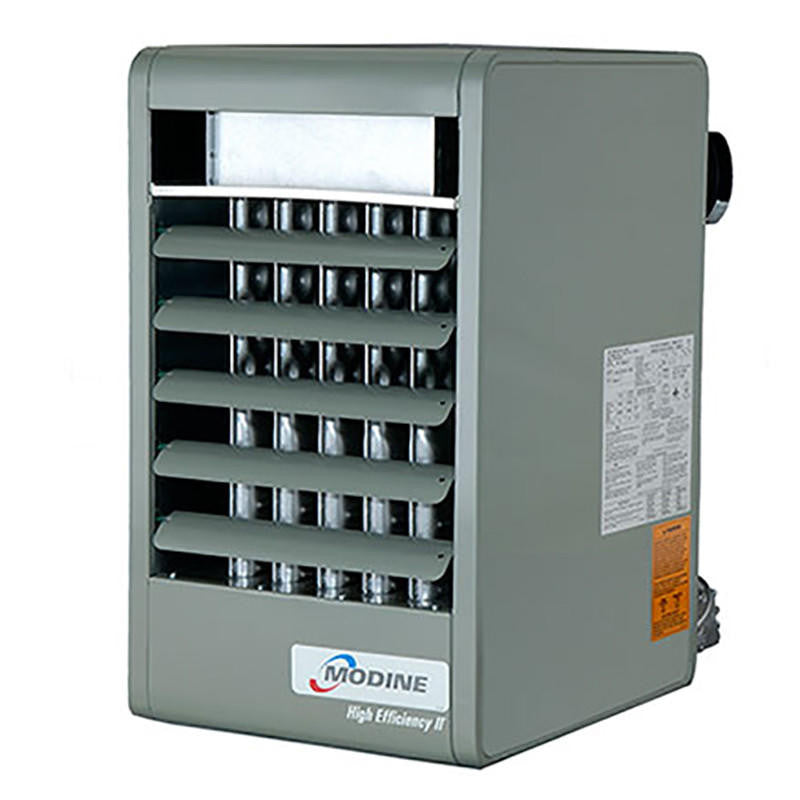

The MODINE pdp250ae0185sban is a propane-fired, propeller-fan unit heater rated at 250,000 BTU/h input and designed for commercial and industrial heating applications. Operating on 115 volts and delivering 83 percent thermal efficiency, this hard-wired heater uses a clam-shell heat exchanger and a power exhauster that can rotate 180 degrees to allow vertical or horizontal venting. Single-stage gas control keeps operation straightforward, and the intermittent pilot-ignition system includes continuous retry to prevent nuisance lockouts. Licensed HVAC technicians typically handle installation, sizing, and commissioning.

This unit heater is suited for warehouses, garages, manufacturing facilities, and other large open spaces where suspended propane heat is the preferred solution. The propeller fan delivers heat across a wide coverage area. The power exhaust design allows flexible vent routing to match jobsite conditions, and the unit is engineered to use the smallest-diameter vent pipe practical for the application. Sites above 2,000 feet elevation require a high-altitude adjustment kit ordered separately.

Key Features

• 250,000 BTU/h propane input with 83 percent thermal efficiency
• Power exhauster rotates 180 degrees for vertical or horizontal venting
• Clam-shell heat exchanger with 10-year warranty
• Intermittent pilot-ignition with continuous retry — no nuisance lockouts
• 100 percent gas shut-off if the unit fails to light, preventing unburned gas accumulation
• Safety pressure switch monitors vent pipe to confirm flue gases are properly exhausted
• Wing-screw bottom pan removal — no screwdriver or nut driver required
• Level hanging mechanism allows field adjustment after accessory installation

Compatibility

Designed as a propane-fired suspended unit heater for commercial and industrial heating systems requiring single-stage control and propeller-fan air distribution. High-altitude applications above 2,000 feet require the appropriate Modine high-altitude adjustment kit.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Shut off all gas supply and disconnect electrical power before servicing or mounting the unit. Hard-wire the 115-volt connection per NEC requirements, and ensure the vent system is properly sized and sealed to prevent flue gas backdraft. Consult the manufacturer's documentation for required clearances to combustibles and minimum vent pipe diameter.

Technical Specifications

• Fuel Type: Propane
• Input Capacity: 250,000 BTU/h
• Voltage: 115 volts
• Thermal Efficiency: 83 percent
• Stages: Single stage
• Fan Type: Propeller fan
• Wiring: Hard wired
• Heat Exchanger: Clam-shell, aluminum steel
• Guard Type: Standard guard
• Venting: Power exhaust, 180-degree rotation, vertical or horizontal
• Ignition: Intermittent pilot with continuous retry
• Heat Exchanger Warranty: 10 years
• Altitude Requirement: High-altitude kit required above 2,000 feet elevation

Standard Information

• Brand: MODINE
• Manufacturer Part Number: pdp250ae0185sban
