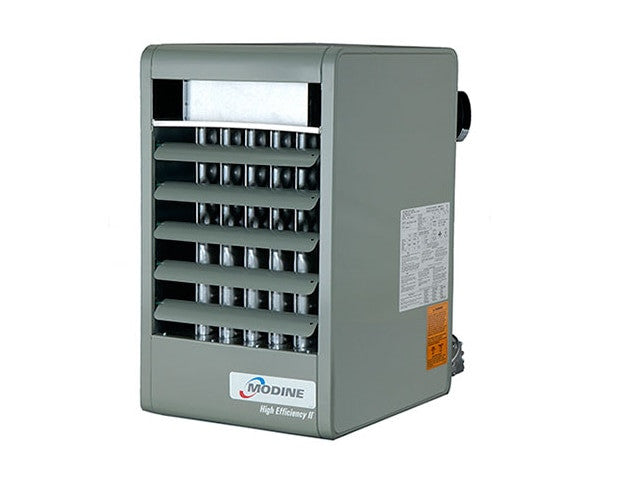

Modine PDP150 150,000 BTU Vertical Powered Vented Unit Heater - 115V - NG

Product Description

The Modine PDP150AE0130 is a vertical powered vented unit heater operating at 115 volts with an input of 150,000 BTUs and an output of 123,000 BTUs. This unit is ideal for use in various commercial locations and can be mounted up to sixteen feet high. Vented installation can be achieved either vertically or horizontally, accommodating the design requirements of the installation site.

• Natural Gas operation.
• 80% thermal efficiency for cost-effective heating.
• Time delay relay for optimal heat distribution.

Product Highlights

This unit heater is designed for efficient heating, featuring a collector box and power exhauster that maximizes seasonal efficiency. Equipped with a low voltage terminal board and a control step-down transformer, the Modine PDP150AE0130 ensures safe operation.

Product Information

Standard Information

• Installation Type: Ceiling Mount
• Fuel Type: Natural Gas (NG)

Technical Specifications

• Heating BTUs (Input): 150000
• Heating BTUs (Output): 124500
• Thermal Efficiency: 80%
• CFMs: 2180
• Gas Connection Size: 1/2 inch
• Vent Connection Size: 5 inches
• Width: 21 inches
• Depth: 22 inches
• Height: 35.25 inches
• Net Weight: 168 lbs.
