Product Description

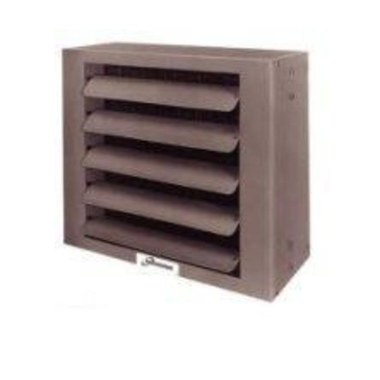

The Modine HSB33 is a unit heater designed for horizontal hot water or steam applications. It has a BTU range of twenty-one thousand seven hundred to thirty-three thousand BTU. This model is ideal for heating large spaces efficiently. It operates on standard electrical input of one hundred fifteen volts at sixty hertz and is designed for easy installation.
- BTU Input Range: 21.7 to 33K
- Blower Output: 630 CFM
- Size: fifteen by seventeen and one-half by fourteen and three-quarter inches
Product Highlights
This heater is suited for heating applications, providing effective warmth for varied environments. The standard inlet connection is one and one-quarter inch FNPT, allowing for flexible installation options.
Product Information
Standard Information
-
Brand: Modine
-
Product Type: Unit Horizontal Hot Water or Steam
Technical Specifications
-
BTU Input: 21.7 to 33K BTU
-
Blower Output: 630 CFM
-
Electrical Rating: 115V/60HZ/1PH
-
Inlet Connection: 1-1/4 IN FNPT
-
Size: 15 x 17-1/2 x 14-3/4 IN
-
Application: Heating
-
Shipping Weight: 34.125 LBS
