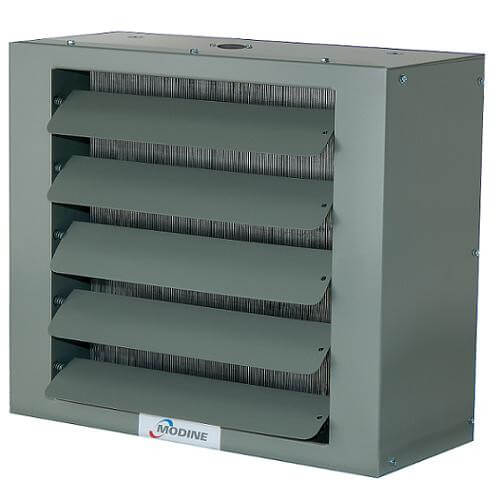

Modine HSB193SB01SA HSB193 Horizontal Steam Hot Water Unit Heater 193000 BTU

Product Description

Modine HSB193SB01SA is a horizontal steam and hot water unit heater designed for efficient heating applications. This unit heater operates at a BTU output of 193,000 for steam and 143,000 for hot water. It is ideal for spaces where gas or oil is not an option. The specially designed propeller fan optimizes air distribution.

• BTU output: 193,000 (Steam) / 143,000 (Hot Water)
• Final Air Temperature: 121 °F (Steam) / 105 °F (Hot Water)
• Dimensions: 32.5 inches x 30.5 inches x 9.25 inches

Product Highlights

This unit has steel male threaded connections at both the top and the bottom, allowing the heater to rotate 360 degrees while maintaining existing piping. It can mount up to 18 feet for steam or 19 feet for hot water, effectively heating large areas.

Product Information

Standard Information

• Brand: Modine
• Type: Hydronic Unit Heater
• Application: Steam, Hot Water

Technical Specifications

• Voltage: 115V
• Horse Power: 1/3
• Weight: 98 lbs
• Shipping Dimensions: 72 inches (Depth) x 30 inches (Width) x 30 inches (Height)
• Air Flow Capacity: 2900 CFM
• Connection Size: 1-1/4 inches
• Hertz: 60
• Phase: 1
