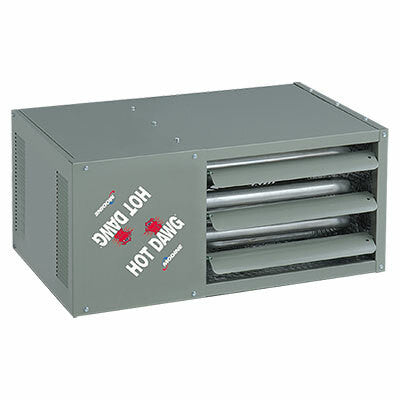

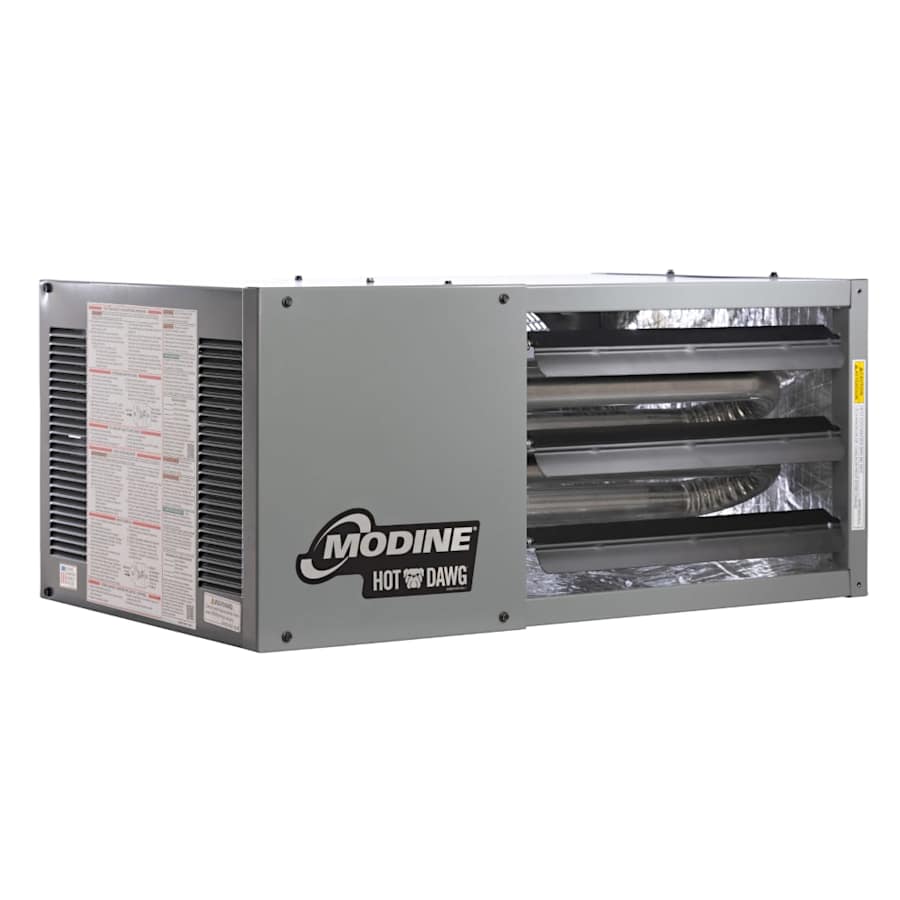

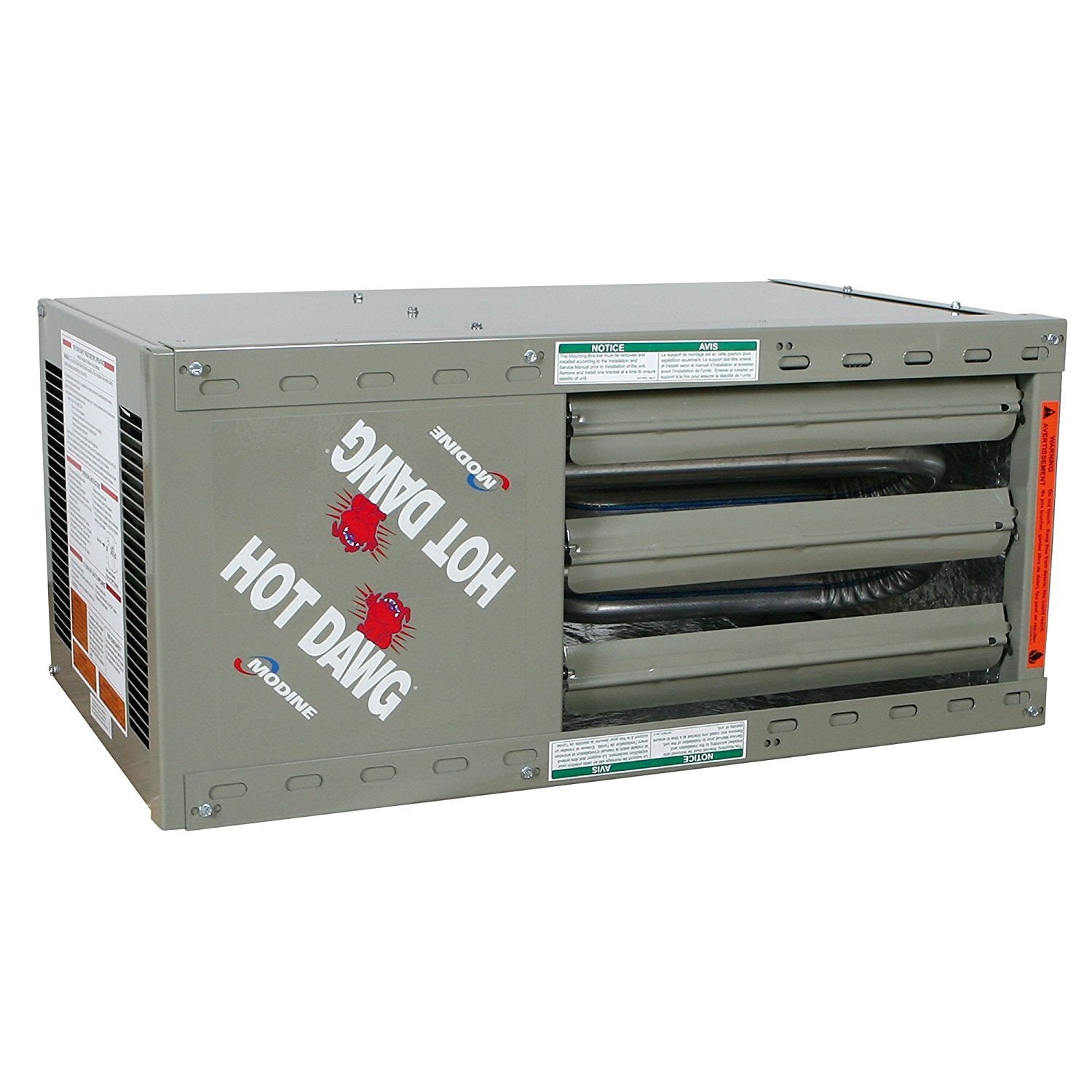

Modine HD30AS0121 Hot Dawg HD 30,000 BTU Unit Heater LP 80% Thermal Efficiency Power Vented

Product Description

The Modine HD30AS0121 Hot Dawg HD unit heater offers a heating solution for various spaces. This 30,000 BTU LP unit heater features 80% thermal efficiency and a power venting system. It has electric wiring knockouts and field wiring connections to keep installation costs low. The neutral colored baked on polyester paint provides corrosion resistance and durability.

• Hush-Puppy quiet operation ensures the heater is inconspicuous and effective.
• Low profile design with a height of only 12.2 inches for flexible mounting.

Product Highlights

The Modine Hot Dawg HD30AS0121 is a 30,000 BTU LP unit heater with power venting and an aluminized steel heat exchanger.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: HD30AS0121
• Country of Origin: USA

Technical Specifications

• Fuel Type: Liquid Propane
• Phase: 1
• Air Throw: 25 Feet
• Voltage: 115 Volts
• Product Depth: 22 Inches
• Product Width: 26.79 Inches
• CSA Listed: Yes
• ETL Listed: Yes
• Product Height: 12.21 Inches
• Frequency: 60 Hz
• Product Category: Unit Heater
• Heating Capacity: 24000 BTU
• Maximum Air Flow: 505 CFM
• Vent Type: Power Vent
• Gas Piping Diameter: 1/2 Inch
• Thermal Efficiency: 80 %
• Flue Connection Size: 3 Inches
• Country of Origin: United States
• Product Line: Hot Dawg HD
• Configuration: Horizontal
• Maximum Input Capacity: 30000 BTU
• Heat Exchanger Material: Aluminized Steel
• Model / MPN: HD30AS0121
• Manufacturer: Park Supply of America
• Installation Type: Ceiling Mount
• Heating BTUs (Input): 30000
• Heating BTUs (Output): 24900
• Noise Level (dBA): 53
• CFMs: 505
• Output Velocity (FPMs): 523
• Discharge Air Temperature Rise (°F): 44
• Gas Connection Size: 1/2"
• Vent Connection Size (in.): 3"
• Top to Ceiling (in.): 1"
• Bottom to Floor (in.): 1"
• To Side Wall (in.): 1"
• To Rear Wall (in.): 18"
• Access Panel (in.): 18"
• Flue / Vent Connector (in.): 4"
• Width (in.): 26.8
• Depth (in.): 12.2
• Height (in.): 18.5
• Net Weight (lbs.): 55
• Circuit Breaker Size (Amps): 15
• Electrical Phases: 1
• Max BTU Input: 30000
• Certifications: CSA, ETL
• Brand: Modine
