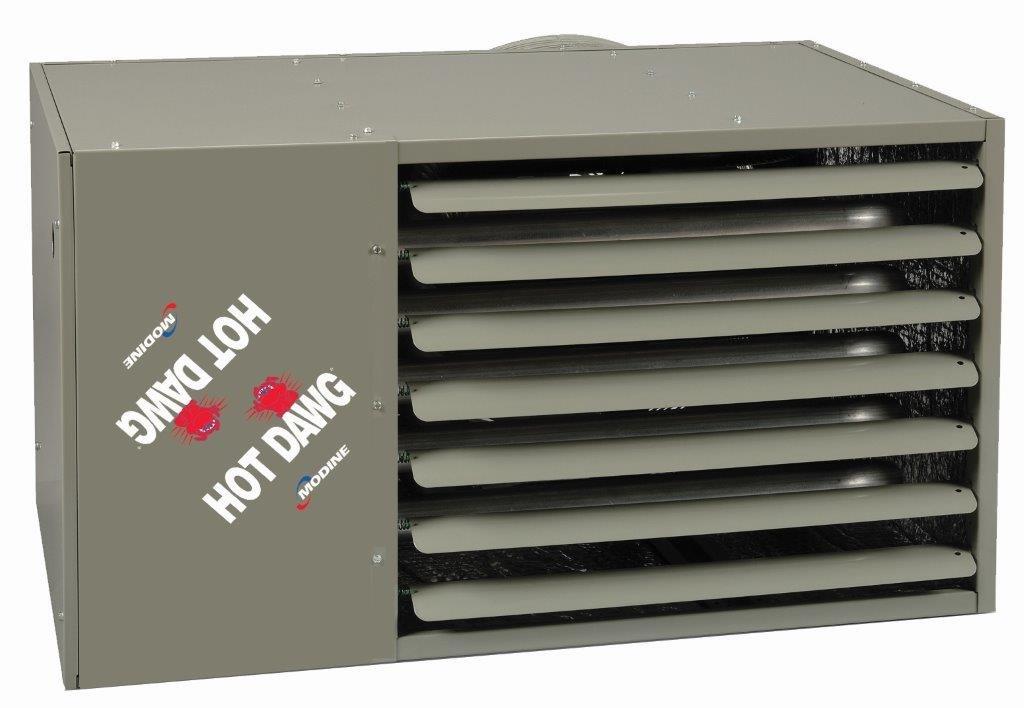

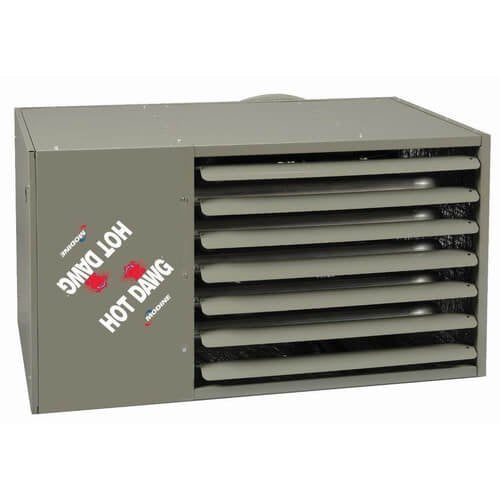

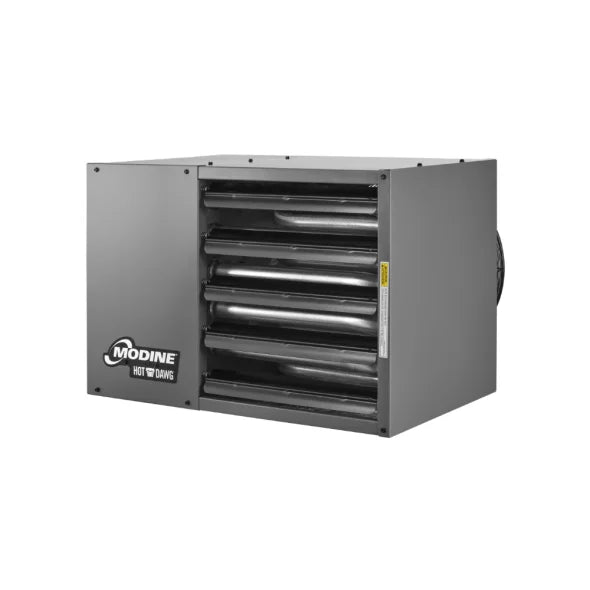

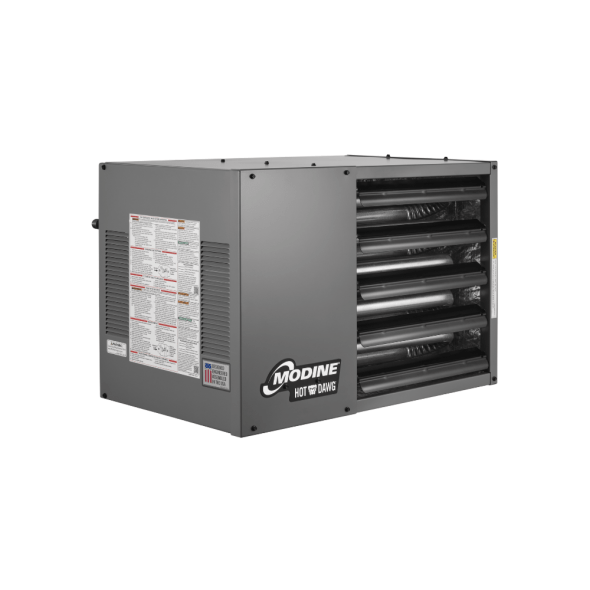

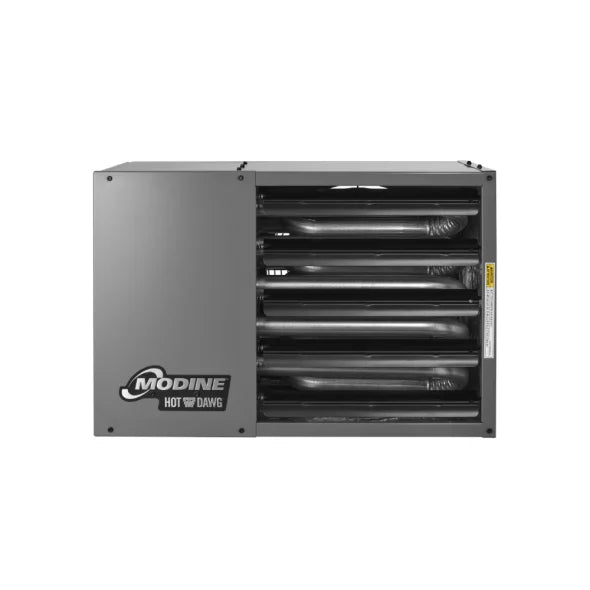

Modine HD100AS0121FBAN Hot Dawg LP Gas Power Vented Unit Heater 100000 BTU

Product Description

The MODINE HD100AS0121FBAN Hot Dawg is a gas-fired unit heater ideal for residential garages, workshops, and light commercial or industrial applications. It features a low-profile design for easy installation and efficient use of space. The unit operates on 115V AC at 60 Hertz and delivers 100000 BTU/Hour (Input) and 82000 BTU/Hour (Output).

• Hush-Puppy quiet operation
• Lightweight and easy to install 1 inch from ceiling
• Features finger-proof fan guards

Product Highlights

This unit heater provides an efficient heating solution with its power vented propeller and direct spark ignition.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: HD100AS0121FBAN
• Country of Origin: USA

Technical Specifications

• Air Flow Rate: 1490 CFM at 70 Deg F
• Application: Commercial, Industrial, Residential
• Approval: ETL (Canada and US)
• Brand Name: Hot Dawg
• Capacity: 100000 BTU/Hour (Input), 82000 BTU/Hour (Output)
• Control Type: Thermostat
• Fan Motor Type: 1050 RPM SP Motor
• Finish: Polyester Powder Painted
• Heating Element: Aluminized Steel
• Material: 22 Gauge Aluminized Steel
• Mounting: Ceiling Mount
• Number Of Phases: 1
• Power Rating: 1/6 HP
• Type: Low Profile, Tubular Power Vented Propeller, 1-Stage
• Voltage Rating: 115 Volt AC 60 Hertz
• Ignition Type: Direct Spark
• Gas Type: Propane
• Gas Connection Size: 1/2 Inch Threaded
• Air Temperature Rise: 50 Deg F
• Applicable Standard: ANSI Z223.1
• BTU: 100000
• BTU Input: 100000
• BTU Output: 80000
• Entering Airflow (CFM) @ 70°F: 1490
• Max Mounting Height (ft): 12 feet
• Heat Throw: 42'
• Hertz: 60
• Phase: 1 Phase
• Voltage: 120
• Made in the USA: Yes
• Construction: Aluminized Steel
