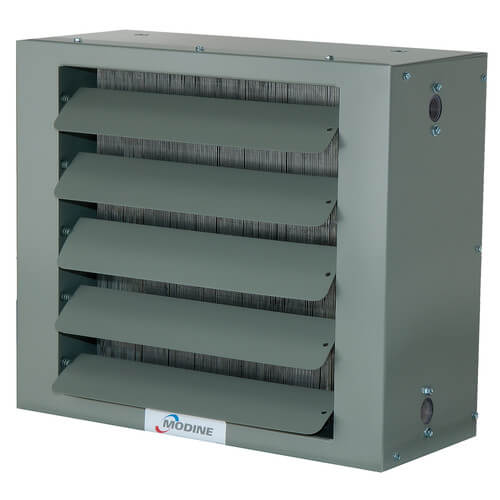

Modine HC63SB01SA Horizontal Hydronic Unit Heater 63000 BTU

Product Description

The Modine HC63SB01SA is a horizontal hydronic unit heater that delivers sixty-three thousand BTU. It is effective for heating in large spaces with low ceilings, such as warehouses and workshops. Designed to counteract heat loss along exterior walls, it serves as an efficient heating solution, especially in areas with windows.

• Features side supply and return connections for flexible installation.
• Constructed with a two-piece casing for easy access to the coil.
• Incorporates a serpentine copper tube coil for high thermal shock resistance.

Product Highlights

This unit offers a versatile heating option with exceptional efficiency and ease of maintenance.

Product Information

Standard Information

• Brand: Modine
• Model: HC63SB01SA
• Type: Hydronic Unit Heater
• BTU Output: 63000

Technical Specifications

• Weight: 40
• Shipping Depth: 14.8 inches
• Shipping Width: 14.35 inches
• Shipping Height: 13.8 inches
• Voltage: 115V
• Hertz: 60
• Phase: 1
• Horse Power: 1/25
• Connection Size: 1/2
• Air Flow Capacity: 370 CFM
• Freight Class: 85
