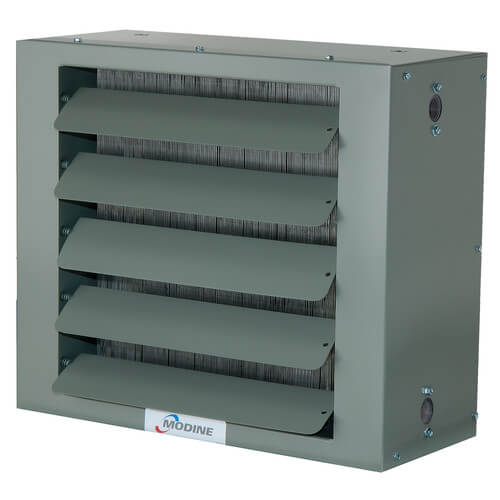

Modine HC24SB01SA Horizontal Hydronic Unit Heater - 24000 BTU

Product Description

The Modine HC24SB01SA is a horizontal hydronic unit heater with a heating capacity of 24000 BTU. This model is ideal for heating large open areas with low ceilings. It addresses heat loss along outside walls, particularly where windows are present. The design ensures efficient heating, making it suitable for various applications in commercial settings.

• Side supply and return connections
• Two-piece casing for easy coil access
• High resistance to thermal shock with serpentine copper tube coil design

Product Highlights

This unit heater includes features that enhance its reliability and effectiveness. It is designed for both steam and hot water applications, maximizing its versatility in different heating environments.

Product Information

Standard Information

• Brand: Modine
• MPN: HC24SB01SA

Technical Specifications

• BTU: 24000
• Type: Hydronic Unit Heater
• Hertz: 60
• Phase: 1
• Voltage: 115V
• Horse Power: 1/25
• Connection Size: 1/2 inch
• Air Flow Capacity (CFM): 370
