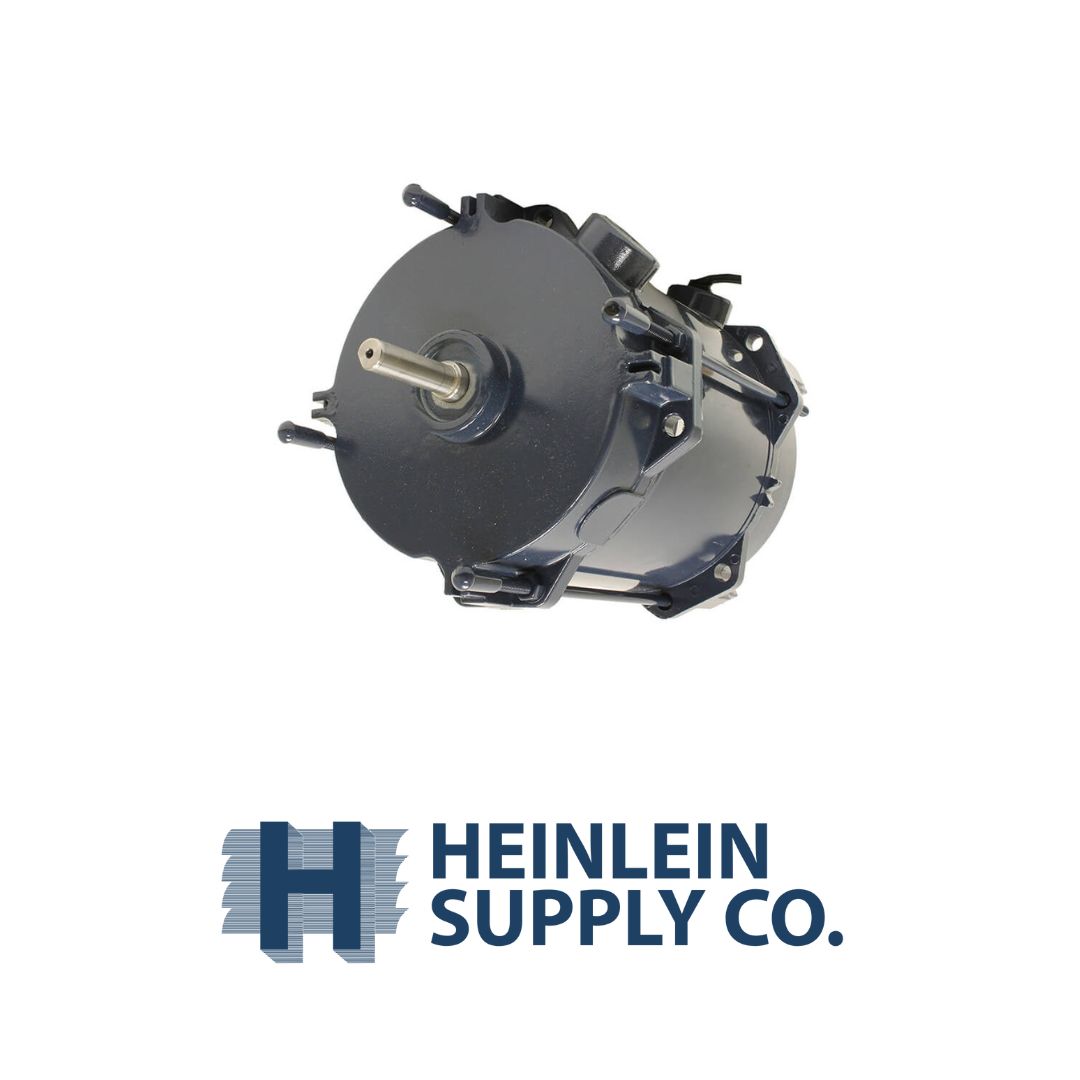

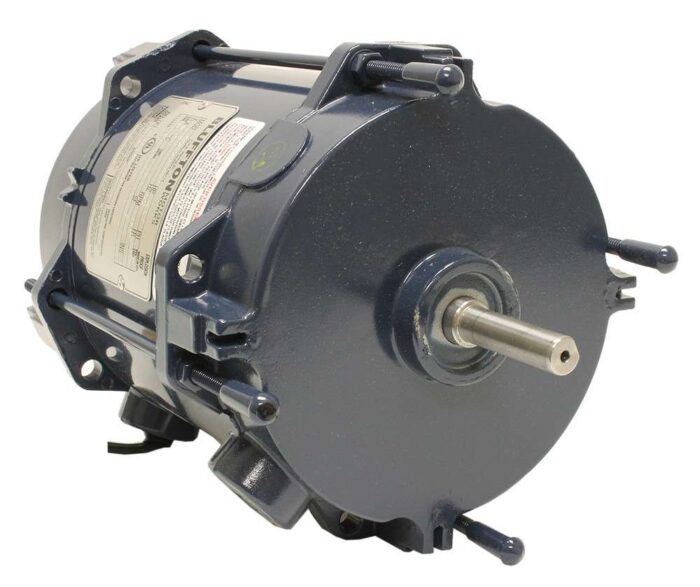

MODINE 9F70109 Explosion-Proof Motor 1/6 HP 115V 60Hz Replacement

Product Description

The MODINE 9F70109 is an explosion-proof motor suitable for hazardous environments. Designed to operate at 115 volts and 60 hertz, this motor delivers a power output of 1/6 horsepower with a rotation speed of 1725 RPM. It rotates clockwise when viewed from the shaft end and comes with a shaft that includes studs and wire leads for easy connection. This motor works effectively as a replacement for Modine HSB and HC series heating systems.

• Designed for explosion-proof environments
• Operates at 115V and 60Hz
• Rotation speed of 1725 RPM

Product Highlights

This motor is ideal for HVAC applications needing reliable performance in challenging conditions.

Product Information

Standard Information

• Brand: Modine
• MPN: 9F70109

Technical Specifications

• Horsepower: 1/6 hp
• Input Voltage: 115V
• Frequency: 60 Hz
• Output Current: 2.3 amps
• Speed: 1725 RPM
• Rotation: clockwise (when viewed from the shaft end)
• Shaft Size: 1/2 x 2 inches
• Case Length: 8 inches
• Mounting: 4 studs on the shaft end with 6-3/4 inch on-center spacing
• Wire Leads: 2 leads measuring 36 inches each
