MODINE 9F30205 Replacement Motor 1/10 HP

Product Description

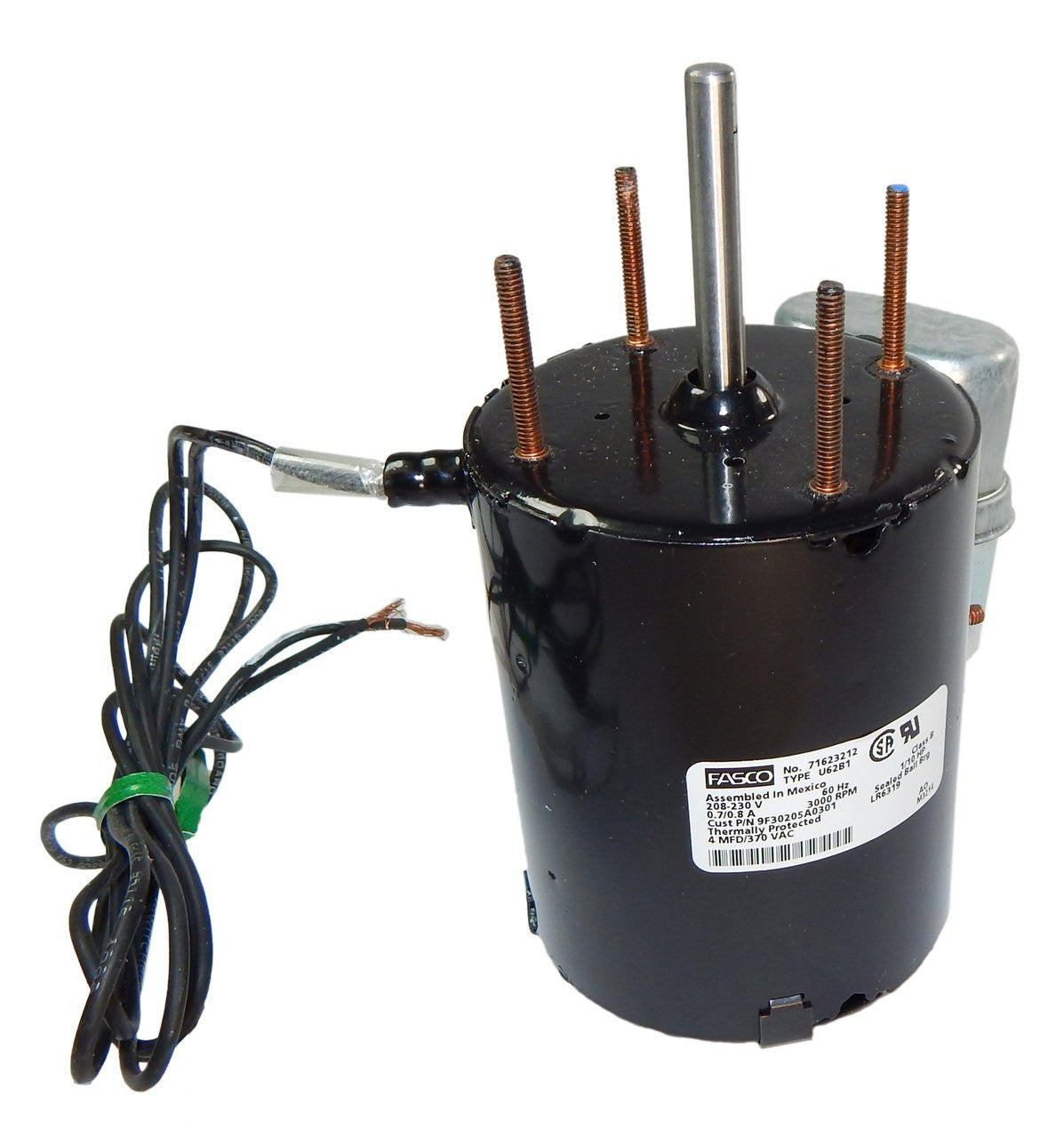

The MODINE 9F30205 is designed as a replacement motor for specific applications, operating on 208-230V 60Hz power. It delivers 1/10 horsepower and features a clockwise shaft end rotation at a speed of 3000 RPM. The motor's case has a diameter of 3.3 inches and a length of 4 inches. It includes a shaft measuring 5/16 x 2-1/8 inches, and is equipped with four studs located at the shaft end, spaced 2-5/8 inches apart. Additionally, the motor comes with two wire leads that are each 36 inches long.

• Operates at 3000 RPM.
• Features a shaft size of 5/16 x 2-1/8.
• Includes two 36-inch wire leads.

Product Highlights

This motor is ideal for HVAC systems that require reliable and efficient operation.

Product Information

Standard Information

• Brand: MODINE
• MPN: 9F30205

Technical Specifications

• Horsepower: 1/10 hp
• Input Voltage: 208-230V
• Frequency: 60Hz
• Output Current: 0.80 amps
• Speed: 3000 RPM
• Rotation: CW Shaft End
• Diameter: 3.3 inches
• Shaft Size: 5/16 x 2-1/8 inches
• Motor Case Length: 4 inches
• Studs: 4 studs at shaft end; 2-5/8 inches O.C.
• Wire Leads: 2 wire leads, 36 inches each
