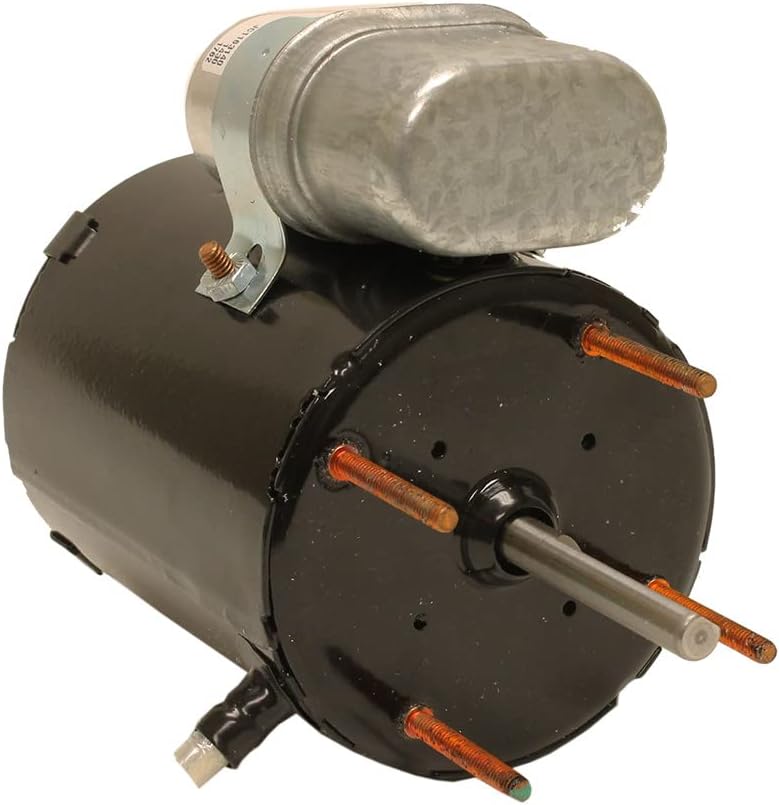

Modine 9F30204 Modine Inducer Motor 1/9 hp Permanent Magnet Motor

Product Description

The Modine Manufacturing 9F30204 is a reliable inducer motor designed for your HVAC needs. This permanent magnet motor operates efficiently at a power of one ninth horse and a voltage of one hundred fifteen volts. Ideal for various heating and ventilation applications, it features a speed of three thousand RPM and is built to last.

• 1/9 hp, 1.7 amps, 115V 60hz
• Rotation: Clockwise; Diameter: 3.3 inches
• Shaft dimensions: 5/16 x 1-7/8 inches; Case Length: 4-1/8 inches

Product Highlights

This motor serves as an integral part that helps facilitate air circulation in heating systems, ensuring that your space remains comfortable.

Product Information

Standard Information

• Manufacturer: Modine
• Part Number: 9F30204

Technical Specifications

• Speed: 3000 RPM
• Voltage: 115 Volts
• Weight: 4 pounds
• Package Dimensions: 8.5 x 4.8 x 4.8 inches
• Warranty: One Year
• Rotation Direction: Clockwise
• Wiring: 2 wire leads, 36 inches
• Stud Configuration: 4 studs on shaft end, 2.5 O.C.
