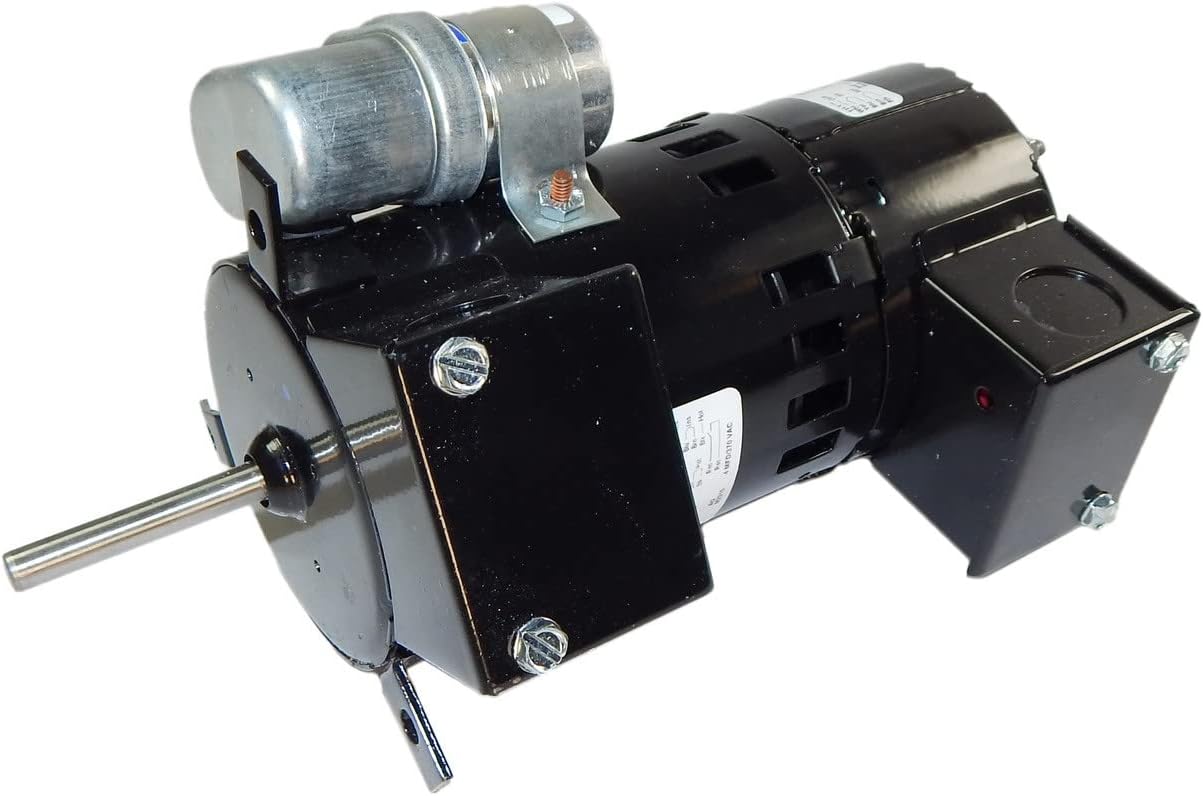

Modine 9F30194 Power Exhauster Motor 230 Volts 3000 RPM

Product Description

The Modine 9F30194 Power Exhauster Motor is a high-performance motor designed for venting applications. This motor operates at 3000 RPM and is rated at 230 volts. Key features include a 1/9 horsepower output and a compact design for various HVAC and industrial uses. It ensures efficient ventilation in different settings.

• 1/9 hp, 3000 RPM, 1.6/0.80 amps, 115/208-230V 60hz
• 3.3 diameter motor; motor case length 6-3/4 inches
• Rotation = CWSE; shaft: 5/16 x 2-1/8 inches

Product Highlights

Efficient motor for venting applications, designed by Modine. Compact and reliable with easy installation.

Product Information

Standard Information

• Brand: Modine
• MPN: 9F30194
• Voltage: 230 Volts
• Speed: 3000 RPM
• Horsepower: 1/9 hp

Technical Specifications

• Diameter: 3.3 inches
• Motor Case Length: 6-3/4 inches
• Rotation: CWSE
• Shaft: 5/16 x 2-1/8 inches
• Mount: 3 wing mount, 3-3/4 on center
• Wire Leads: 2 wire leads, 36 inches
• Switch: Centrifugal switch included
• Country of Origin: United States
