Modine 9F10247A Aftermarket Replacement Motor 115V REPLACEMENT 7163-3529

Product Description

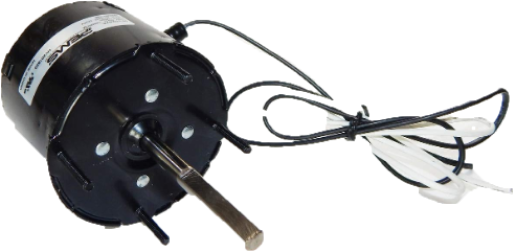

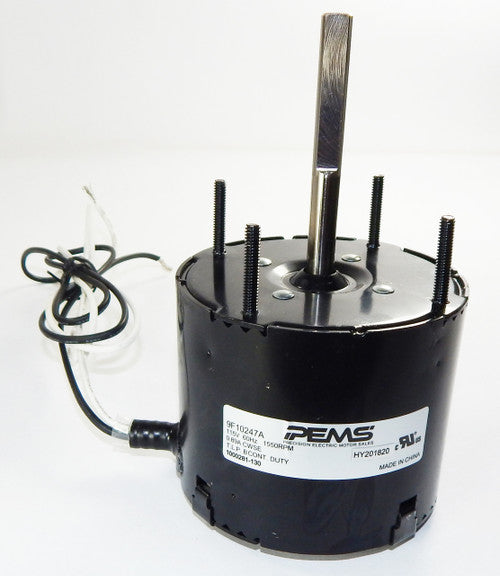

The Modine 9F10247A is an aftermarket replacement motor operating at 115V and 60Hz, delivering 0.89 amps and 1550 RPM. It features a CW shaft end rotation and a 3.3" diameter. This motor is designed as a direct replacement for Modine PD, PDP, and PV Series 30 & 50 KBTU unit heaters.

• Aftermarket replacement motor
• Direct Replacement for Modine PD, PDP, and PV Series 30 & 50 KBTU Unit Heaters.
• Compatible Equipment Type: Unit Heater, HVAC, Blower

Product Highlights

This 115V motor is designed for Modine PD, PDP, and PV Series 30 & 50 KBTU unit heaters.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 9F10247A
• Country of Origin: United States

Technical Specifications

• Amperage: 0.89 Amps
• Voltage: 115V
• RPM: 1550 RPM
• Rotation Direction: CW Shaft End
• Diameter: 3.3"
• Shaft: 5/16" x 2.5"
• Case Length: 2.75"
• Mounting Type: 4 Studs on Shaft End
• Wire Leads: 2 wire leads 36"
• Bearings: Sleeve Bearings
• Warranty: 1 Year
• Hertz: 60 Hz
• Shaft Type: Single Shaft
• Number of Speeds: 1
• BTU Rating Compatibility: 30,000 & 50,000 BTU
• Compatible Equipment Make: Fasco, Modine, Universal Electric
• Motor Diameter: 3.3 in (83.82 mm)
• Part Type: Motor
