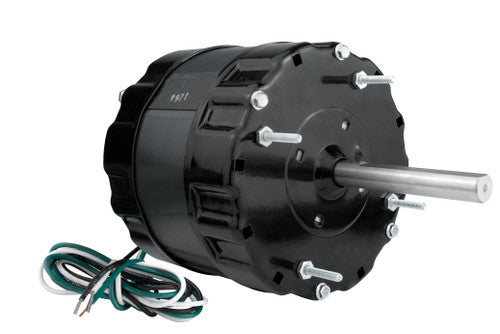

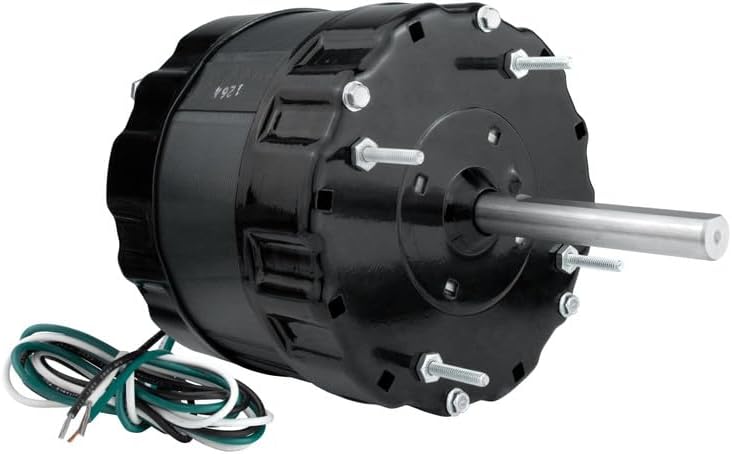

Modine 9F10135A aftermarket replacement motor 1/15HP replacement 9F0101350000

Product Description

The MODINE 9F10135A is a direct aftermarket replacement motor for Modine 9F0101350000. This motor operates at 115V and 60HZ, delivering 1/15HP with a speed of 1075 RPM and 2.6 amps. It features a clockwise shaft end rotation and is designed for easy installation with 4 studs on the shaft end at 3-7/8" O.C.

• Direct OEM aftermarket replacement
• 1/15HP, 2.6 amps, 1075 RPM
• Shaft: 1/2" X 3-1/8"

Product Highlights

This aftermarket replacement motor is made from high-quality material and has been thoroughly tested to meet OEM standards. It is a reliable choice for various applications including PV125, PAE125, PA105, PA130, FP125, FX125, PAH190, PA130.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 9F10135A

Technical Specifications

• Brand: ELECTRIC MOTOR WAREHOUSE
• Speed: 1075 RPM
• Voltage: 115 Volts
• HP: 1/15
• Amps: 2.6
• Rotation: CW Shaft End
• Shaft: 1/2" X 3-1/8"
• Diameter: 5"
• Case Length: 4-3/8"
• Studs-shaft end: 4
• Studs O.C.: 3-7/8"
• Wire Leads: 2 wire leads 33"
