Modine 63349 Replacement Motor 1/12 HP REPLACEMENT 9F0302260000

Product Description

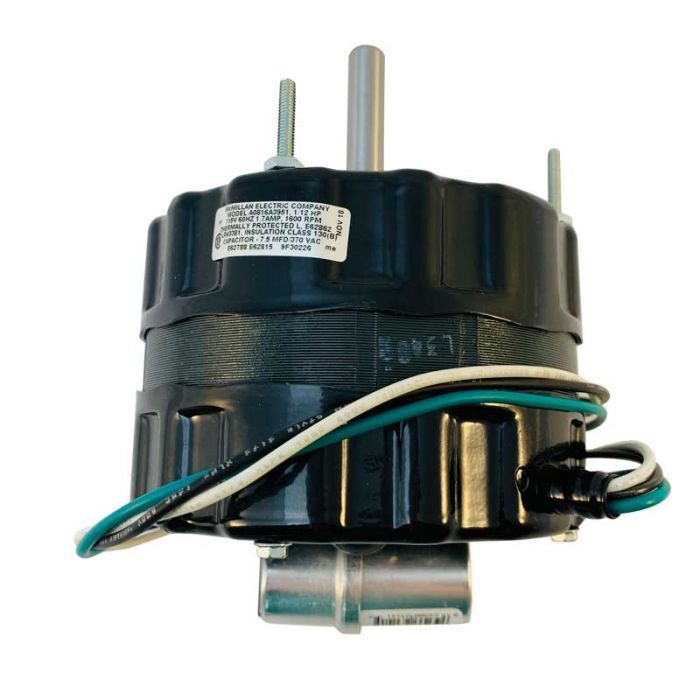

The Modine 63349 replacement blower motor is designed for various applications. This 1/12 HP motor operates at 115V and 60Hz, delivering 1.7 amps and 1600 RPM. It features a 5" diameter, a 1/2" x 2-1/4" shaft dimension, and a 3.33" case length. Includes capacitor and has 4 stud mounting and thermal protection.

• Alternative part number 9F0302260000
• Thermally protected with CWSE rotation
• Includes capacitor and 2 wire leads 36"

Product Highlights

The Modine 63349 replacement motor is a 115V, 1/12 HP motor with 4 stud mounting and thermal protection. It is designed as a replacement for 9F30198, A0816A3951, A0816A3382.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 63349

Technical Specifications

• MPN: 63349
• Manufacturer Part Number: 63349
• Manufacturer: Modine
• Height (Inches): 8"
• Length (Inches): 3.33"
• Width (Inches): 8"
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Voltage Rating: 115 V
