Modine 56147 Natural Gas Valve 0.75 Inch 24 Volt

Product Description

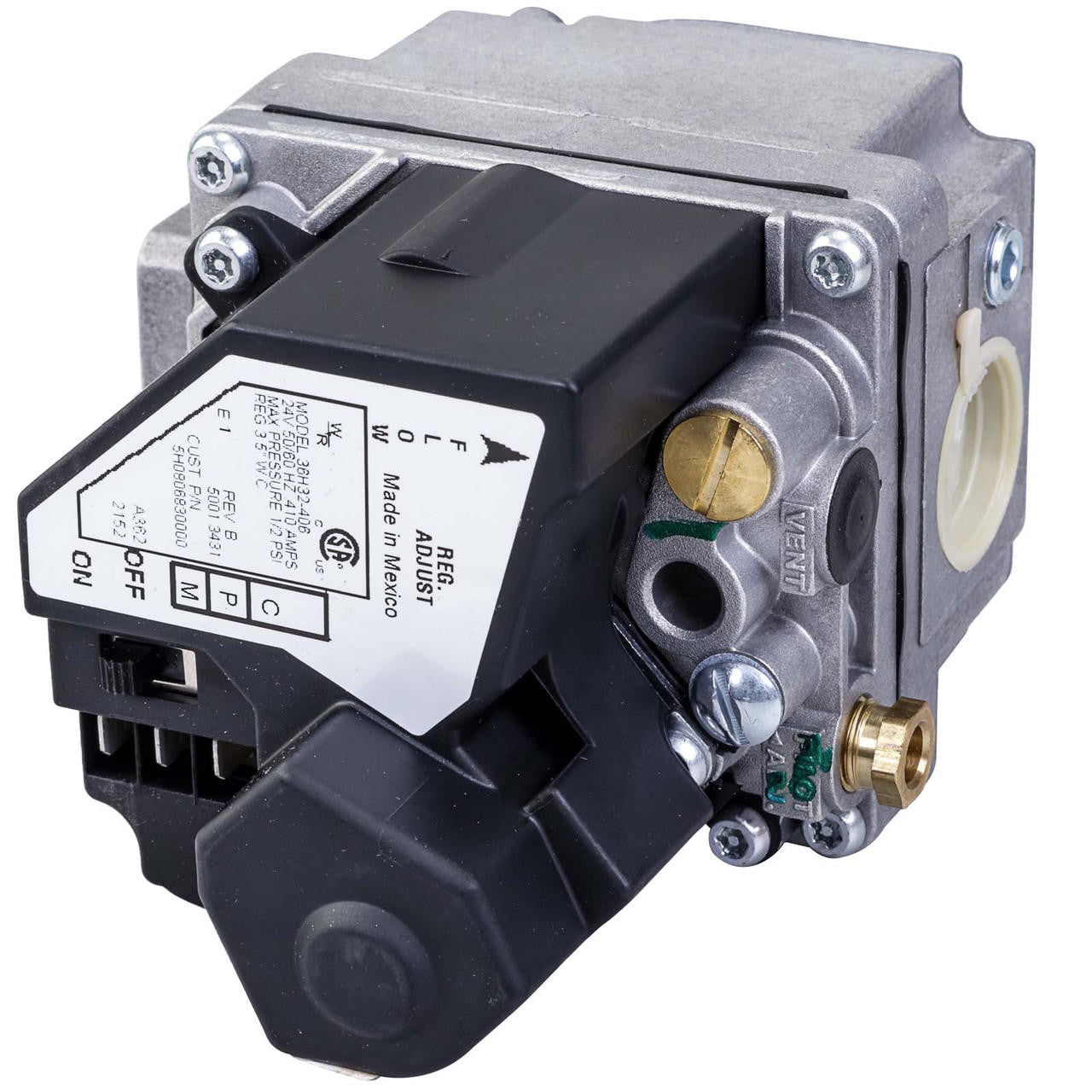

The MODINE 56147 is a natural gas valve designed for use in gas-fired heating equipment where precise fuel control is required. Operating at 24 volts and 50/60 Hz single-phase power, this valve draws 0.410 amps and handles a maximum inlet pressure of 0.5 psi with a regulated outlet pressure of 3.5 inches water column (W.C.). The 0.75-inch valve body connects directly to the gas train in the heating appliance. It serves as an OEM-compatible replacement for the White Rodgers 36H32-406 (REV B) and carries the alternative Modine part number 5H0806830000. Licensed HVAC and gas technicians perform this type of replacement during routine heating system service or component failure diagnosis.

This valve is used in gas-fired unit heaters and similar commercial or industrial heating equipment where Modine specifies an OEM White Rodgers gas valve. The 56147 is a direct replacement for applications originally equipped with the White Rodgers 36H32-406 REV B or Modine part number 5H0806830000. It is suited to systems running natural gas supply at or below 0.5 psi inlet pressure with a regulated output of 3.5 inches W.C., which is typical for many natural gas burner assemblies.

Key Features

• Natural gas valve rated for 24-volt, 50/60 Hz, single-phase control circuits
• 0.75-inch valve body for standard gas train connections
• Maximum inlet pressure: 0.5 psi; regulated outlet pressure: 3.5 inches W.C.
• Low coil draw at 0.410 amps reduces control circuit load
• OEM replacement for White Rodgers 36H32-406 REV B
• Also cross-references Modine part number 5H0806830000

Compatibility

Direct OEM-style replacement for applications originally equipped with White Rodgers 36H32-406 (REV B) or Modine part number 5H0806830000, as specified by Modine for use in natural gas heating equipment. Cross-reference part number 50013431 also applies.

Installation Notes

Gas valve replacement must be performed by a licensed HVAC technician or qualified gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the manual gas supply and de-energize the unit at the disconnect before beginning any work. Leak-test all fittings with an approved gas leak detection solution after reinstallation and before restoring power. Do not exceed the rated maximum inlet pressure specified for this valve.

Technical Specifications

• Fuel Type: Natural Gas
• Valve Size: 0.75 inches
• Control Voltage: 24 volts
• Frequency: 50/60 Hz
• Phase: Single Phase
• Coil Amperage: 0.410 amps
• Maximum Inlet Pressure: 0.5 psi
• Regulated Outlet Pressure: 3.5 inches W.C.
• OEM Replaced Part: White Rodgers 36H32-406 REV B
• Alternate Part Number: 5H0806830000

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 56147
