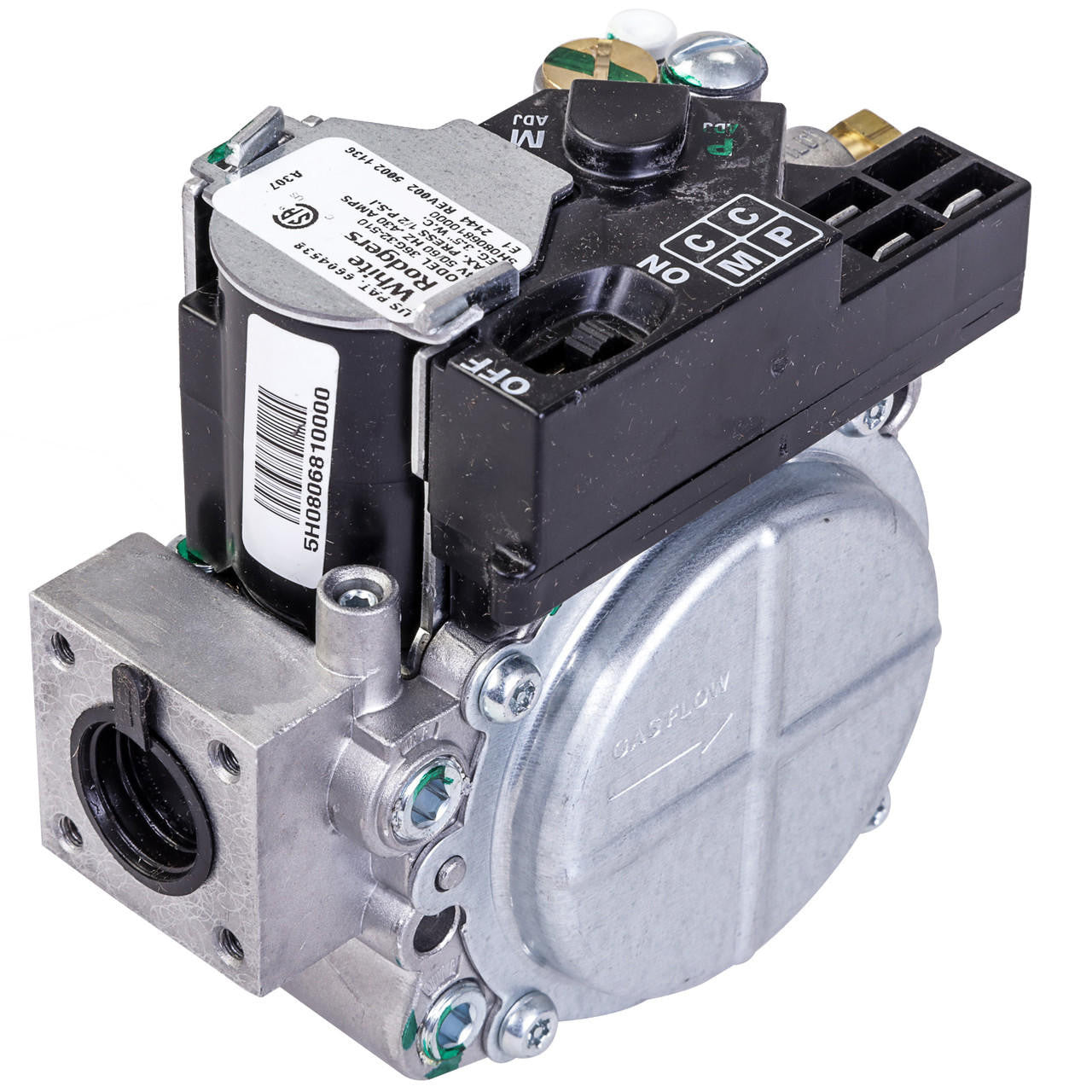

Modine 56145 Combination Gas Control Pilot Valve Natural Gas

Product Description

The MODINE 56145 is a combination gas control and pilot valve designed for natural gas-fired unit heaters. Operating on 24 volts at 50/60 Hz single phase, it draws 0.430 amps and regulates outlet pressure at 3.5 inches water column with a maximum inlet pressure of 0.5 psi. The valve features a 0.5-inch connection and serves as a direct OEM-style replacement for gas-fired commercial and industrial unit heaters. Installation is performed by licensed HVAC technicians or gas service professionals as part of gas control system service or replacement work. This part also carries the alternate part number 5H0806810000.

The MODINE 56145 is used in gas-fired unit heaters across a wide range of residential, commercial, and industrial heating applications. It is suited for suspended and cabinet-style unit heaters in warehouses, garages, loading docks, and similar spaces where direct-fired gas heat is required. Compatible model families span decades of production, including BA, BAE, BAH, BD, BDP, BV, CP, CX, DB, DC, DF, DH, DJ, FX, HB, HC, HD, HF, HP, PA, PAE, PAH, PD, PDP, PV, WB, WD, WH, WS, and related series as listed below. Replaces MODINE 5H71927.

Key Features

• Combination gas control and pilot valve in a single unit — simplifies service and reduces component count
• Rated for natural gas service at a regulated outlet pressure of 3.5 inches water column
• 24-volt, 50/60 Hz, single-phase coil — compatible with standard low-voltage thermostat control circuits
• 0.5-inch gas connection — matches original OEM port sizing on supported unit heater models
• Maximum inlet pressure 0.5 psi — suitable for standard residential and commercial low-pressure gas supply systems
• Direct replacement for MODINE 5H71927; alternate part number 5H0806810000

Compatibility

Fits MODINE gas-fired unit heater models: BA50 (before 1/1/84 - Before 1/1/80), BA50 (before 1/1/84 - After 1/1/80), BA50 (1/84 thru 9/86), BA50 (After 10/1/86), BA75 (before 1/1/84 - Before 1/1/80), BA75 (before 1/1/84 - After 1/1/80), BA75 (1/84 thru 9/86), BA75 (After 10/1/86), BA105, BA130, BA150, BA170, BA174, BA175, BA200 (After 10/1/86), BA300, BAE50, BAE75, BAE100, BAE125, BAE145, BAE175, BAE200, BAH55, BAH90, BAH110, BAH130, BAH150, BAH180, BD50, BD75, BD100, BD125, BD150, BD175, BD200, BDP50, BDP75, BDP100, BDP125, BDP150, BDP175, BDP200, BDP250, BDP300, BDP350, BSH130, BSH150, BSH170, BV50, BV75, BV100, BV125, BV145, BV175, BV200, CP50, CP75, CP100, CP125, CP145, CP175, CP200, CX50, CX75, CX100, CX125, CX145, CX175, CX200, DBG75 through DBG200, DBP75 through DBP200, DBS75 through DBS200, DCG75 through DCG200, DCP75 through DCP200, DCS75 through DCS200, DFG75 through DFG200, DFP75 through DFP200, DFS75 through DFS200, DHE75, DHE100, DHE125, DHE126, DHE150, DHE200, DHE201, DJE75, DJE100, DJE125, DJE126, DJE150, DJE200, DJE201, FX30, FX50, FX75, FX100, FX125, FX145, FX175, FX200, HBG75 through HBG200, HBP75 through HBP200, HCG75 through HCG200, HCP75 through HCP200, HDG75 through HDG200, HDP75 through HDP200, HFG75 through HFG200, HFP75 through HFP200, HPG75 through HPG200, HPP75 through HPP200, PA30, PA50, PA75, PA105, PA130, PA150, PA165, PA170, PA175, PA200, PA300, PAE30, PAE50, PAE75, PAE100, PAE125, PAE145, PAE175, PAE200, PAH40, PAH55, PAH90, PAH110, PAH130, PAH150, PAH180, PD30 through PD200, PDP30 through PDP350, PSH130, PSH150, PSH170, PV30 through PV200, WBG75 through WBG201, WBP75 through WBP201, WDG75 through WDG201, WDP75 through WDP201, WHE30, WHE50, WHE75, WHE100, WHE125, WHE150, WHEP100, WHEP125, WHEP150, WSG75 through WSG201, WSP75 through WSP201. Replaces MODINE 5H71927.

Installation Notes

Gas valve replacement must be performed by a licensed HVAC technician or qualified gas service professional in accordance with local codes and the IFGC. Shut off the main gas supply and disconnect 24-volt control power before removing the existing valve. Verify inlet and outlet pressure settings with a manometer after installation to confirm regulated output meets equipment specifications. Do not overtighten gas fittings; use an approved pipe sealant rated for natural gas on all threaded connections.

Technical Specifications

• Gas Type: Natural Gas
• Valve Type: Combination Gas Control and Pilot Valve
• Connection Size: 0.5 inches
• Control Voltage: 24 volts, 50/60 Hz, 1-phase
• Current Draw: 0.430 amps
• Regulated Outlet Pressure: 3.5 inches water column
• Maximum Inlet Pressure: 0.5 psi
• Alternate Part Number: 5H0806810000
• Replaces: MODINE 5H71927

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 56145
