Modine 48404 circuit board 5H78126-1

Product Description

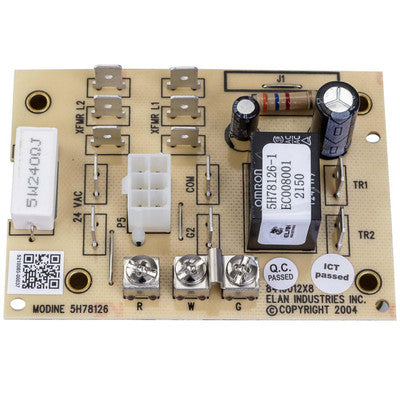

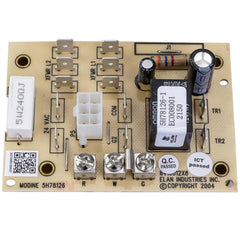

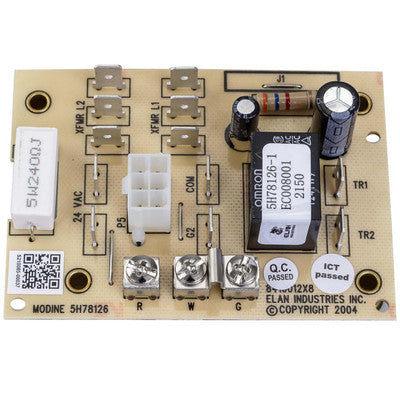

The Modine 48404 is an original OEM Circuit Board, also identified as 5H78126-1. This component functions as a Time Delay Relay Board, crucial for controlling electrical systems. It is compatible with Modine HD and HDS units, including models HD30AH01, HD45AH01, HD60AH01, and HD75AH01. The board features a jumper between W and G terminals and wiring in the J1 box, ensuring precise operation. It is also known by alternative part numbers 5H0781260001 and OEM Elan Part 8410012X8.

• Functions as a Time Delay Relay Board.
• Compatible with Modine HD and HDS units, including specific HD models.
• Features a jumper between W and G terminals and wiring in the J1 box.

Product Highlights

Original OEM Modine 48404 circuit board, functioning as a time delay relay for HD and HDS units.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 48404

Technical Specifications

• Brand: Modine
• MPN: 48404
• Part Number: 5H78126-1
• Alternative Part Number: 5H0781260001
• OEM Elan Part: 8410012X8
• Other Part Numbers: EC008001
• Terminal Board Series: 103
• Compatible Models: HD30AH01, HD45AH01, HD60AH01, HD75AH01
• Unit Compatibility: HD & HDS Units
