Modine 32258 Power Exhaust Assembly 115V (5H75038) 5H75038

Product Description

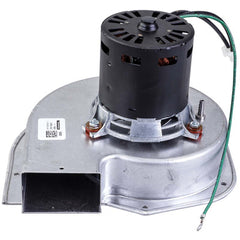

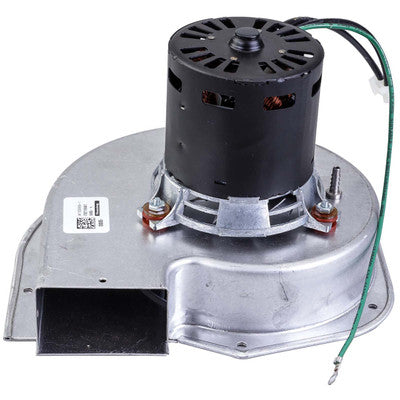

Modine 32258 is a power exhaust assembly designed for 115V operation and corresponds to Modine part number 5H75038. The assembly serves as the exhaust fan module for specified Modine gas-fired unit heaters and includes an OEM Fasco 702110461 motor and a Beckett air fan wheel with housing. The motor is rated 115 V, 60 Hz, 0.95 A and 3000 RPM to provide forced-air exhaust for compatible HD, IPT, and TLP series models.

• Original OEM power exhaust assembly for Modine models, designed for 115V operation and listed as Modine part 5H75038.
• Includes Fasco 702110461 motor (Type U21B, LR36496) rated 115 V, 60 Hz, 0.95 A, 3000 RPM.
• Includes Beckett air fan wheel with housing JK8352531-59; fits multiple Modine HD, IPT, and TLP series unit heater models.

Product Highlights

OEM Modine power exhauster assembly for gas-fired unit heaters; includes Fasco motor and Beckett fan wheel; 115V, 60 Hz operation.

Product Information

Standard Information

• Brand: MODINE
• Manufacturer Part Number: 32258

Technical Specifications

• Brand: Modine
• Manufacturer Part Number (MPN): 32258
• Replacement Part Number: 5H75038
• Product Type: Power Exhaust Assembly
• Input Voltage: 115 V
• Included Motor: Fasco 702110461 (Type U21B, LR36496)
• Motor Voltage: 115 V
• Motor Frequency: 60 Hz
• Motor Current: 0.95 A
• Motor Speed: 3000 RPM
• Fan Wheel and Housing: Beckett air fan wheel, housing JK8352531-59
• Compatible Models: Modine HD30, HD45, HD60, HD75 (before 5/07 - hot surface ignition), IPT50, IPT60, TLP50, TLP60, TLP75, TLP85, TLP100, TLP125, TLP150, TLP175, TLP200, HD30AH01, HD45AH01, HD60AH01, HD75AH01
