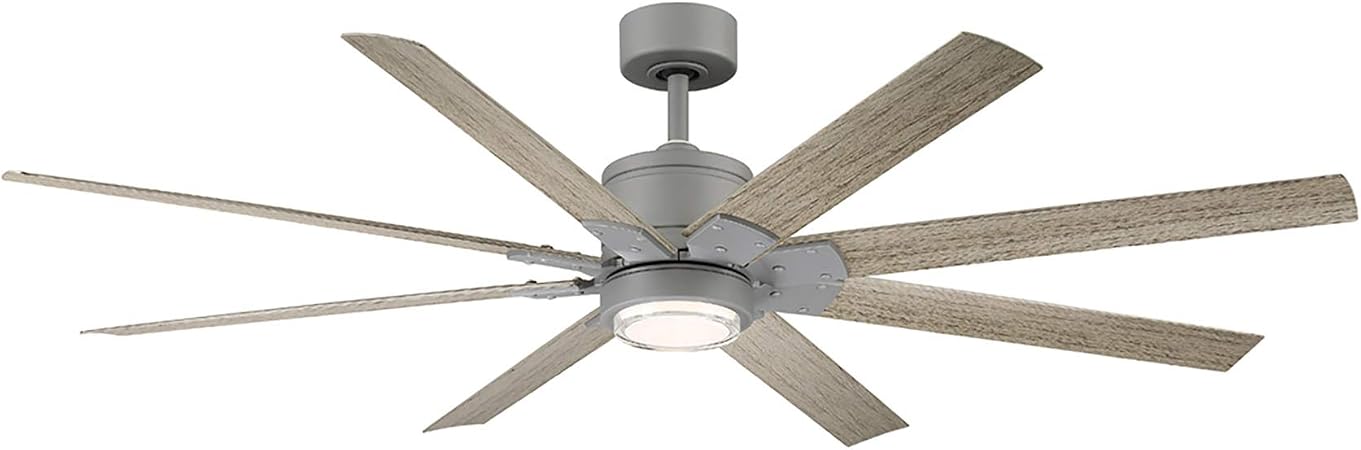

Modern Forms FR-W2001-52L-GH/WW Renegade 19.5W 52in FR-W2001-52L-GH/WW

Product Description

Modern Forms FR-W2001-52L-GH/WW is the Renegade 52 indoor/outdoor ceiling fan featuring a wet-rated, weather-resistant aluminum housing and an integrated 19.5W LED. The fan uses a silent brushless DC motor with up to 70% improved energy efficiency versus traditional AC motors and delivers high airflow (up to 7,445 CFM). It includes Bluetooth remote control and app-based smart home integration for speed, scheduling, and light control.

• Wet-rated aluminum housing for indoor or covered outdoor installation; Energy Star certified.
• Brushless DC motor, factory-balanced, six speeds, high airflow up to 7,445 CFM.
• Integrated 19.5W LED (approx. 1,600 lumens), 3000K standard, 90 CRI, rated 50,000 hours; Bluetooth remote and smart app control.

Product Highlights

52-inch wet-rated smart ceiling fan with 19.5W integrated LED, DC motor, up to 7,445 CFM, Bluetooth remote and broad smart home compatibility

Product Information

Standard Information

• Brand: MODERN FORMS
• Manufacturer Part Number: FR-W2001-52L-GH/WW
• Country of Origin: China

Technical Specifications

• Brand: Modern Forms
• Manufacturer Part Number: FR-W2001-52L-GH/WW
• Model Name: Renegade 52
• Blade Span: 52 inches
• Number of Blades: 8
• Blade Material: ABS (resin coated blades reported)
• Housing Material: Weather-resistant aluminum
• Motor Type: Brushless DC motor
• Motor Power (Watts): 33 W
• LED Power (Watts): 19.5 W
• LED Lumens: 1600 lumens
• Delivered Lumens: 887 lumens
• Color Temperature: 3000K (2700K and 3500K options available)
• CRI: 90
• Input Voltage: 120 VAC, 50/60 Hz
• Rated LED Life: 50,000 hours
• Airflow (High CFM): 7445 CFM
• Average / Weighted Airflow: 4680 CFM (weighted average reported)
• Number of Speeds: 6
• Mounting Type: Downrod mount
• Control Type: App control, Bluetooth remote (included); optional hardwired wall control
• Remote Included: Bluetooth remote control (battery powered) with wall cradle
• Smart Integration: Works with Google Assistant, Amazon Alexa, Samsung SmartThings, Control4, Josh.ai; Modern Forms app support
• Location Rating: Wet-rated (suitable for indoor or covered outdoor use)
• Dimmable: Yes (integrated LED dimmable)
• Reversible Motor: Yes
• Dimensions: 52" diameter x 14.82" H (overall height may vary with downrod/installation)
• Weight: Approximately 20.32 to 23 lbs (varies by source)
• Certifications: Energy Star, UL, Wet Rated, Title 24, Title 20 (additional certifications reported: FCC, cUL, CSA CAN)
• Included Components: Fan blades, motor, smart receiver, light kit, mounting hardware, 6in downrod, Bluetooth remote, installation instructions
