Modern Forms FMW256605S-BK Tuck II LED 13.2W (5.38 inch / RPL-GLA-W256605)

Product Description

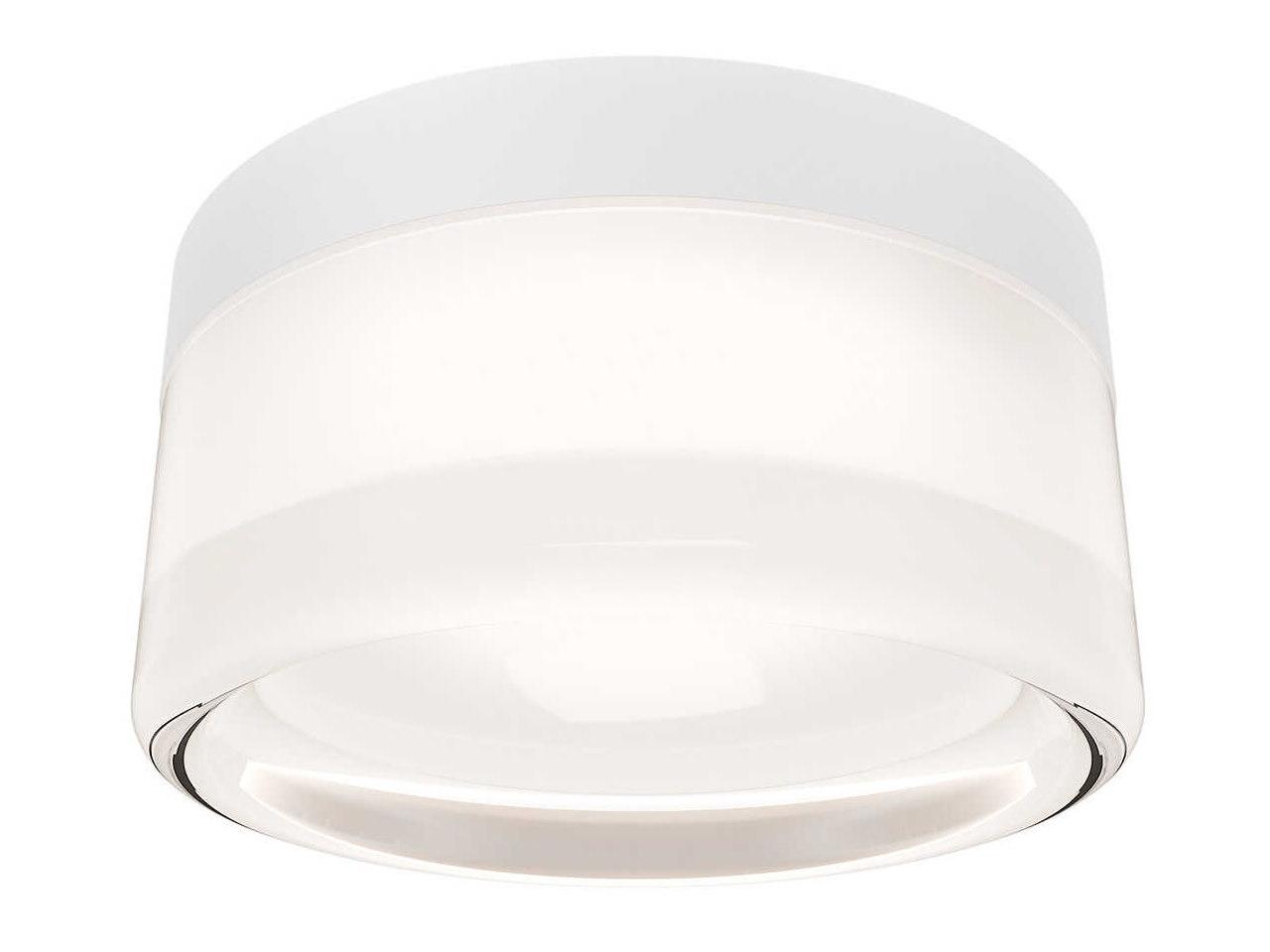

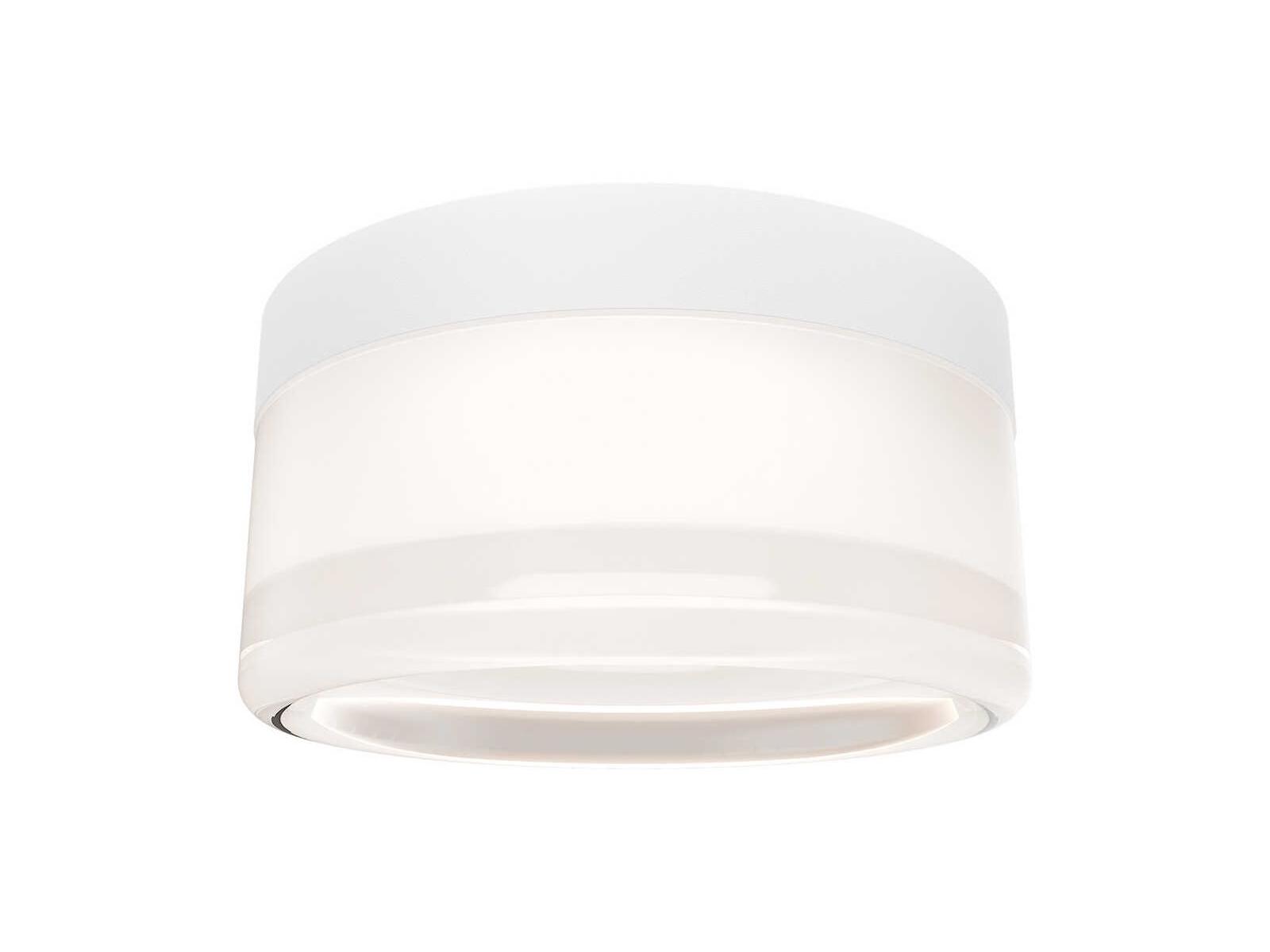

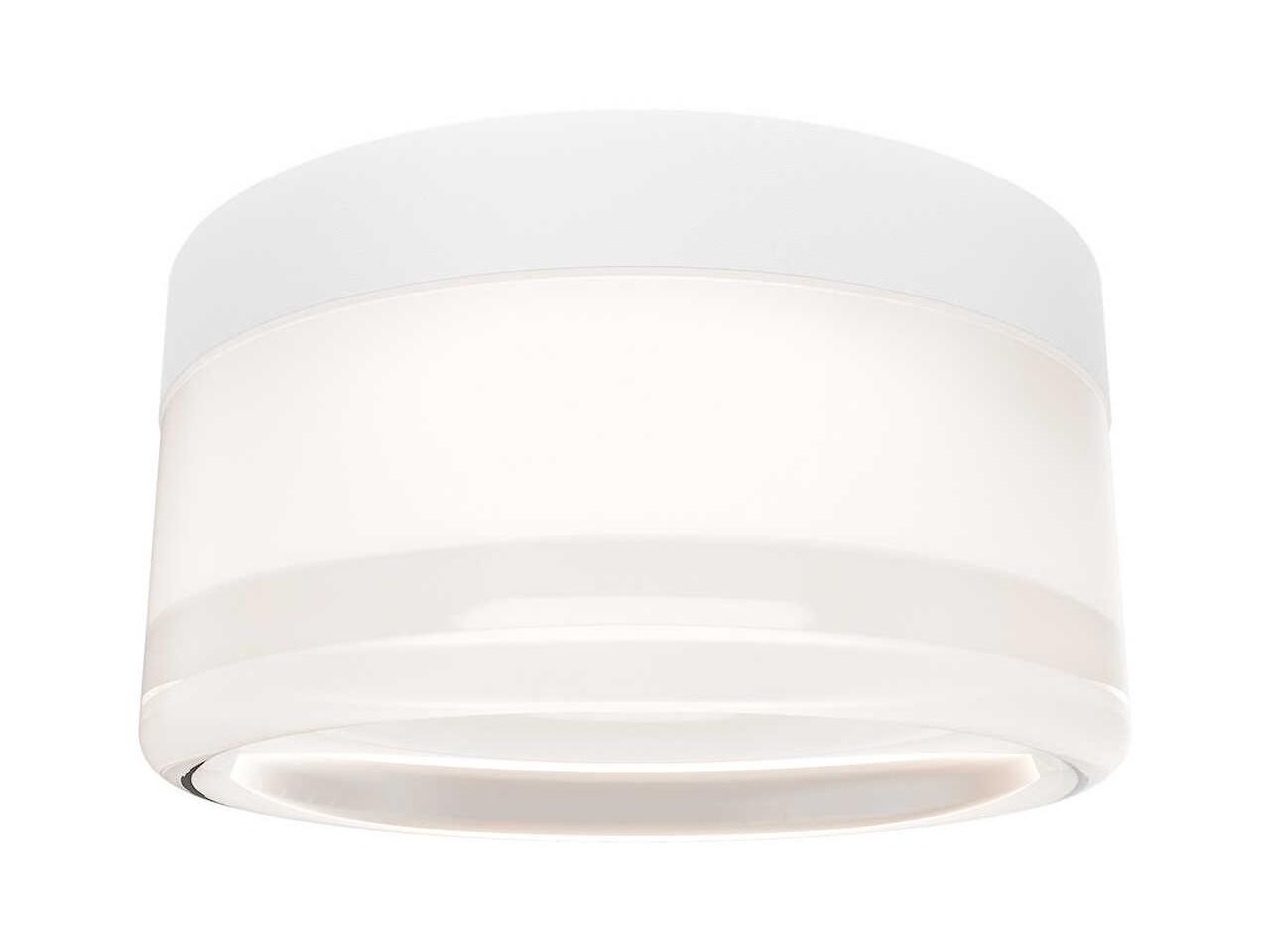

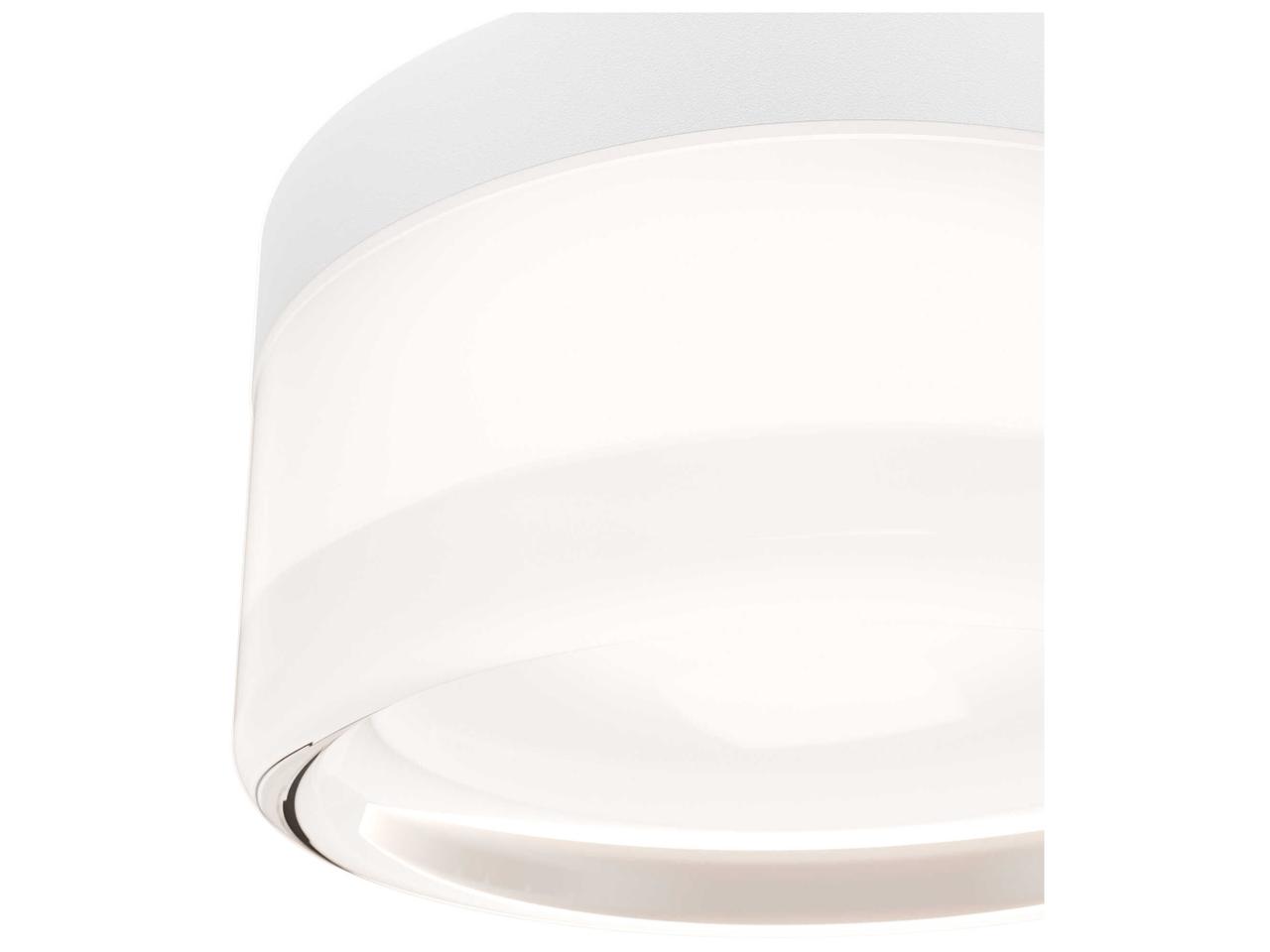

The Modern Forms FMW256605S-BK is a compact outdoor LED flush mount integrating a 13.2W LED module that produces 1,125 lumens (616 delivered) at 3000K with a CRI of 90. The fixture features a die-cast aluminum body with a concave injection-molded polycarbonate shade, universal input voltage driver, and smooth continuous dimming (ELV/TRIAC). It is wet and sauna rated, ADA compliant, and convertible for ceiling or wall mounting for patios, porches, and wellness spaces.

• Integrated 13.2W LED module, 3000K, CRI 90, rated ~54,000 hours; 1,125 lumens (616 delivered)
• Universal input voltage driver (typically 120-277V) with smooth continuous dimming (ELV/TRIAC)
• Wet location and sauna rated; ADA compliant; ETL/cETL and Title 24/20/CEC certifications

Product Highlights

Compact 5.38-inch outdoor flush mount with die-cast aluminum construction, concave polycarbonate diffuser, and replaceable shade RPL-GLA-W256605.

Product Information

Standard Information

• Brand: MODERN FORMS
• Manufacturer Part Number: FMW256605S-BK
• Country of Origin: China

Technical Specifications

• Brand: Modern Forms
• Manufacturer Part Number: FMW256605S-BK
• Product Name: Tuck II LED Outdoor Flush Mount
• Collection: Tuck II
• Wattage: 13.2 W
• Input Voltage: 120-277 V (Universal)
• Driver: Universal input voltage driver (fits on pancake junction box)
• Dimmable: ELV / TRIAC (smooth continuous dimming)
• Lumens: 1125 (source)
• Delivered Lumens: 616 (delivered)
• Efficacy: 47 lm/W (based on delivered lumens)
• Color Temperature: 3000K
• Color Rendering Index (CRI): 90
• Rated Life: 54,000 hours
• Beam Spread: Flood
• Material: Die-cast aluminum
• Shade Material: Injection-molded polycarbonate (concave)
• Mounting Type: Ceiling / Wall (convertible)
• Location Rating: ETL/cETL Wet; Sauna rated
• ADA Compliant: Yes
• Dimensions: 5.38 in diameter x 2.75 in height
• Weight: 1.5 lbs
• Certifications: ETL, cETL, Title 24, Title 20, CEC Compliant
• Replacement Shade: RPL-GLA-W256605
• UPC: 197179255833
• Country of Origin: China
