Mm Manufacturing DP-66X32-22GW Welded Drain Pan 66x32 22GA

Product Description

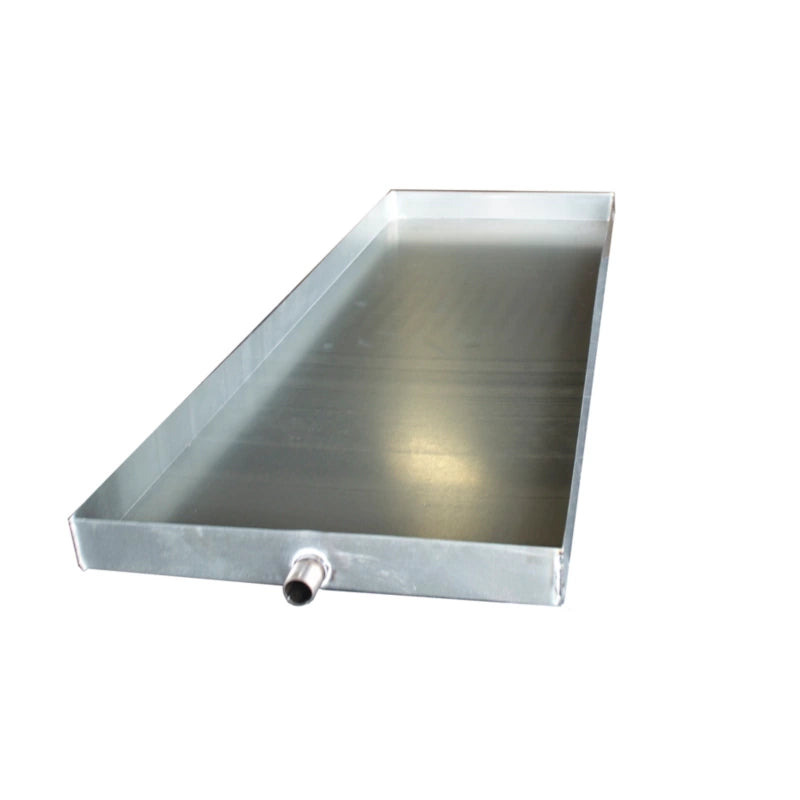

The MM MANUFACTURING DP-66X32-22GW is a welded galvanized steel drain pan designed to collect condensate beneath air handlers and furnaces with coils. Measuring 66 inches in length, 32 inches in width, and 2 inches in height, this pan is fabricated from 22-gauge galvanized steel and includes a single 3/4-inch drain connection. The welded construction minimizes leak points compared to seamed alternatives, making it a reliable option for HVAC installations where condensate management is a code or equipment requirement. Licensed HVAC technicians and sheet metal contractors are the typical installers.

This drain pan is intended for use with residential and light commercial air handlers or furnaces equipped with evaporator coils. The large 66 by 32-inch footprint accommodates equipment with wider cabinets or horizontal installations where a full-length secondary pan is required. Its galvanized finish provides corrosion resistance appropriate for the wet environment created by normal condensate accumulation during cooling season operation.

Key Features

• 22-gauge galvanized steel construction provides corrosion resistance in condensate environments
• Welded seams reduce leak risk compared to mechanically seamed pans
• Single 3/4-inch drain connection for standard condensate line hookup
• Large 66 x 32-inch footprint suits wide-cabinet air handlers and horizontal coil applications
• 2-inch depth provides adequate condensate holding capacity during high-load conditions
• Manufactured in the USA

Compatibility

Designed for use with air handlers or furnaces with evaporator coils requiring a secondary or primary condensate drain pan. No specific model numbers were provided in the product data.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal contractors. Power down the air handler or furnace at the disconnect before positioning the drain pan. Ensure the drain connection is properly pitched toward the condensate line to prevent standing water buildup. Local mechanical codes and equipment manufacturer requirements should be consulted to confirm pan sizing and drain line specifications.

Technical Specifications

• Length: 66 inches
• Width: 32 inches
• Height: 2 inches
• Weight: 25 pounds
• Gauge: 22 GA
• Material: Galvanized Steel
• Color: Silver
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• For Use With: Air Handler or Furnace with Coil
• Country of Origin: USA

Standard Information

• Brand: MM MANUFACTURING
• Manufacturer Part Number: DP-66X32-22GW
