Mm Manufacturing DP-60X32-26CF Drain Pan 60x32 in 26GA

Product Description

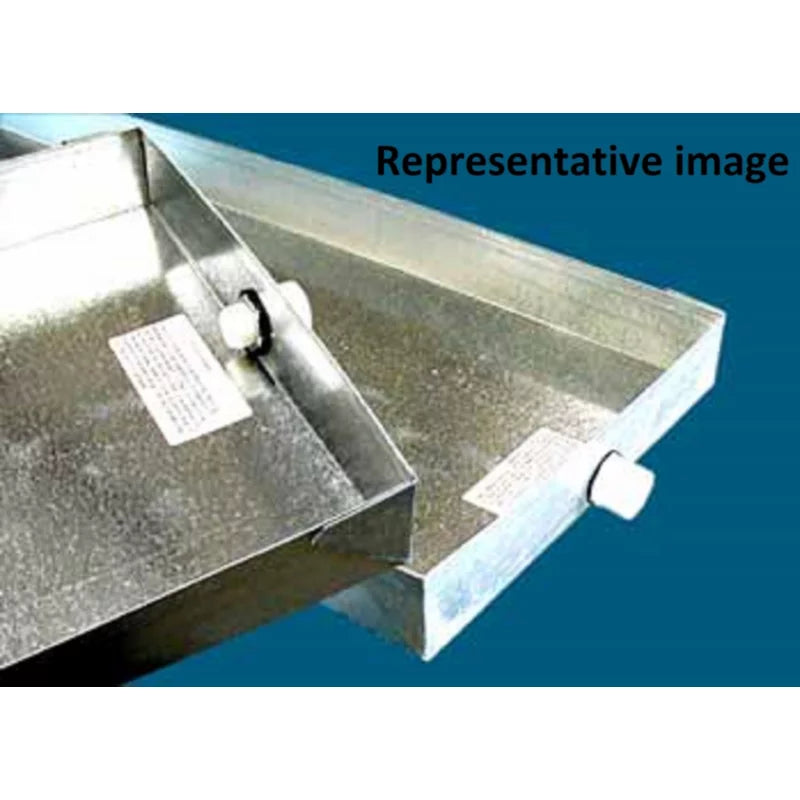

The MM Manufacturing DP-60X32-26CF is a galvanized steel drain pan designed to collect condensate beneath air handlers and furnaces equipped with evaporator coils. Constructed from 26-gauge galvanized steel, the pan measures 60 inches wide by 32 inches deep by 2.5 inches tall and weighs 13.6 pounds. A single 3/4-inch copper male adapter drain connection is pre-installed for direct tie-in to condensate drain lines. This pan is manufactured in the USA and is suited for installation by HVAC technicians in residential and light commercial applications where code requires secondary or primary condensate management.

This drain pan is intended for use with air handlers or furnaces with evaporator coils where a full-perimeter catch pan is required. Its 60 x 32 inch footprint accommodates large horizontal coil assemblies. The 26-gauge galvanized steel construction resists corrosion in high-humidity environments typical of evaporator coil compartments. The integrated 3/4-inch copper male adapter allows the installer to connect directly to standard condensate drain piping without additional fittings at the drain port.

Key Features

• 26-gauge galvanized steel construction for corrosion resistance in condensate environments
• Large 60 x 32 inch footprint accommodates full-size horizontal air handler and coil assemblies
• 2.5-inch pan depth provides adequate condensate containment capacity
• Single 3/4-inch copper male adapter drain connection for direct piping tie-in
• Manufactured in the USA
• Silver finish; suitable for use with air handlers or furnaces with coils

Compatibility

Designed for use with air handlers or furnaces with evaporator coils requiring a 60 x 32 inch primary or secondary condensate drain pan with a 3/4-inch drain connection.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the air handler or furnace before positioning or connecting the drain pan. Ensure the pan is level to promote proper condensate flow toward the drain port, and verify that the condensate drain line meets local plumbing and mechanical code requirements. Do not overtighten the drain connection fitting; hand-tighten and secure with appropriate tools to avoid cracking the adapter.

Technical Specifications

• Width: 60 inches
• Length: 34 inches
• Height: 2.5 inches
• Weight: 13.6 pounds
• Gauge: 26 GA
• Material: Galvanized Steel
• Color: Silver
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• For Use With: Air Handler or Furnace with Coil
• Country of Origin: USA

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: DP-60X32-26CF
