Mm Manufacturing DP-60X30-26PF Drain Pan 60x30 in 26GA

Product Description

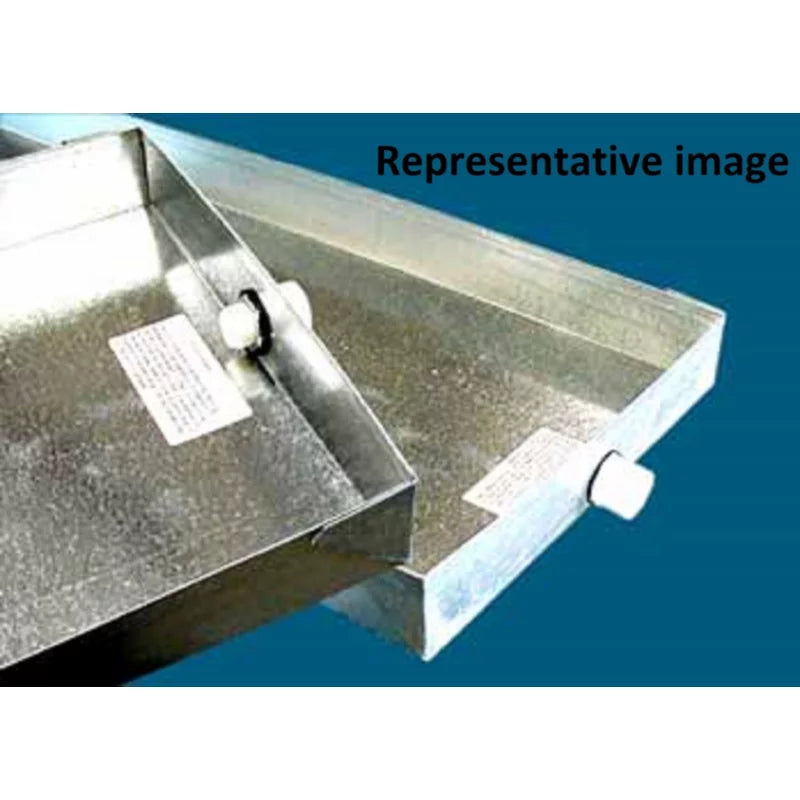

The MM Manufacturing DP-60X30-26PF is a galvanized steel condensate drain pan designed to catch and direct overflow moisture from air handlers and furnaces with coils. Built from 26-gauge galvanized steel, the pan measures 60 inches wide by 30 inches long and stands 2.5 inches deep with hemmed edges for added rigidity and safe handling. A single 3/4-inch drain connection allows for direct piping to a condensate drain line. This pan is a standard component in residential and light commercial HVAC installations where secondary or primary overflow protection is required under cooling coil assemblies.

This drain pan is intended for use beneath air handlers or furnaces equipped with evaporator coils. It fits installations where a full-size secondary drain pan is required to comply with local mechanical codes or manufacturer requirements. The 60-inch by 30-inch footprint accommodates larger residential and commercial air handler units. HVAC technicians typically install this pan during new equipment commissioning or as a replacement when an existing pan has corroded or failed. Its galvanized construction provides corrosion resistance in the humid conditions typical around cooling coil assemblies.

Key Features

• 26-gauge galvanized steel construction provides corrosion resistance in high-humidity HVAC environments
• 2.5-inch depth with hemmed edges adds structural rigidity and reduces sharp-edge hazards during installation
• Single 3/4-inch drain connection for direct tie-in to condensate drain piping
• 60 x 30-inch footprint sized for larger residential and light commercial air handler installations
• Manufactured in the USA

Compatibility

Designed for use with air handlers or furnaces with evaporator coils requiring a primary or secondary condensate drain pan. Verify unit footprint dimensions before installation to confirm fit.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Disconnect power to the air handler or furnace before positioning the drain pan and making any drain line connections. The 3/4-inch drain connection should be piped to an approved condensate disposal point per local mechanical code requirements. Ensure the pan is level to allow proper condensate flow toward the drain outlet and prevent standing water accumulation.

Technical Specifications

• Length: 30 inches
• Width: 60 inches
• Depth: 2.5 inches
• Weight: 12.8 pounds
• Gauge: 26 GA
• Material: Galvanized Steel
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• Color: Silver
• Country of Origin: USA

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: DP-60X30-26PF
