Mm Manufacturing DP-36X36-26PF Drain Pan 36x36 26GA

Product Description

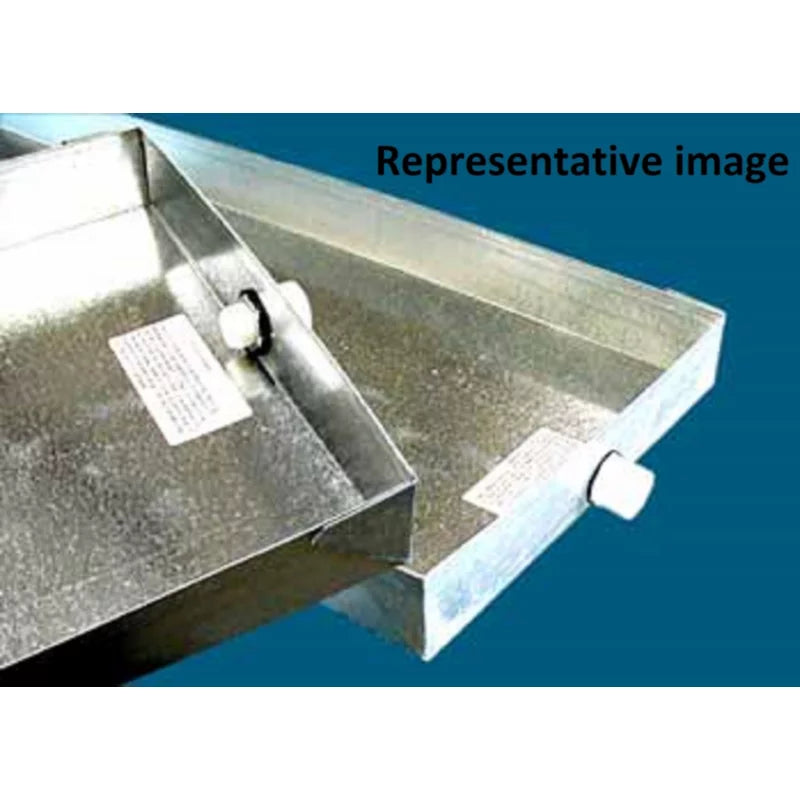

The MM Manufacturing DP-36X36-26PF is a 36-inch by 36-inch condensate drain pan fabricated from 26 GA galvanized steel with a PVC lining. It measures 2.5 inches deep with hemmed edges for structural rigidity and leak containment. At 9.5 pounds, it is built for stationary installation beneath air handlers and furnace coil assemblies where secondary condensate collection is required. A single 3/4-inch drain connection handles condensate discharge. The galvanized steel construction resists corrosion in humid mechanical environments, and the PVC coating adds a secondary barrier against standing water degradation. This pan is manufactured in the USA.

This drain pan is intended for use under air handlers or furnaces fitted with evaporator coils in residential and light commercial applications. It is typically positioned in an attic, mechanical closet, or utility space as a secondary safety pan to catch overflow condensate and protect the structure below. The 36-inch by 36-inch footprint accommodates a wide range of standard air handler cabinet sizes. Licensed HVAC technicians install this pan as part of a new system installation or as a replacement when an existing pan shows corrosion, cracks, or deformation.

Key Features

• 26 GA galvanized steel construction with PVC lining for corrosion resistance and longevity
• 36 inches x 36 inches footprint accommodates standard residential and light commercial air handler sizes
• 2.5-inch depth provides adequate capacity to contain overflow condensate
• Hemmed edges add rigidity and reduce the risk of flex or deformation during installation
• Single 3/4-inch drain connection for straightforward condensate line hookup
• Made in the USA

Compatibility

Designed for use with air handlers or furnaces with evaporator coils requiring a 36-inch by 36-inch secondary drain pan.

Installation Notes

Installation is performed by a licensed HVAC technician. Power down the air handler or furnace at the disconnect and breaker before positioning the pan. Ensure the pan is level so condensate drains fully to the 3/4-inch connection without pooling. Connect the drain line per local mechanical codes and verify no standing water remains after a test run.

Technical Specifications

• Gauge: 26 GA
• Material: Galvanized Steel with PVC
• Length: 37 inches
• Width: 36 inches
• Depth: 2.5 inches
• Weight: 9.5 pounds
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• Color: Silver
• Country of Origin: USA

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: DP-36X36-26PF
