Mm Manufacturing DP-32X60-26CF Drain Pan 32x60 in Galvanized

Product Description

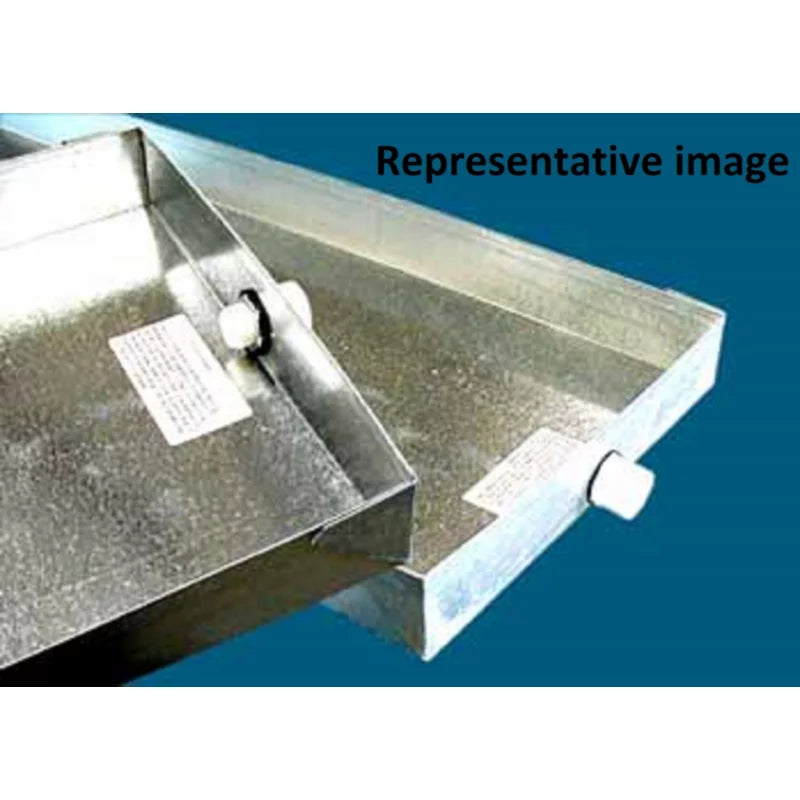

The MM Manufacturing DP-32X60-26CF is a galvanized steel drain pan designed to collect condensate beneath air handlers and furnaces with coils. Built from 26-gauge galvanized steel with a silver finish, this pan measures 32 inches wide by 60 inches long by 2.5 inches deep, providing reliable overflow protection in residential and light commercial HVAC installations. A single 3/4-inch copper male adapter drain connection is included for direct piping to a condensate drain line. Licensed HVAC technicians install this pan as a primary or secondary drain pan where code or equipment clearances require it.

This drain pan is intended for use beneath air handlers or furnaces equipped with evaporator coils, where condensate management is required. The 26-gauge galvanized construction resists corrosion in humid equipment room environments. The 32-inch by 60-inch footprint accommodates a range of full-size residential and light commercial coil configurations. Its 2.5-inch depth provides adequate condensate containment volume during high-load cooling cycles or in the event of a primary drain blockage.

Key Features

• 26-gauge galvanized steel construction for corrosion resistance in condensate environments
• 32 inches wide by 60 inches long by 2.5 inches deep — accommodates large residential and light commercial coil footprints
• Single 3/4-inch copper male adapter drain connection for standard condensate piping
• Manufactured in the USA
• Silver finish; suitable as a primary or secondary overflow drain pan

Compatibility

Designed for use with air handlers or furnaces equipped with an evaporator coil where a 32-inch by 60-inch drain pan footprint is required.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and equipment manufacturer requirements. Disconnect power to the air handler or furnace before beginning work. Ensure the pan is level so condensate drains properly toward the 3/4-inch outlet, and verify that the drain line is clear and pitched correctly before returning the system to service. Do not overtighten fittings on the copper male adapter to avoid thread damage.

Technical Specifications

• Length: 62 inches
• Width: 32 inches
• Height (Depth): 2.5 inches
• Weight: 14.1 pounds
• Material: Galvanized Steel
• Gauge: 26 GA
• Color: Silver
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• For Use With: Air Handler or Furnace with Coil
• Country of Origin: USA

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: DP-32X60-26CF
