Mm Manufacturing DP-32X32-26PF Drain Pan 32x32 in 26GA

Product Description

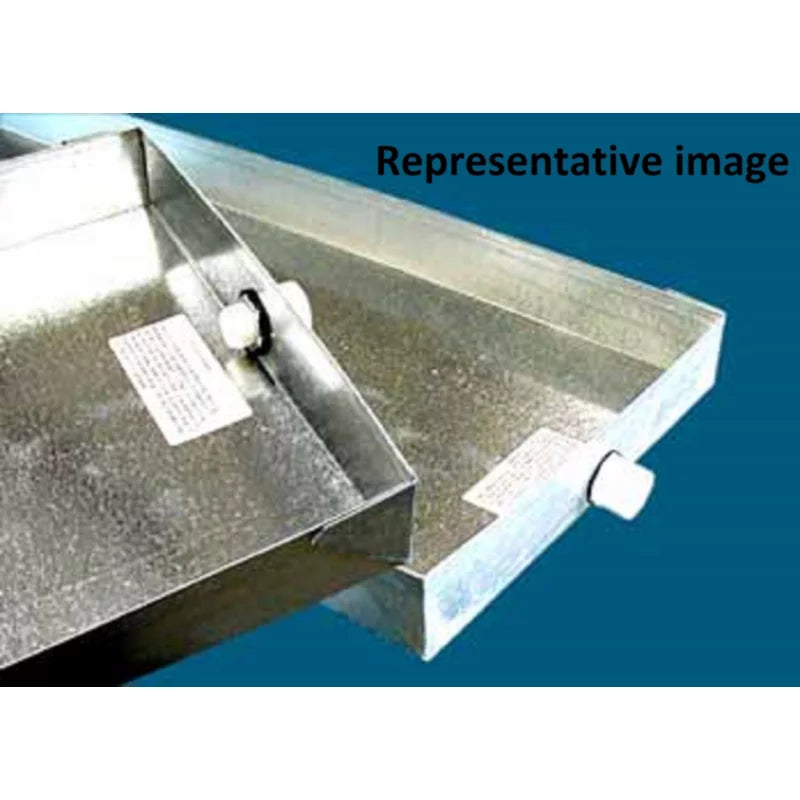

The MM Manufacturing DP-32X32-26PF is a 26-gauge galvanized steel drain pan engineered to catch condensate beneath air handlers and furnaces with coils. Measuring 32 inches wide by 32 inches long and 2.5 inches deep, it provides a substantial reservoir with hemmed edges that resist flex and sharpen the pan's structural integrity. A single 3/4-inch drain connection allows direct tie-in to a condensate drain line. Licensed HVAC technicians and plumbers install this pan as a primary or secondary drip containment solution in residential and light commercial applications.

This drain pan is sized for use with air handlers or furnaces equipped with evaporator coils where a full-footprint condensate collection surface is required. The 32-inch by 32-inch footprint accommodates larger cabinet-style air handling equipment. The 26-gauge galvanized steel construction provides corrosion resistance in the consistently humid environment directly below a cooling coil. It is manufactured in the USA and ships as a single unit.

Key Features

• 26-gauge galvanized steel construction for corrosion resistance in high-moisture environments
• 32 inches by 32 inches footprint for full coverage under large air handler or furnace-with-coil cabinets
• 2.5-inch depth with hemmed edges for structural rigidity and increased condensate capacity
• Single 3/4-inch drain connection for direct condensate line tie-in
• Manufactured in the USA

Compatibility

Designed for use with air handlers or furnaces with evaporator coils requiring a 32-inch by 32-inch drain pan footprint.

Installation Notes

Installation is typically performed by a licensed HVAC technician or plumber. Shut down the air handling system and disconnect power before repositioning or replacing the drain pan. Ensure the 3/4-inch drain connection is properly piped to a suitable condensate drain or floor drain per local mechanical code requirements. Confirm the pan sits level to prevent standing water from bypassing the drain outlet.

Technical Specifications

• Length: 33 inches
• Width: 32 inches
• Depth: 2.5 inches
• Weight: 8 pounds
• Material: Galvanized Steel
• Gauge: 26 GA
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• Color: Silver
• Country of Origin: USA

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: DP-32X32-26PF
