Mm Manufacturing DP-32X32-26CF Drain Pan 32x32 in 26GA

Product Description

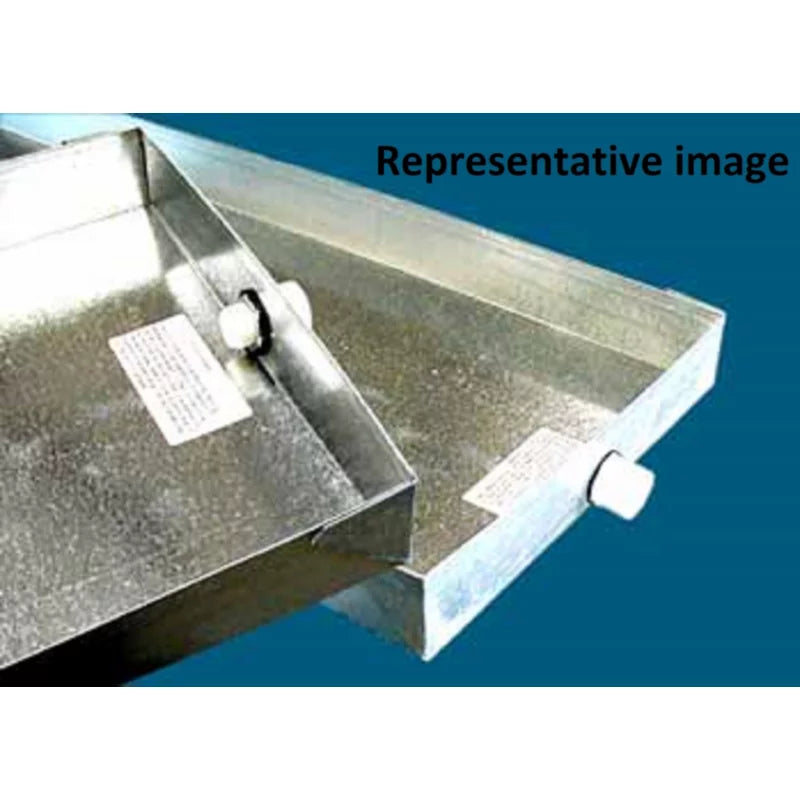

The MM Manufacturing DP-32X32-26CF is a 32 x 32 inch galvanized steel drain pan designed to collect condensate beneath air handlers and furnaces with coils. Constructed from 26-gauge galvanized steel with a silver finish, this pan provides durable corrosion resistance in wet service environments. It ships ready to install at 8.2 pounds and measures 34 inches in length, 32 inches in width, and 2.5 inches in height. A single 3/4-inch copper male adapter drain connection is included, allowing direct connection to standard condensate drain lines. HVAC technicians and mechanical contractors install this pan as part of new equipment installations or as a replacement on existing systems.

This drain pan is suited for residential and light commercial applications where an air handler or furnace with an evaporator coil requires secondary condensate containment. The 32 x 32 inch footprint accommodates common coil cabinet sizes in that dimensional range. The 26-gauge galvanized construction meets typical mechanical room and attic installation requirements where moisture exposure is a factor. The included copper male adapter simplifies connection to PVC or copper condensate drain piping without additional fittings in most installations.

Key Features

• 26-gauge galvanized steel construction for corrosion resistance in condensate service
• Single 3/4-inch copper male adapter drain connection included
• 32 x 32 inch pan footprint for air handler and furnace-with-coil installations
• 2.5-inch pan depth provides adequate condensate containment capacity
• Domestic manufacture — country of origin USA
• Lightweight at 8.2 pounds for single-technician handling during install

Compatibility

Designed for use with air handlers or furnaces equipped with an evaporator coil requiring a condensate drain pan in the 32 x 32 inch size class.

Installation Notes

Installation is performed by a licensed HVAC technician or mechanical contractor. De-energize the air handler or furnace and shut off the condensate pump, if present, before positioning the pan. Ensure the pan sits level to allow proper drainage to the 3/4-inch outlet; improper slope can cause standing water and overflow. Condensate drain piping and secondary drain provisions should comply with applicable mechanical codes including the International Mechanical Code and local amendments.

Technical Specifications

• Length: 34 inches
• Width: 32 inches
• Height (Depth): 2.5 inches
• Weight: 8.2 pounds
• Material: Galvanized Steel
• Gauge: 26 GA
• Color/Finish: Silver
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch copper male adapter
• For Use With: Air Handler or Furnace with Coil
• Country of Origin: USA

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: DP-32X32-26CF
