Mm Manufacturing DP-30X60-26PF Drain Pan 30x60 in 26GA

Product Description

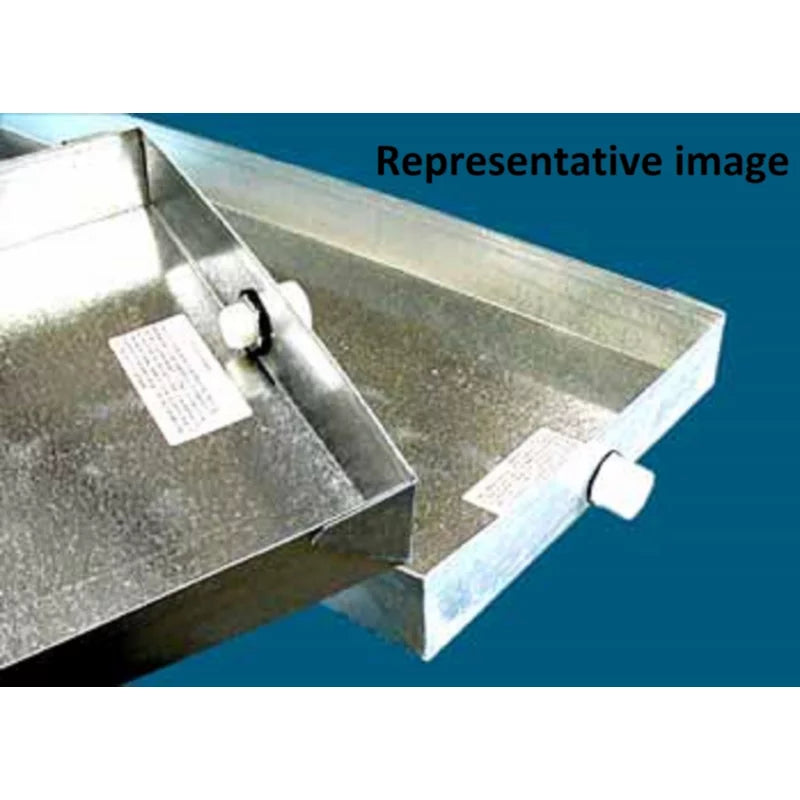

The MM Manufacturing DP-30X60-26PF is a 26-gauge galvanized steel condensate drain pan designed to collect and direct condensate drainage from air handlers and furnaces with evaporator coils. Measuring 30 inches wide by 60 inches long and 2.5 inches deep, it provides a large-capacity collection area suited to full-size residential and light commercial HVAC installations. Hemmed edges add structural rigidity and reduce the risk of cuts during handling and installation. A single 3/4-inch drain connection allows direct tie-in to a condensate drain line. At 12.8 pounds, the pan is substantial enough to resist deformation under load while remaining manageable for a single technician.

This drain pan is intended for use beneath air handlers or furnaces with evaporator coils in applications where a secondary or primary condensate containment solution is required. The 30-inch by 60-inch footprint accommodates larger coil cabinets and split-system air handler configurations common in residential new construction and retrofit installations. The galvanized steel construction resists corrosion in the humid environment typical of an active condensate collection zone. The included PVC drain fitting integrates directly with standard 3/4-inch condensate drain piping.

Key Features

• 26-gauge galvanized steel construction resists corrosion in high-humidity condensate environments
• 30 x 60-inch footprint accommodates full-size air handler and furnace-with-coil installations
• 2.5-inch depth provides generous condensate holding capacity
• Hemmed edges improve structural rigidity and reduce handling hazards
• Single 3/4-inch PVC drain connection for direct tie-in to standard condensate drain lines
• Manufactured in the USA

Compatibility

Designed for use with air handlers or furnaces with evaporator coils requiring a 30-inch by 60-inch primary or secondary drain pan.

Installation Notes

Installation is typically performed by a licensed HVAC technician as part of a new equipment set or coil replacement. Power to the air handler or furnace must be disconnected at the disconnect switch or breaker before positioning the pan. Verify the pan is level after placement to ensure proper condensate flow toward the drain connection. Condensate drain piping should be installed in accordance with local mechanical codes and the equipment manufacturer's requirements.

Technical Specifications

• Gauge: 26 GA
• Material: Galvanized Steel
• Length: 60 inches
• Width: 30 inches
• Depth: 2.5 inches
• Weight: 12.8 pounds
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• Color: Silver
• Country of Origin: USA

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: DP-30X60-26PF
