Mm Manufacturing DP-16X44-26PF Drain Pan 16x44 in

Product Description

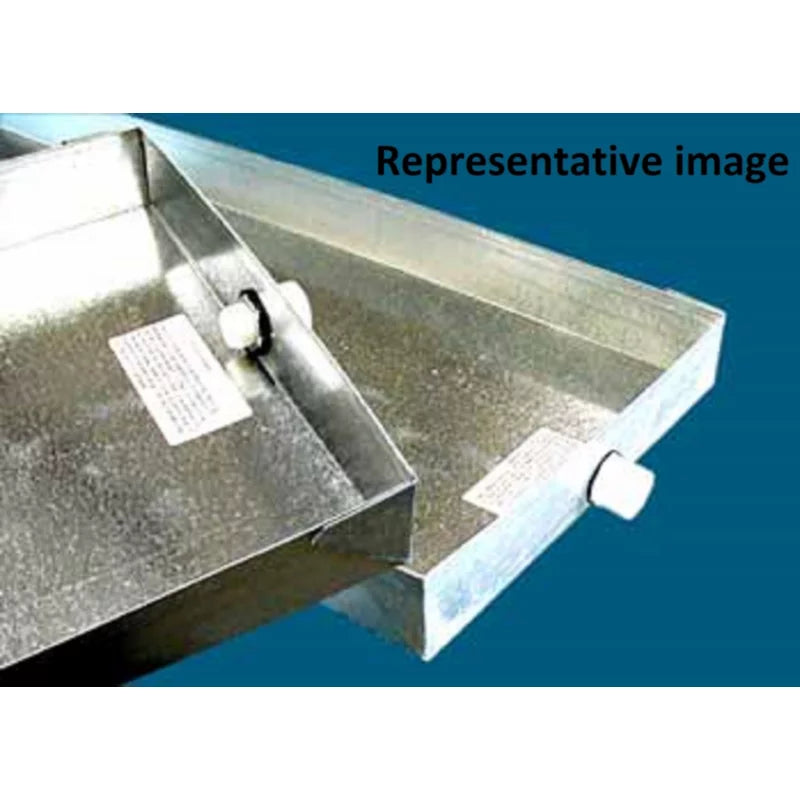

The MM Manufacturing DP-16X44-26PF is a galvanized steel drain pan designed to collect condensate beneath air handlers and furnaces with evaporator coils. Built from 28-gauge galvanized steel with a silver finish, it measures 16 inches wide by 44 inches long and stands 2.5 inches deep. Hemmed edges reinforce the perimeter and help prevent warping over time. A single 3/4-inch drain connection allows condensate to be routed to a floor drain or condensate pump. This pan is manufactured in the USA and is intended for installation by licensed HVAC technicians during equipment setup or replacement service.

This drain pan is suited for residential and light commercial applications where a secondary or primary catch pan is required under an air handler or coil-equipped furnace. The 16-inch by 44-inch footprint accommodates a range of horizontal and vertical equipment configurations. At 2.5 inches deep, the pan provides meaningful condensate retention volume in the event of a primary drain blockage, helping to prevent water damage to ceilings, floors, and adjacent structures. The galvanized steel construction resists corrosion in the humid environments typical of condensate service.

Key Features

• 28-gauge galvanized steel construction resists corrosion in high-humidity condensate environments
• 2.5-inch depth provides retention volume during primary drain blockage events
• Hemmed edges add structural rigidity and reduce sharp-edge hazards during handling
• Single 3/4-inch drain connection for standard condensate line or pump hookup
• Manufactured in the USA
• 16 inches x 44 inches footprint fits a wide range of air handler and coil configurations

Compatibility

Designed for use with air handlers or furnaces equipped with an evaporator coil where a primary or secondary condensate drain pan is required.

Installation Notes

Installation should be performed by a licensed HVAC technician. Shut down and de-energize the air handler or furnace before removing or repositioning any drain pan. Confirm the drain connection is pitched correctly toward the outlet and that the condensate line or pump connection is secure before restoring power. Follow local mechanical codes for secondary drain pan placement and overflow protection requirements.

Technical Specifications

• Length: 44 inches
• Width: 16 inches
• Depth: 2.5 inches
• Gauge: 28 GA
• Material: Galvanized Steel
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inch
• Color: Silver
• Weight: 4.65 pounds
• Country of Origin: USA

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: DP-16X44-26PF
