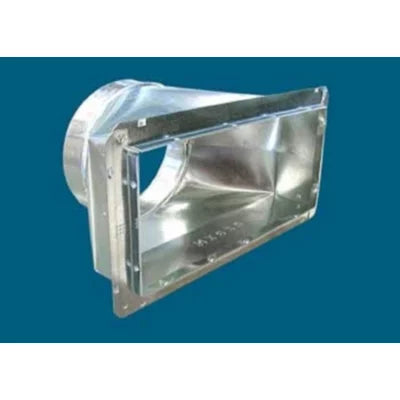

Mm Manufacturing 601-12X12X10 Register Box 12x12x10 in

Product Description

The MM Manufacturing 601-12X12X10 is a 601 series register box with a snap-rail flange, designed for use in residential and light commercial forced-air HVAC distribution systems. This box provides a transition point between round supply duct and a ceiling or floor register opening. The snap-rail flange allows registers to seat and lock securely without additional fasteners. At 2.4 pounds, it is lightweight enough for single-technician overhead installation. The 12 x 12 x 10 inch nominal size fits standard register openings in typical residential duct layouts.

This register box is used where a round duct run terminates at a wall, ceiling, or floor diffuser location. It accepts round duct from 4 inches through 9 inches in diameter and is available in nine nominal sizes to match a range of supply layouts. HVAC installers and sheet metal contractors use this box during new construction and retrofit duct work where a clean, flanged register termination is required.

Key Features

• Snap-rail flange design seats standard registers without additional fasteners
• Compatible with round duct connections from 4 inches through 9 inches in diameter
• Nominal 12 x 12 x 10 inch size suits standard residential register openings
• Lightweight at 2.4 pounds, supporting single-technician installation
• Part of the 601 series, available in nine sizes for varied duct layouts

Compatibility

Designed for connection to round duct ranging from 4 inches through 9 inches in diameter. The 601 series is available in nine different sizes to fit a range of standard register opening dimensions in residential and light commercial forced-air systems.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the air handling system before attaching or modifying duct connections. Secure the box to framing or backing material before hanging the duct to prevent movement after the register is seated. Follow local mechanical codes and SMACNA standards for sheet metal duct fabrication and support spacing.

Technical Specifications

• Nominal Size: 12 x 12 x 10 inches
• Overall Length: 14.25 inches
• Overall Width: 14.25 inches
• Overall Height: 10.5 inches
• Weight: 2.4 pounds
• Round Duct Connection Range: 4 inches to 9 inches diameter
• Flange Type: Snap-Rail

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: 601-12X12X10
