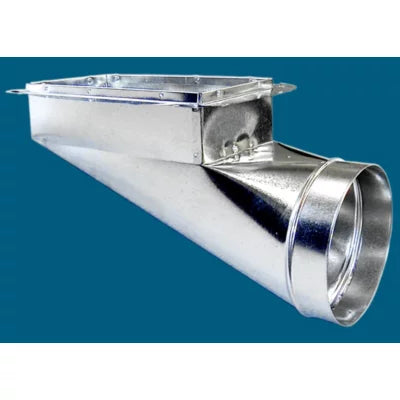

Mm Manufacturing 202RF-12X6X7 Flanged Register Boot

Product Description

The MM Manufacturing 202RF-12X6X7 is a center-end flanged register boot designed to transition from round duct to a rectangular floor, wall, or ceiling register opening. Weighing 1.6 pounds, this boot is part of the 202RF series, which is manufactured in eight popular sizes to serve a range of residential and light-commercial ducted HVAC systems. The flanged design provides a clean, secure connection point for the register face and helps seal the boot to the finished surface. Licensed HVAC technicians and sheet metal installers are the primary trades that work with this fitting.

This register boot is suited for residential and light-commercial forced-air systems where a center-end takeoff configuration is required. The 12 x 6 x 7 inch boot connects duct runs to supply registers in floor, sidewall, or ceiling applications. It is part of a series compatible with 5-inch, 6-inch, 7-inch, 8-inch, and 9-inch round duct connections, giving installers flexibility across multiple system layouts.

Key Features

• Center-end configuration allows round duct to enter from the end and discharge through the face
• Integrated flange provides a flush mounting surface for register grilles
• Available as part of a series compatible with 5-inch through 9-inch round duct
• Lightweight at 1.6 pounds for easier handling during overhead or floor installation
• Part of the 202RF series offered in eight popular sizes for job-site flexibility

Compatibility

Compatible with 5-inch, 6-inch, 7-inch, 8-inch, and 9-inch round duct as part of the MM Manufacturing 202RF series. Designed as an OEM-style sheet metal register boot for residential and light-commercial forced-air HVAC duct systems.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. Shut down the air handling system before cutting into existing ductwork or securing the boot in place. Seal all connections with listed duct sealant or approved metal tape per local mechanical code requirements. Secure the boot to framing or the duct run before attaching the register grille to the flange.

Technical Specifications

• Boot Size: 12 x 6 x 7 inches
• Installed Length: 19 inches
• Installed Width: 8.25 inches
• Installed Height: 10 inches
• Weight: 1.6 pounds
• Configuration: Center-End Flanged
• Compatible Round Duct Sizes: 5, 6, 7, 8, and 9 inches

Standard Information

• Brand: MM Manufacturing
• Manufacturer Part Number: 202RF-12X6X7
