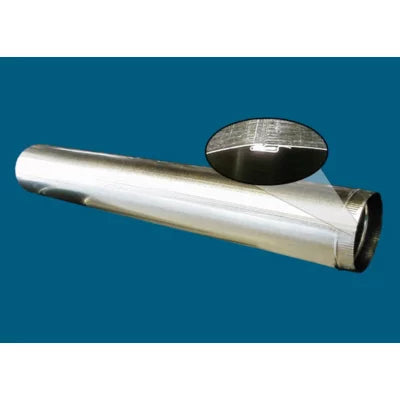

Mm Manufacturing 100-6X5 Round Snaplock Duct Pipe 6x60 in

Product Description

The MM MANUFACTURING 100-6X5 is a 30-gauge G30 galvanized round snaplock duct pipe designed for residential and light commercial HVAC duct distribution systems. Measuring 6 inches in diameter and 60 inches in length, this pipe provides a rigid, pre-formed airflow path suitable for supply and return trunk line branch runs. The snaplock seam allows the pipe to be assembled without additional fasteners at the joint, speeding up installation on the job. At 4.05 pounds, it is light enough for single-technician handling on overhead or in-wall runs. HVAC technicians and sheet metal installers are the primary trades working with this product.

This duct pipe is used in forced-air heating and cooling distribution systems where round galvanized steel duct is specified. The 6-inch diameter suits common branch runs from trunk lines serving individual room diffusers or registers. The 60-inch length reduces the number of joints needed on longer straight runs, helping minimize leakage points. Availability in this diameter spans 24-inch, 36-inch, and 60-inch lengths depending on the specific SKU, giving installers flexibility to match the segment length to the run layout.

Key Features

• 30-gauge G30 galvanized steel construction resists corrosion in conditioned-air environments
• Snaplock seam allows field assembly without separate fasteners at the longitudinal joint
• 6-inch diameter fits standard branch-run fittings and collars
• 60-inch length reduces joint count on straight duct runs
• Lightweight at 4.05 pounds for easier overhead and in-wall installation

Compatibility

Designed as an OEM-style replacement and new-installation component for residential and light commercial forced-air duct systems that specify 6-inch round galvanized snaplock duct pipe.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal workers in accordance with SMACNA duct construction standards and local mechanical codes. Power down the air handling equipment before making connections to an existing duct system. Secure joints with sheet metal screws and seal all seams and connections with listed duct sealant or metal-backed tape per code requirements. Do not use standard cloth-backed tape as a primary duct sealant.

Technical Specifications

• Gauge: 30 GA
• Galvanized Coating: G30
• Diameter: 6 inches
• Length: 60 inches
• Weight: 4.05 pounds
• Material: Galvanized Steel
• Seam Type: Snaplock
• Shape: Round

Standard Information

• Brand: MM MANUFACTURING
• Manufacturer Part Number: 100-6X5
