Mm Manufacturing 100-4X5 Round Snaplock Duct Pipe 4x60 in

Product Description

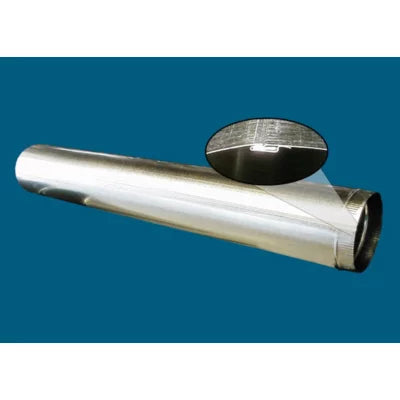

The MM MANUFACTURING 100-4X5 is a 30-gauge G30 galvanized round snaplock duct pipe designed for air distribution in residential and light commercial HVAC systems. Measuring 4 inches in diameter and 60 inches in length, this pipe provides a rigid, low-profile solution for connecting supply and return air runs. The snaplock seam allows for fast field assembly without requiring additional fasteners along the longitudinal joint. Galvanized steel construction resists corrosion over the long service life typical of in-wall or in-plenum duct installations. HVAC installers and sheet metal contractors use this pipe as a core component in forced-air duct systems.

This duct pipe is suited for new construction and retrofit applications in residential forced-air heating and cooling systems, as well as light commercial ventilation layouts. The 4-inch diameter is a common size for individual room supply branches, making it a frequent pick on residential trunk-and-branch jobs. It can also be used in exhaust and makeup-air runs where the diameter and gauge meet local code requirements. The product line is available in diameters from 3 inches to 24 inches and in lengths of 24 inches, 36 inches, and 60 inches, depending on diameter, allowing contractors to select the best fit for a given run.

Key Features

• 30-gauge G30 galvanized steel construction for corrosion resistance in duct system environments
• Snaplock seam design speeds up field assembly along the longitudinal joint
• 4-inch diameter suits common residential supply branch runs
• 60-inch length reduces the number of joints required in longer duct runs
• Available in a wide range of diameters (3 inches to 24 inches) and multiple length options for job flexibility

Compatibility

Designed as an OEM-style component for use in residential and light commercial forced-air HVAC duct systems requiring 4-inch round galvanized snaplock pipe. Compatible with standard 4-inch round duct fittings, collars, and connectors.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal contractors in accordance with SMACNA standards and applicable local mechanical codes. Power down the air handling unit and close the system dampers before cutting into or modifying an existing duct run. Secure all joints with sheet metal screws and seal with listed duct mastic or UL 181-listed tape per local code requirements. Never use standard cloth duct tape as a primary sealant on metal duct joints.

Technical Specifications

• Diameter: 4 inches
• Length: 60 inches
• Gauge: 30 GA
• Finish: G30 Galvanized
• Material: Galvanized Steel
• Weight: 2.75 pounds

Standard Information

• Brand: MM MANUFACTURING
• Manufacturer Part Number: 100-4X5
