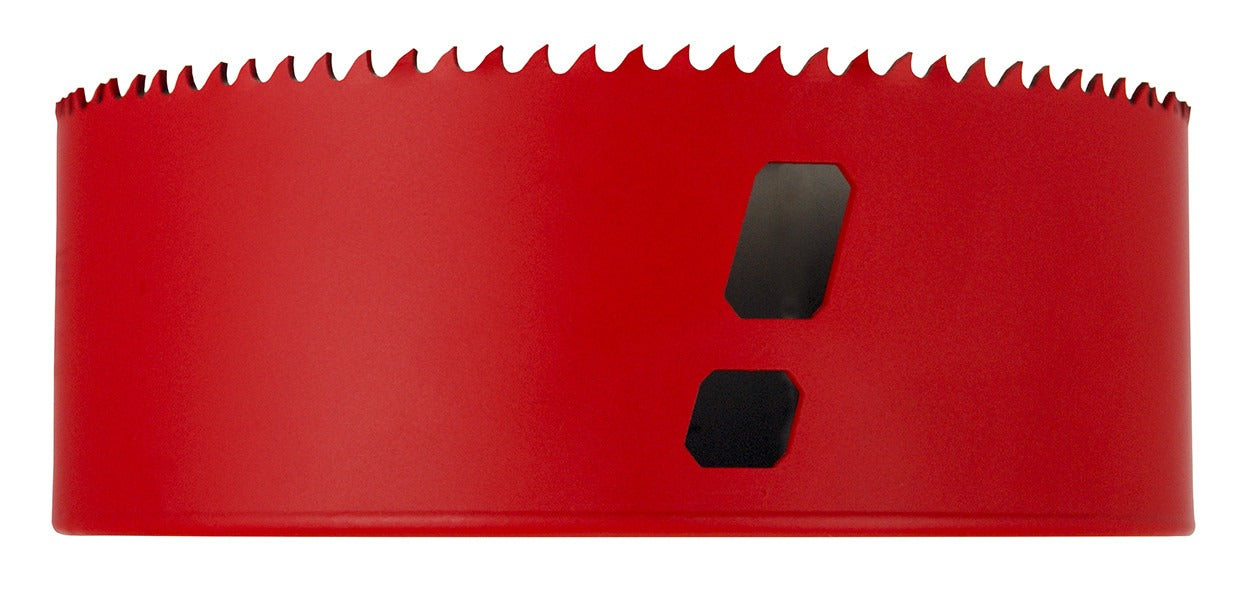

Mk Morse mhs96 Bi-metal Hole Saw 6 Inches No Arbor

Product Description

The MK MORSE mhs96 is a 6-inch (152mm) Advanced Bi-Metal Hole Saw designed for heavy-duty cutting in metal, wood, and composite materials. Built with a Premium M42 High Speed Steel cutting edge, it delivers extended tool life rated at twice the service life of the previous Morse AV Hole Saw. The .050-inch side wall resists collapsing under load, and the redesigned cap reduces runout and vibration during operation. A new external coating on the side wall reduces friction for more efficient cutting strokes. This saw ships without an arbor and is intended for professional tradespeople who supply their own arbor setup.

The mhs96 fits residential and commercial applications where a 6-inch diameter hole is required, such as HVAC duct penetrations, pipe rough-ins, electrical conduit openings, and structural framing cuts. The 1-15/16-inch cutting depth accommodates standard framing lumber and light steel. Side slots provide added leverage for fast slug removal without prying tools, reducing downtime between cuts on production job sites.

Key Features

• 6-inch (152mm) cutting diameter with 1-15/16-inch cutting depth
• Premium M42 High Speed Steel cutting edge for extended wear resistance
• Heavy-duty .050-inch side wall prevents collapsing under load
• New side slots provide leverage for fast, easy slug removal
• Redesigned cap reduces runout and vibration
• External coating on side wall lowers friction for efficient cutting
• Made in the USA with patent-pending tooth set design

Compatibility

Designed as an OEM-style replacement and upgrade option for standard bi-metal hole saw arbors accepting 6-inch diameter hole saws. No arbor included; verify arbor thread compatibility before installation.

Installation Notes

Installation is performed by electricians, HVAC technicians, plumbers, and general contractors using a compatible hole saw arbor and a heavy-duty drill or drill press. Ensure the arbor is fully seated and the locking mechanism is secured before operation. Always wear appropriate eye and hand protection and confirm the work surface is clamped or secured to prevent movement during the cut. Disconnect power to the drill before changing or inspecting the saw.

Technical Specifications

• Cutting Diameter: 6 inches (152mm)
• Cutting Depth: 1-15/16 inches
• Side Wall Thickness: .050 inches
• Cutting Edge Material: M42 High Speed Steel
• Arbor Included: No
• Country of Origin: USA

Standard Information

• Brand: MK MORSE
• Manufacturer Part Number: mhs96
