Mk Diamond 155530 Pivot Shaft 12.88 in 101pro Tile Saw

Product Description

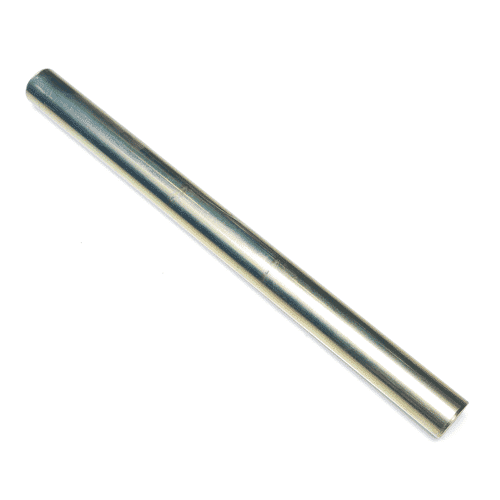

The MK DIAMOND 155530 is a pivot shaft designed as a direct replacement component for the MK Diamond 101Pro tile saw. The pivot shaft serves as a critical mechanical linkage in the saw's cutting head assembly, allowing controlled angular movement during tile cutting operations. At 12.88 inches in length, this shaft maintains the precise geometry required for accurate, repeatable cuts. It is a factory-specification part intended for installation by tile saw service technicians or experienced tile contractors performing equipment maintenance.

This pivot shaft is a service and repair component for the MK Diamond 101Pro wet tile saw platform. The 101Pro is a widely used professional-grade tile saw found in residential and commercial tile installation work. Replacing a worn or damaged pivot shaft restores proper cutting-head travel and helps maintain cut accuracy. This part is suited for field service or shop-level repair of the 101Pro saw.

Key Features

• 12.88-inch pivot shaft length matches OEM specification for the 101Pro
• Direct replacement component — no modification required for installation
• Restores proper cutting-head pivot travel and alignment
• Designed for professional service and field repair use

Compatibility

Designed for use with the MK Diamond 101Pro tile saw as a direct OEM-specification replacement pivot shaft.

Installation Notes

Pivot shaft replacement on wet tile saws should be performed by a qualified service technician familiar with the saw's mechanical assembly. Disconnect and lock out all power to the saw before beginning disassembly. Refer to the MK Diamond 101Pro service documentation for the correct disassembly sequence and fastener specifications. Ensure the cutting head is fully supported during shaft removal and reinstallation to avoid damage to adjacent components.

Technical Specifications

• Shaft Length: 12.88 inches
• Type: Pivot Shaft
• Application: 101Pro Tile Saw

Standard Information

• Brand: MK DIAMOND
• Manufacturer Part Number: 155530
